Inspection Procedure

  1. INSPECT FUSE (RR DOOR)
    1. Remove the RR DOOR fuse from the instrument panel junction block.
    2. Measure the resistance of the fuse.

    Standard resistance:

    Below 1 Ω

    NG: REPLACE FUSE (RR DOOR)

    OK: GO TO NEXT STEP

  2. CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH) (POWER SOURCE)
    Fig 1: Identifying I1 Switch Connector Terminals
    G05586470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 11 switch connector.
    2. Measure the voltage of the wire harness side connector.

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    11-3 (B) - Body ground Ignition switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: GO TO NEXT STEP

  3. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH)
    1. Remove the power window regulator switch.
    2. Measure the resistance of the switch when the switch is operated.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Switch Condition Specified Condition
    1 (D) - 2 (SD)
    3 (B) - 4 (U)    		 UP Below 1 Ω
    1 (D) - 2 (SD)
    4 (U)-5 (SU)    		 OFF Below 1 Ω
    1 (D) - 3 (B)
    4 (U) - 5 (SU)    		 DOWN Below 1 Ω
    Fig 2: Identifying Power Window Regulator Switch Connector Terminals
    G05586471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH)

    OK: GO TO NEXT STEP

  4. CHECK WIRE HARNESS (REGULATOR SWITCH - REGULATOR MOTOR)

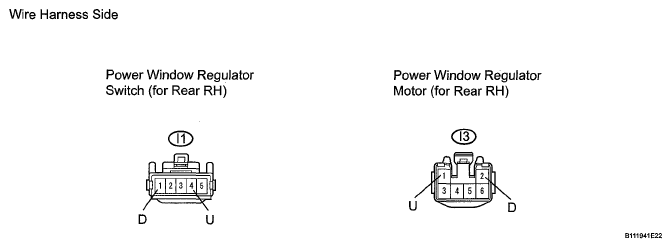

    Fig 3: Identifying Regulator Switch And Regulator Motor Connector Terminals
    G05586472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 11 switch connector.
    2. Disconnect the 13 motor connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    11-4 (U) - 13-1 (U) Below 1 Ω
    11-1 (D) - 13-2 (D) Below 1 Ω
    11-4 (U) or 13-1 (U) - Body ground 10 kΩ or higher
    11-1 (D) or I3-2 (D) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: GO TO NEXT STEP

  5. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH)
    Fig 4: Checking Power Window Regulator Motor Assembly
    G04833769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the power window regulator motor.
    2. Apply the battery voltage to connector terminals 1 and 2.
    3. Check that the motor gear rotates smoothly as follows.

    OK

    MEASUREMENT SPECIFIED CONDITION

    Measurement Condition Specified Condition
    Battery positive (+) → 1
    Battery negative (-) → 2    		 Motor gear rotates counterclockwise
    Battery positive (+) → 2
    Battery negative (-) → 1    		 Motor gear rotates clockwise

    NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH)

    OK: GO TO NEXT STEP

  6. CHECK WIRE HARNESS (MASTER SWITCH - REGULATOR SWITCH)

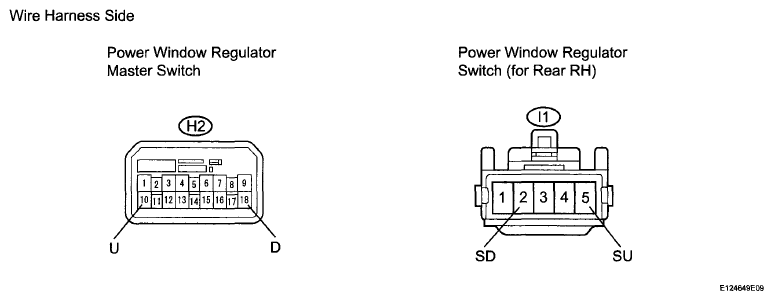

    Fig 5: Identifying Master Switch And Regulator Switch Connector Terminals
    G06000586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the H2 switch connector.
    2. Disconnect the 11 switch connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    H2-1O (U) - I1-5 (SU) Below 1 Ω
    H2-18 (D) - I1-2 (SD) Below 1 Ω
    H2-10 (U) or 11-5 (SU) - Body ground 10 kΩ or higher
    H2-18 (D) or 11-2 (SD) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
