Terminals Of Ecu

  1. CHECK POWER WINDOW REGULATOR MOTOR ASSEMBLY (ON DRIVER DOOR) (POWER WINDOW ECU)

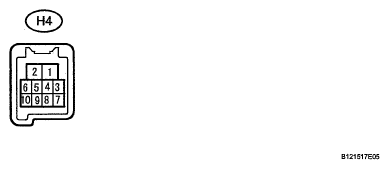

    Fig 1: Identifying H4 Motor Connector
    G05586440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the H4 motor connector (on the driver side).
    2. Measure the resistance and voltage of the wire harness side connector.
      ECU TERMINAL REFERENCE

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (H4-1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      B(H4-2)-GND(H4-1) GR - W-B Battery power supply Always 9 to 14 V
      UP(H4-10)-DOWN(H4-7) P-W Driver side door power window regulator motor UP DOWN Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the H4 motor connector.
    4. Measure the voltage of the connector.
    ECU TERMINAL REFERENCE

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    LED(H4-5)-GND(H4-1) SB - W-B Ignition power supply Ignition switch ON 9 to 14 V

    If the result is not as specified, the motor may have a malfunction.

  2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

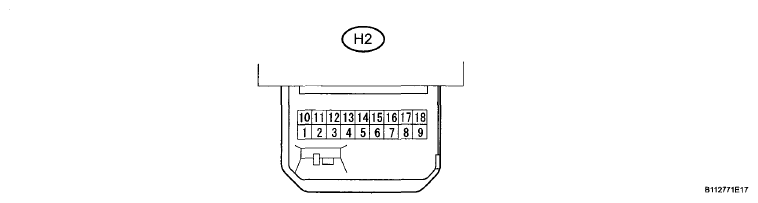

    Fig 2: Identifying H2 Switch Connector
    G06000553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the H2 switch connector.
    2. Measure the resistance and voltage of the wire harness side connector.
      ECU TERMINAL REFERENCE

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      E (H2-1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      B (H2-6) - Body ground L - Body ground Ignition power supply Ignition switch ON 9 to 14 V
      B (H2-6) - Body ground L - Body ground Ignition power supply Ignition switch OFF Below 1 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the H2 switch connector.
    4. Reset the power window regulator motor.
    5. Measure the voltage of the connector.
    ECU TERMINAL REFERENCE

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    U (H2-8) - E (H2-1) P - W-B Driver side door power window regulator motor UP output Ignition switch ON, driver power window regulator switch off 9 to 14 V
    U (H2-8) - E (H2-1) P - W-B Driver side door power window regulator motor UP output Ignition switch ON, driver side power window regulator switch UP (manual operation) 9 to 14 V → Below 1 V
    U (H2-8) - E (H2-1) P - W-B Driver side door power window regulator motor UP output Ignition switch ON, driver side power window fully open → driver side power window regulator switch UP (AUTO operation) → driver side power window fully closed 9 to 14 V → Below 1 V
    D (H2-5) - E (H2-1) W - W-B Driver side door power window regulator motor DOWN output Ignition switch ON, driver side power window regulator switch DOWN (manual operation) Below 1 V → 9 to 14 V
    D (H2-5) - E (H2-1) W - W-B Driver side door power window regulator motor DOWN output Ignition switch ON, driver side power window fully closed → driver side power window regulator switch DOWN (AUTO operation) → driver side power window fully open Below 1 V → 9 to 14 V → Below 1 V
  3. CHECK POWER WINDOW REGULATOR SWITCH (for Passenger Side)

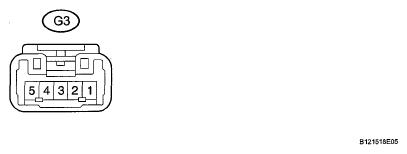

    Fig 3: Identifying G3 Switch Connector
    G05586442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the G3 switch connector.
    2. Measure the voltage of the wire harness side connector.
      ECU TERMINAL REFERENCE

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      B (G3-3) - Body ground L - Body ground Ignition power supply Ignition switch ON 9 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the G3 switch connector.
    4. Measure the voltage of the wire harness side connector.
    ECU TERMINAL REFERENCE

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    B (G3-3) - D (G3-1) L - B Passenger side door power window regulator motor UP output Ignition switch ON, front passenger window regulator switch off Below 1 V
    B (G3-3) - D (G3-1) L - B Passenger side door power window regulator motor UP output Ignition switch ON, front passenger window regulator switch UP 9 to 14 V
    B (G3-3) - U (G3-4) L - Y Passenger side door power window regulator motor DOWN output Ignition switch ON, front passenger window regulator switch off Below 1 V
    B (G3-3) - U (G3-4) L - Y Passenger side door power window regulator motor DOWN output Ignition switch ON, front passenger window regulator switch DOWN 9 to 14 V

    If the result is not as specified, there may be a malfunction.

  4. CHECK POWER WINDOW REGULATOR SWITCH (for Rear Door Side)

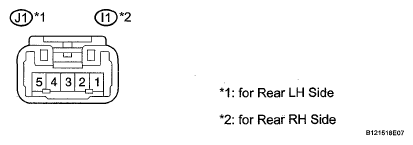

    Fig 4: Identifying J1 Or I1 Switch Connectors
    G05586443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the J1 or 11 switch connectors.
    2. Measure the voltage of the wire harness side connector.
      ECU TERMINAL REFERENCE

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      B (3) - Body ground L - Body ground Ignition power supply Ignition switch OFF Below 1 V
      B (3) - Body ground L - Body ground Ignition power supply Ignition switch ON 10 to 14 V
      U (4) - Body ground R - Body ground Power window motor UP output Ignition switch ON, power window switch off → UP Below 1 V → 10 to 14 V
      D (1)- Body ground G - Body ground Power window motor DOWN output Ignition switch ON, power window switch off → DOWN Below 1 V → 10 to 14 V
      SU (5) - Body ground G - Body ground Power window motor UP input (Remote) Ignition switch ON, power window master switch off → UP (Remote) Below 1 V → 10 to 14 V
      SD (2) - Body ground BR - Body ground Power window motor DOWN input (Remote) Ignition switch ON, power window master switch off → UP (Remote) Below 1 V → 10 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

  5. CHECK INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)

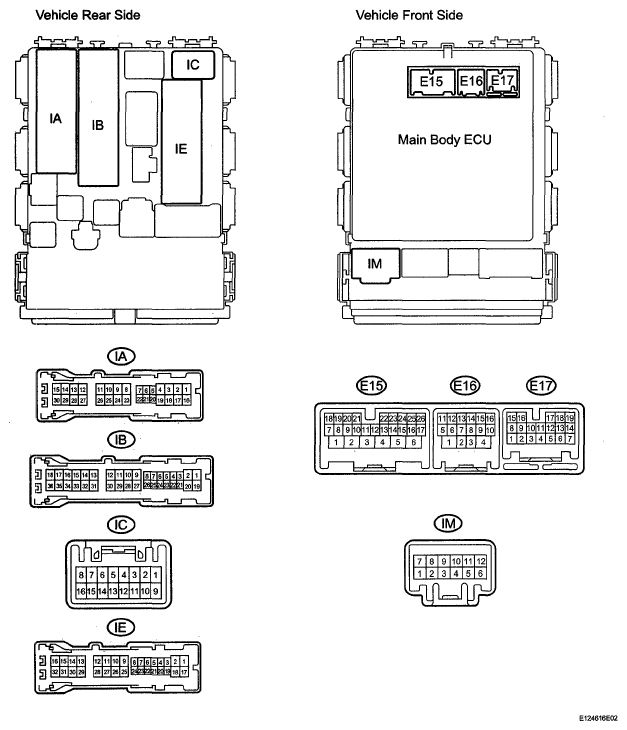

    Fig 5: Identifying IA, IB And IE Junction Block Connectors
    G05586444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the IA, IB, IC, IE and IM junction block connectors.
    2. Disconnect the E15 and E16 ECU connectors.
    3. Measure the voltage and resistance of the wire harness side connectors.
      ECU TERMINAL REFERENCE

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      BECU (IB-30) - GND1 (IE-17) R - W-B Battery (power supply) Always 9 to 14 V
      AM1 (E16-1) - GND1 (IE-17) W - W-B Battery (power supply) Always 9 to 14 V
      AM2 (E15-6) - GND1 (IE-17) W - W-B Battery (power supply) Always 9 to 14 V
      IG (IM-9) - GND1 (IE-17) W - W-B Ignition power supply Ignition switch ON 9 to 14 V
      IG (IM-9) - GND1 (IE-17) W - W-B Ignition power supply Ignition switch OFF Below 1 V
      DCTY (IA-21) - Body ground W - Body ground Driver side door courtesy light switch input Driver side door closed 10 kΩ or higher
      DCTY (IA-21) - Body ground W - Body ground Driver side door courtesy light switch input Driver side door open Below 1 Ω
      PCTY (IC-14) - Body ground BR - Body ground Front passenger side door courtesy light switch input Front passenger side door closed 10 kΩ or higher
      PCTY (IC-14) - Body ground BR - Body ground Front passenger side door courtesy light switch input Front passenger side door open Below 1 Ω
      LIN2 (E15-23) - Body ground V - Body ground LIN communication Always 10 kΩ or higher
      GND1 (IE-17) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.
