Windshield Glass: Components

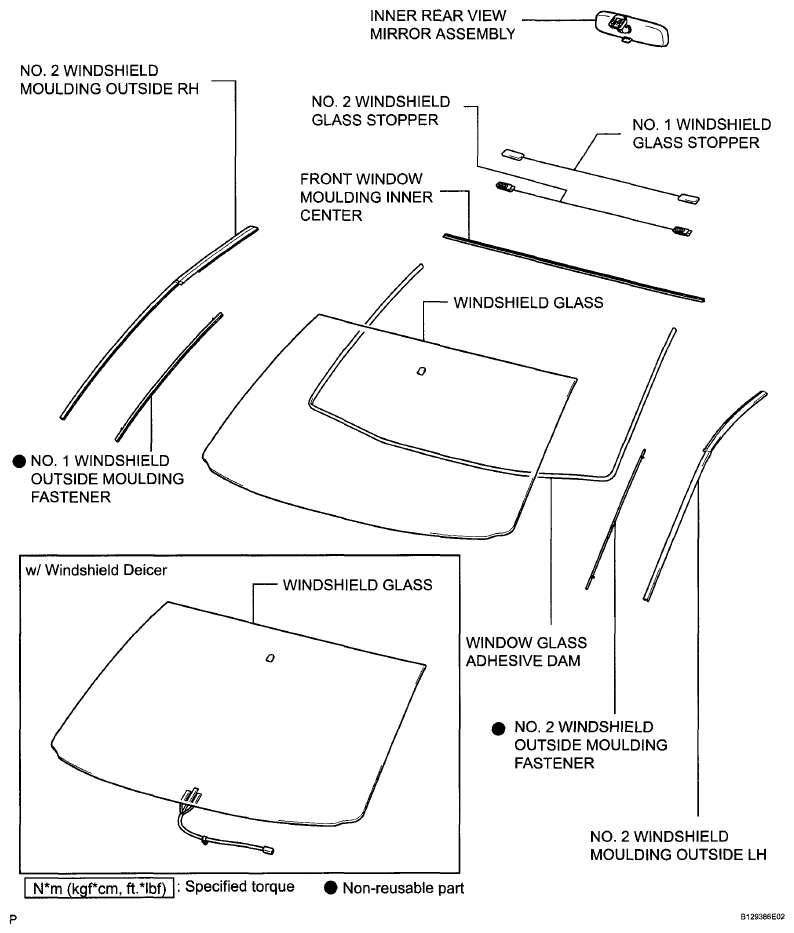

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 3)
G06000601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

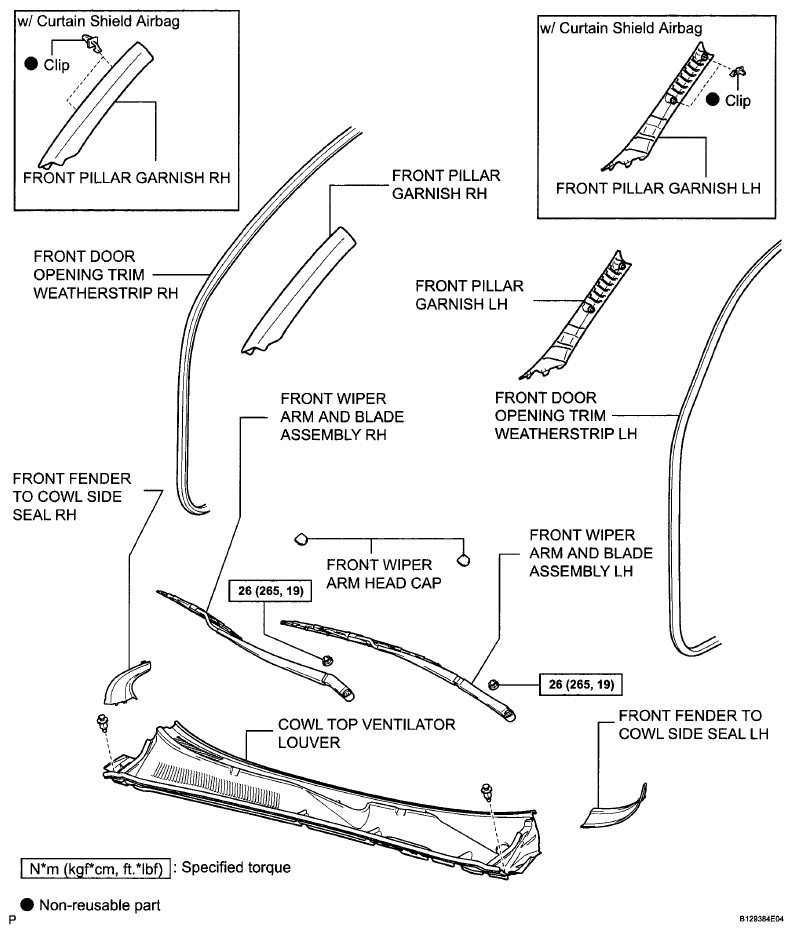

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 3)
G06000602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Windshield Glass Replacement Components With Torque Specifications (3 Of 3)
G05586491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
