Downhill Assist Control Switch: Inspection

CHECK DOWNHILL ASSIST CONTROL SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
1 - 4	Not pushed	10 kΩ or higher
1 - 4	Pushed in	Below 25 Ω

If the result is not as specified, replace the switch.

Check the illumination operation.
1. Connect the battery positive (+) lead to terminal 3 and negative (-) lead to terminal 2. Then check that the bulb illuminates.
OK: Bulb illuminates.

If the result is not as specified, replace the switch.

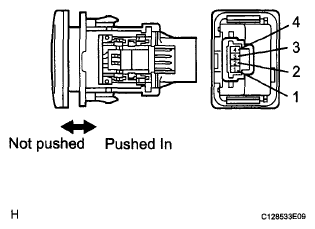

Fig 1: Checking Downhill Assist Control Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
