Downhill Assist Control Switch: Installation

  1. INSTALL DOWNHILL ASSIST CONTROL SWITCH
    1. Attach the 2 claws to install the switch.
  2. INSTALL NO. 1 SWITCH HOLE BASE
    1. Install the No. 1 switch hole base (See INSTALLATION ).

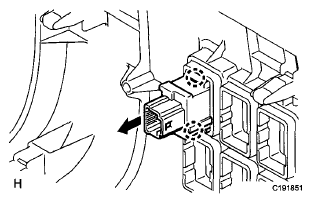

    Fig 1: Installing Downhill Assist Control Switch And Claws
    G06003446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
