Front Speed Sensor: Removal

HINT:

• Use the same procedure for the RH and LH sides.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER LINER LH
4. REMOVE FRONT SPEED SENSOR LH
   1. Disconnect the sensor connector.

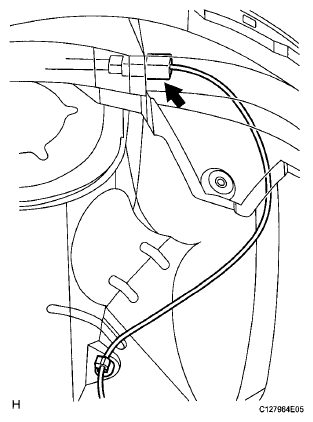

      Fig 1: Locating Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the sensor clip (labeled A), bolt (labeled B) and sensor clamp (labeled C).
   3. Remove the sensor clip (labeled D), bolt (labeled E) and sensor clamp (labeled F).

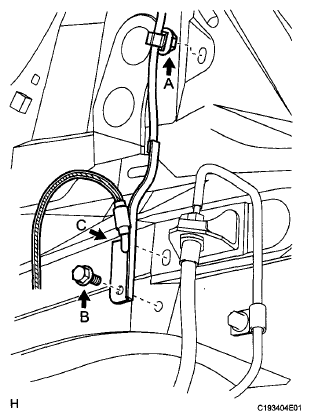

      Fig 2: Locating Sensor Clip And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 3: Locating Sensor Clip, Bolt And Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and sensor body from the knuckle.
   NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.
