VSC Off Switch: Inspection

  1. CHECK VSC OFF SWITCH
    1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Switch Condition Specified Condition
    6 - 9 Not pushed 10 kΩ or higher
    6 - 9 Pushed in Below 1 Ω

    If the result is not as specified, replace the VSC OFF switch.

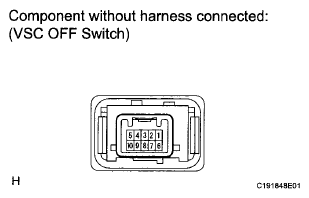

    Fig 1: Identifying VSC OFF Switch Connector Terminals
    G06003440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
