VSC Off Switch: Installation

  1. INSTALL VSC OFF SWITCH
    1. Attach the 2 claws to install the VSC OFF switch to the switch base.
    2. Connect the VSC OFF switch connector.
  2. INSTALL SWITCH BASE
    1. Install the switch base (See INSTALLATION ).

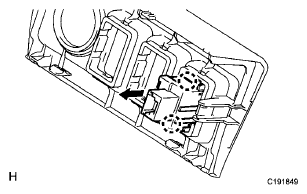

    Fig 1: Installing Vsc Off Switch Connector With Claws
    G06003441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
