Engine Control (2GR-FE): Notes

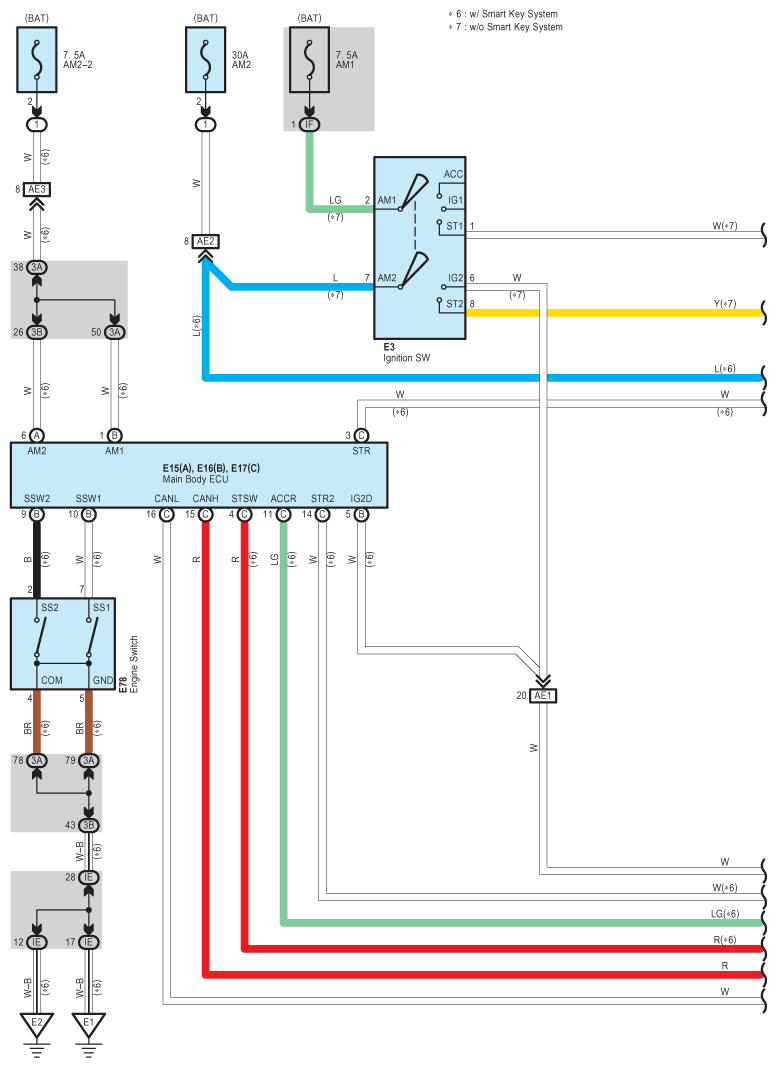

Fig 1: Engine Control (2GR-FE) - Circuit Diagram (1 Of 20)

G07611579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

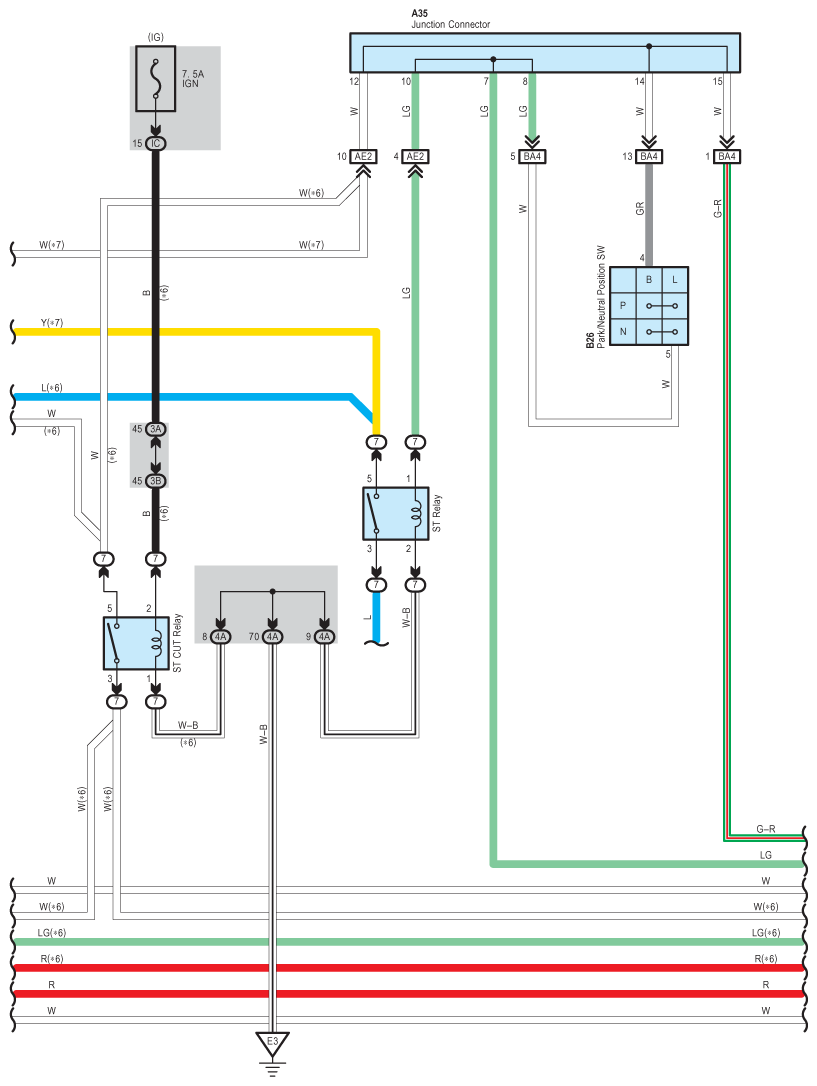

Fig 2: Engine Control (2GR-FE) - Circuit Diagram (2 Of 20)

G07611580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

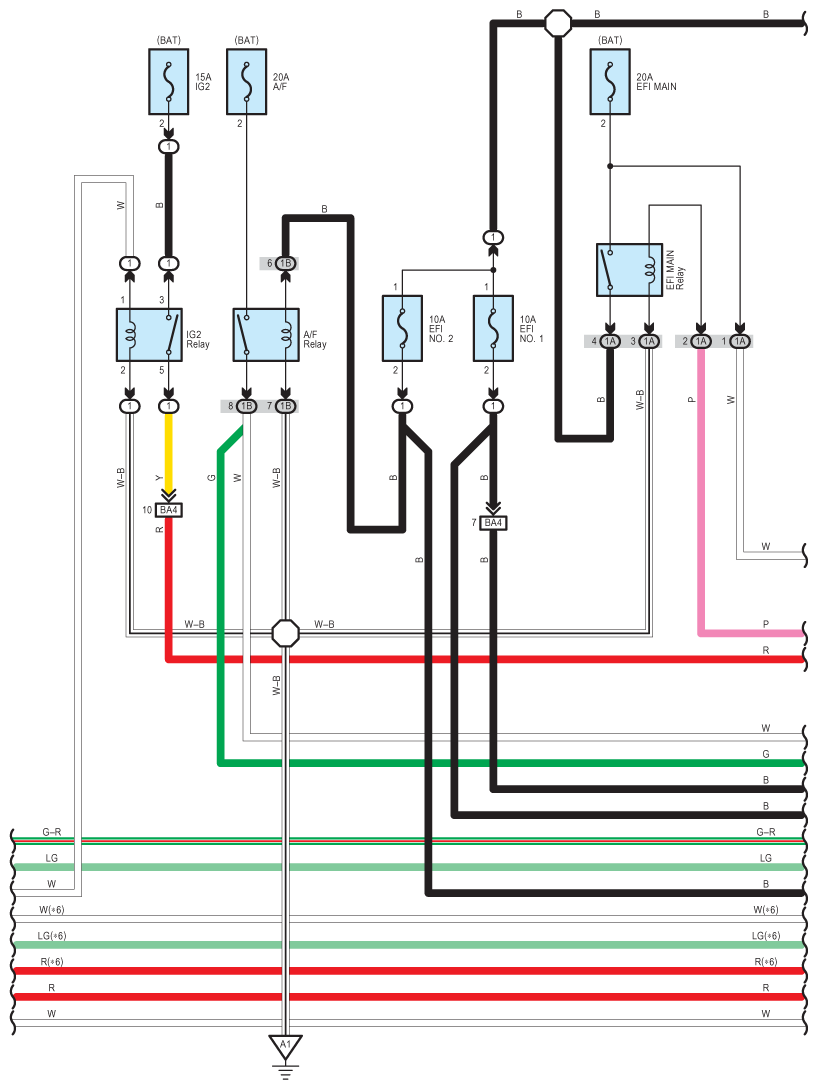

Fig 3: Engine Control (2GR-FE) - Circuit Diagram (3 Of 20)

G07611581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

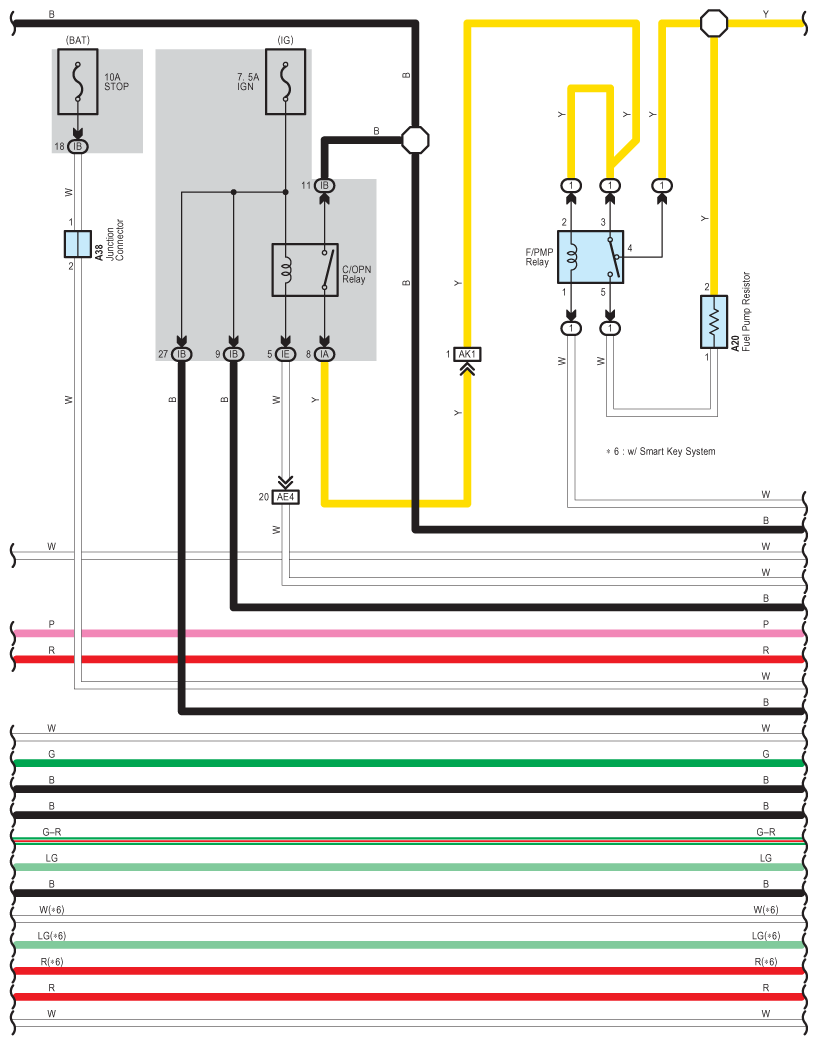

Fig 4: Engine Control (2GR-FE) - Circuit Diagram (4 Of 20)

G07611582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

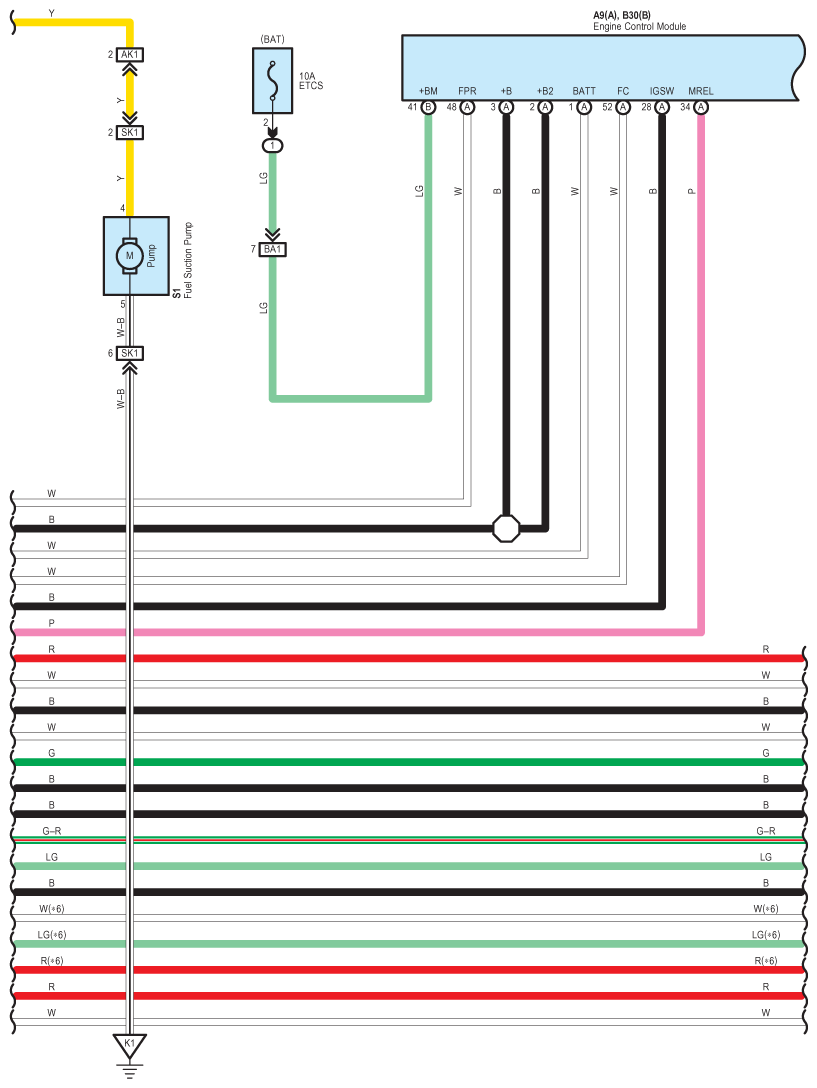

Fig 5: Engine Control (2GR-FE) - Circuit Diagram (5 Of 20)

G07611583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

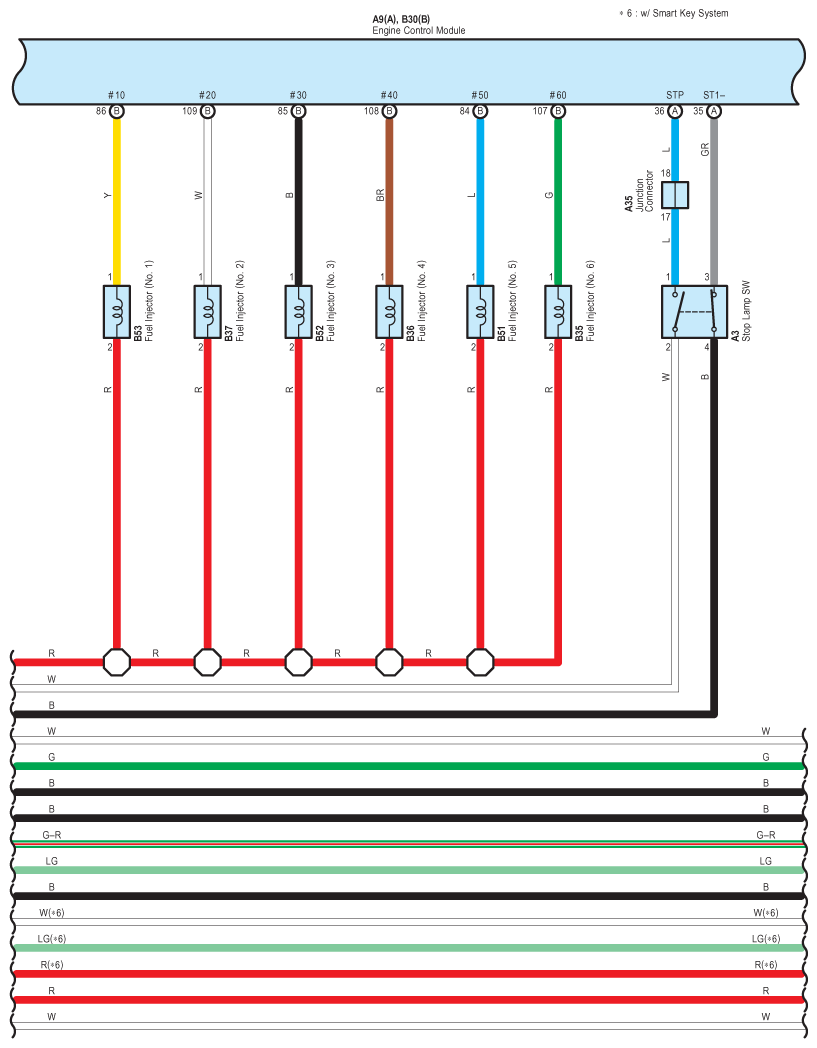

Fig 6: Engine Control (2GR-FE) - Circuit Diagram (6 Of 20)

G07611584

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

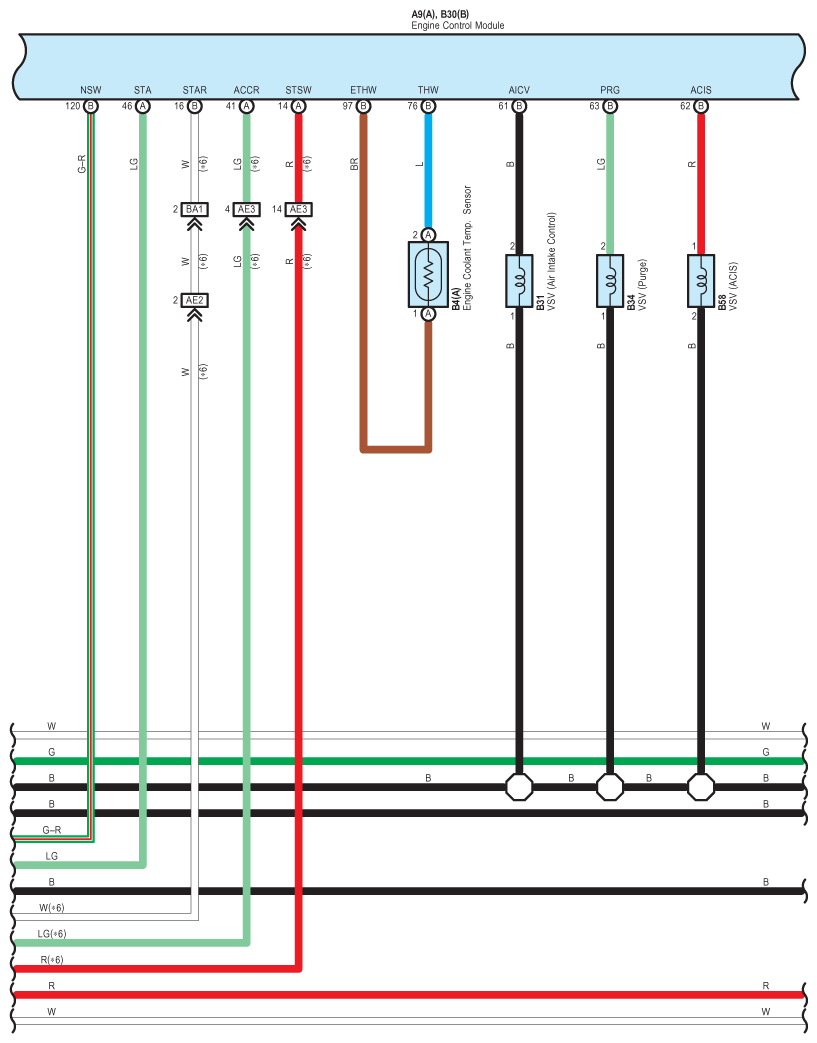

Fig 7: Engine Control (2GR-FE) - Circuit Diagram (7 Of 20)

G07611585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

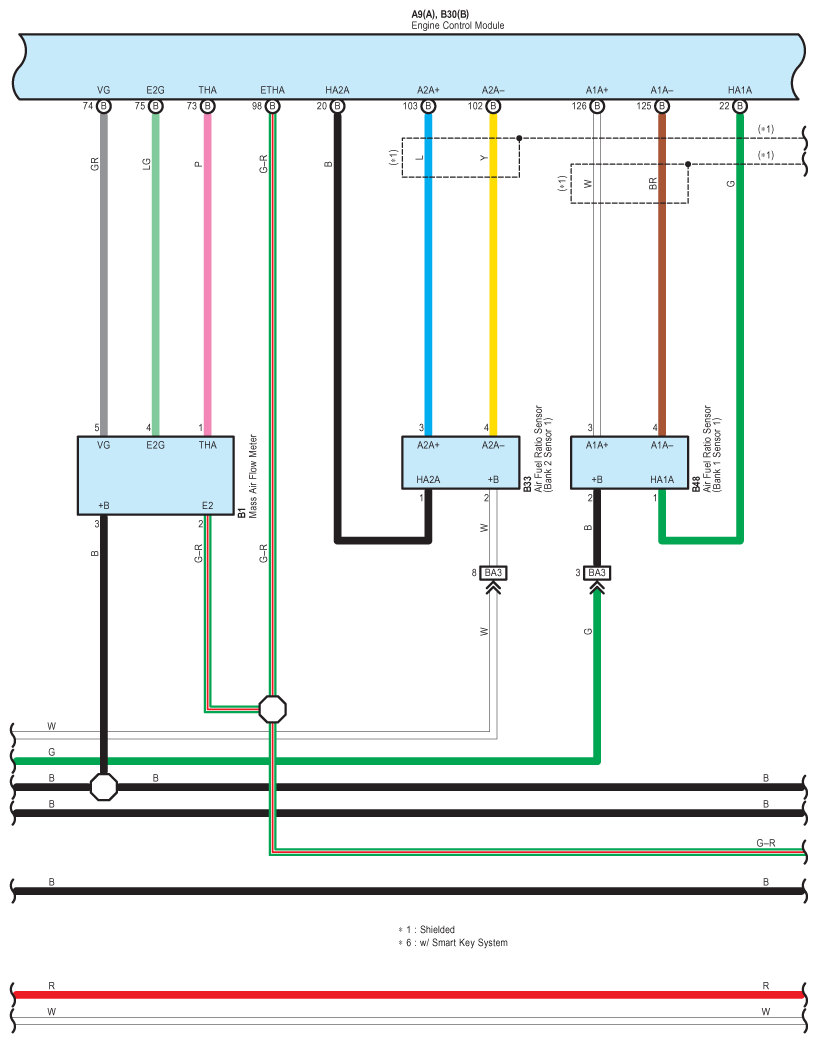

Fig 8: Engine Control (2GR-FE) - Circuit Diagram (8 Of 20)

G07611586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

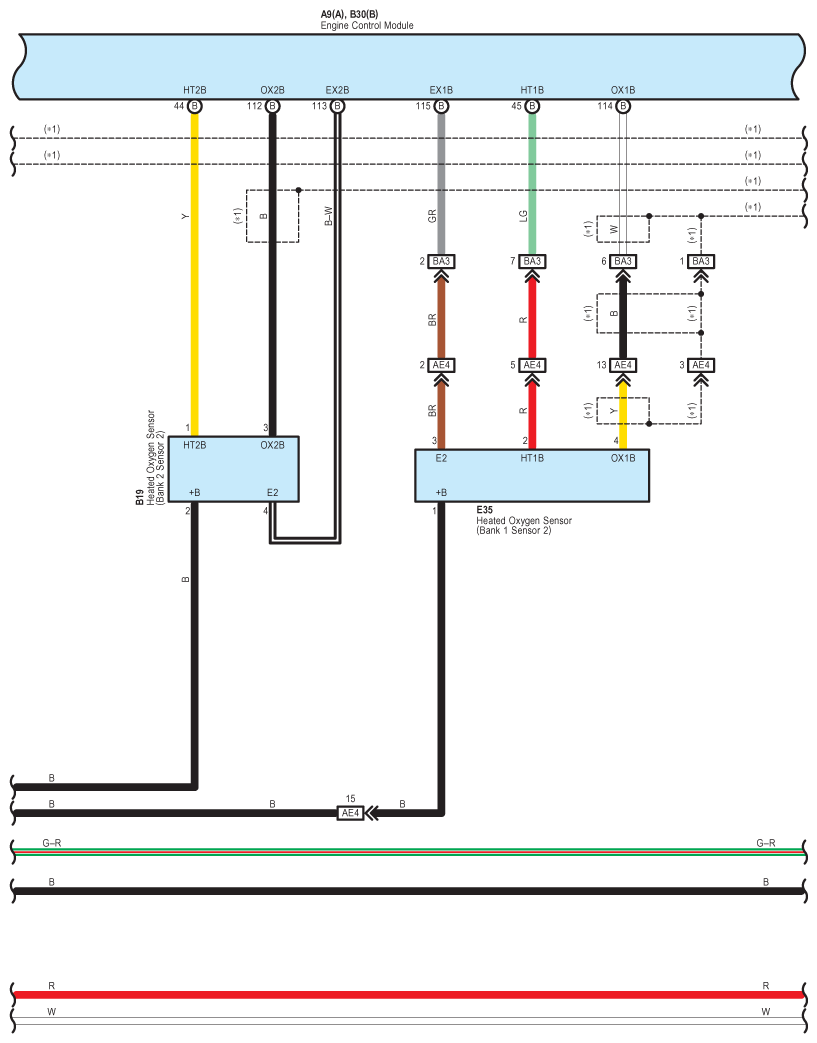

Fig 9: Engine Control (2GR-FE) - Circuit Diagram (9 Of 20)

G07611587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

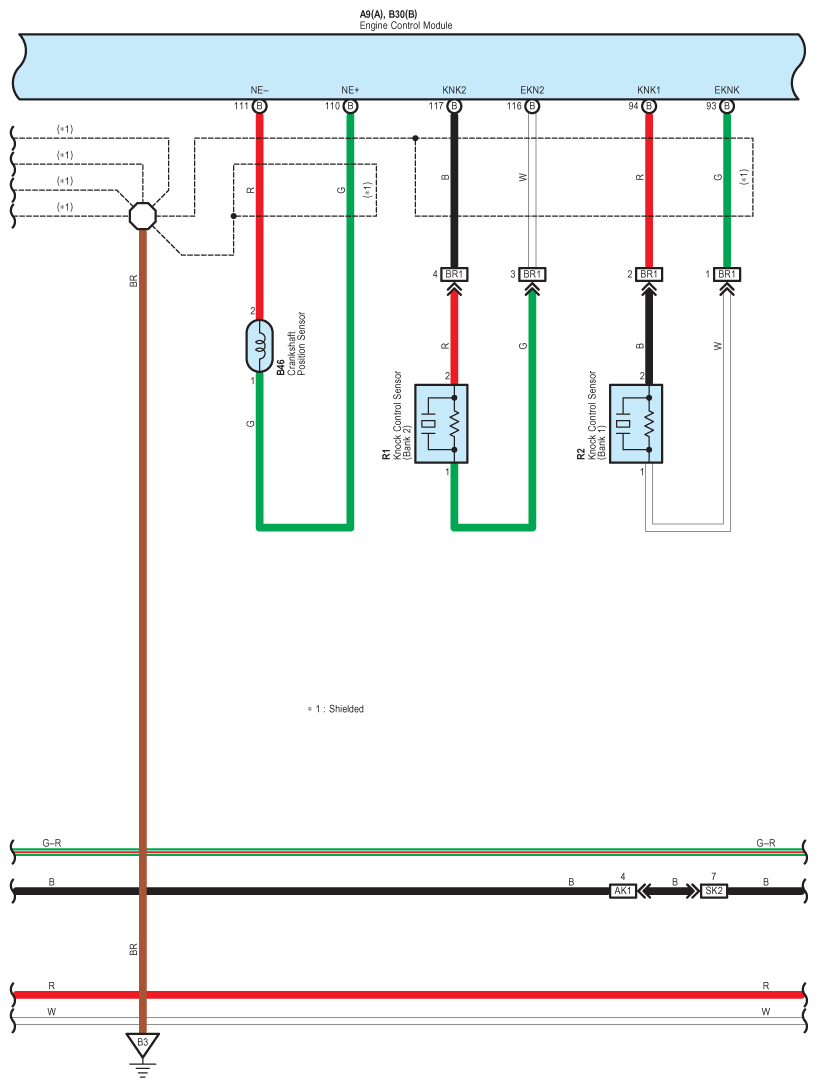

Fig 10: Engine Control (2GR-FE) - Circuit Diagram (10 Of 20)

G07611588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

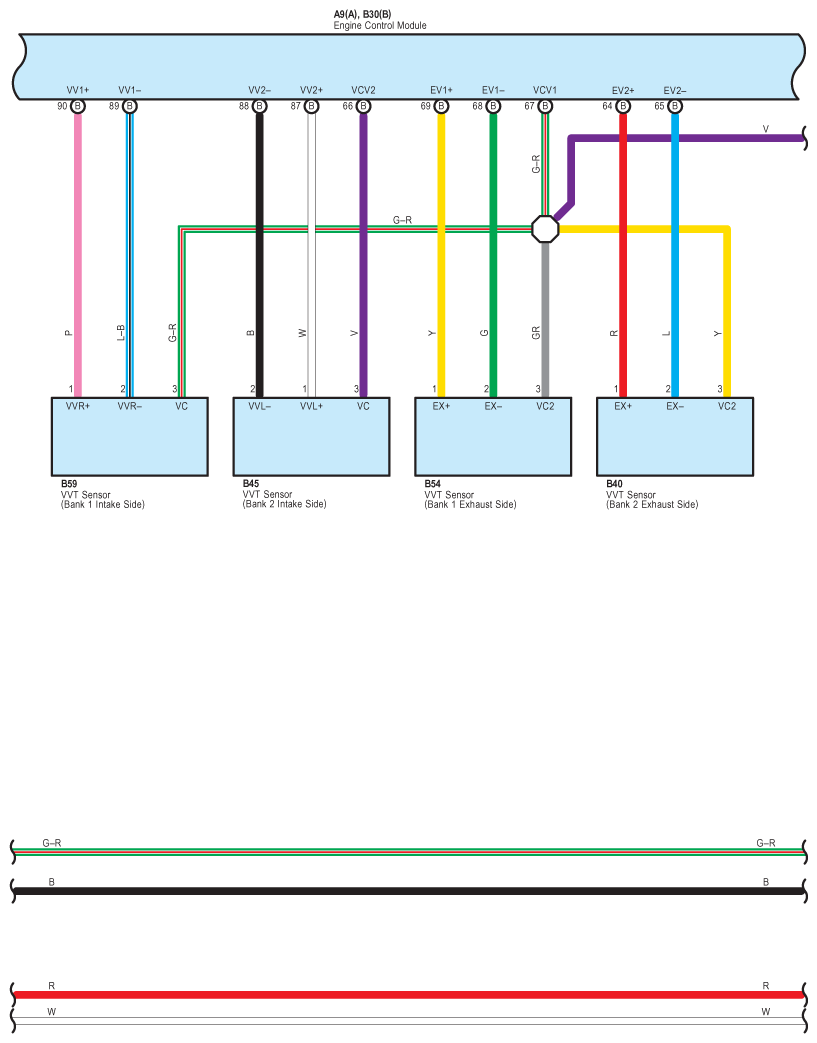

Fig 11: Engine Control (2GR-FE) - Circuit Diagram (11 Of 20)

G07611589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

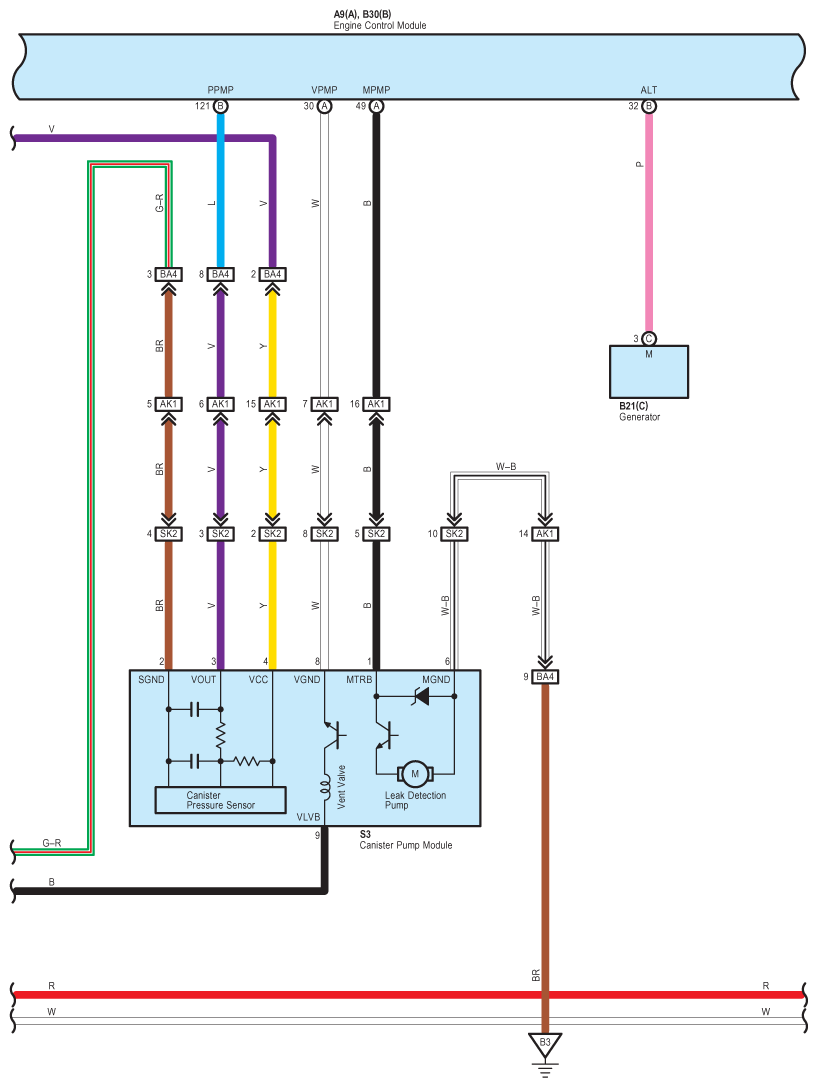

Fig 12: Engine Control (2GR-FE) - Circuit Diagram (12 Of 20)

G07611590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

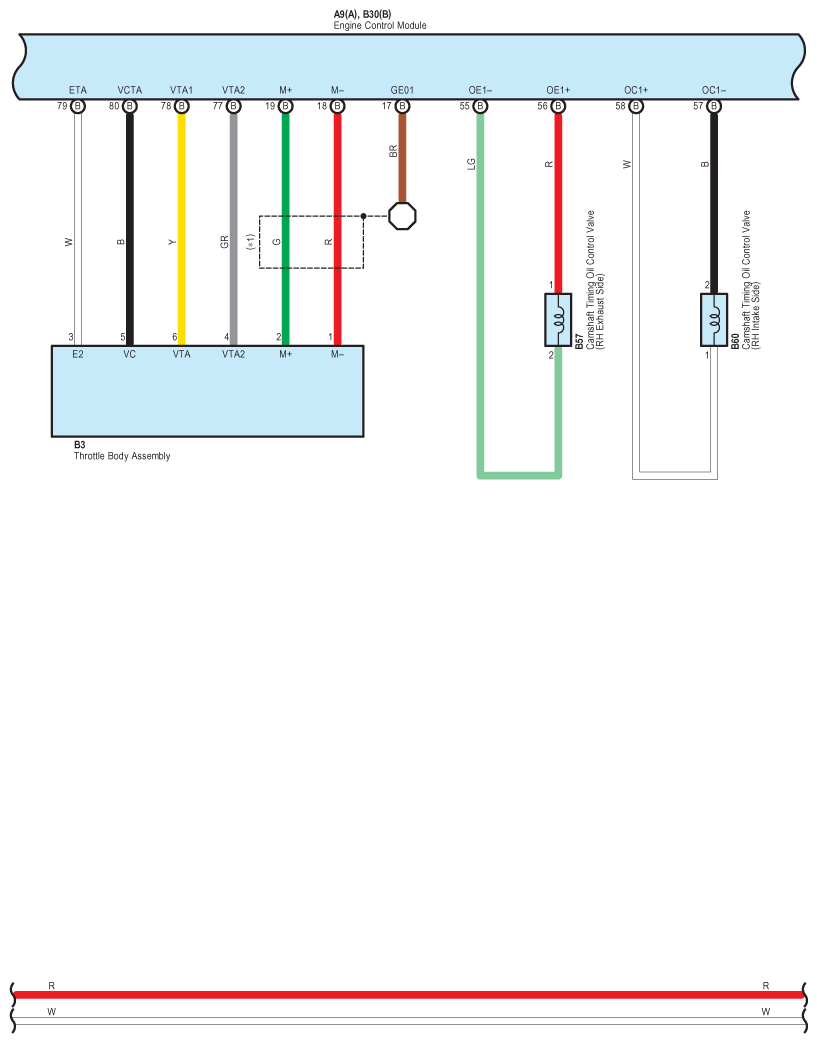

Fig 13: Engine Control (2GR-FE) - Circuit Diagram (13 Of 20)

G07611591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

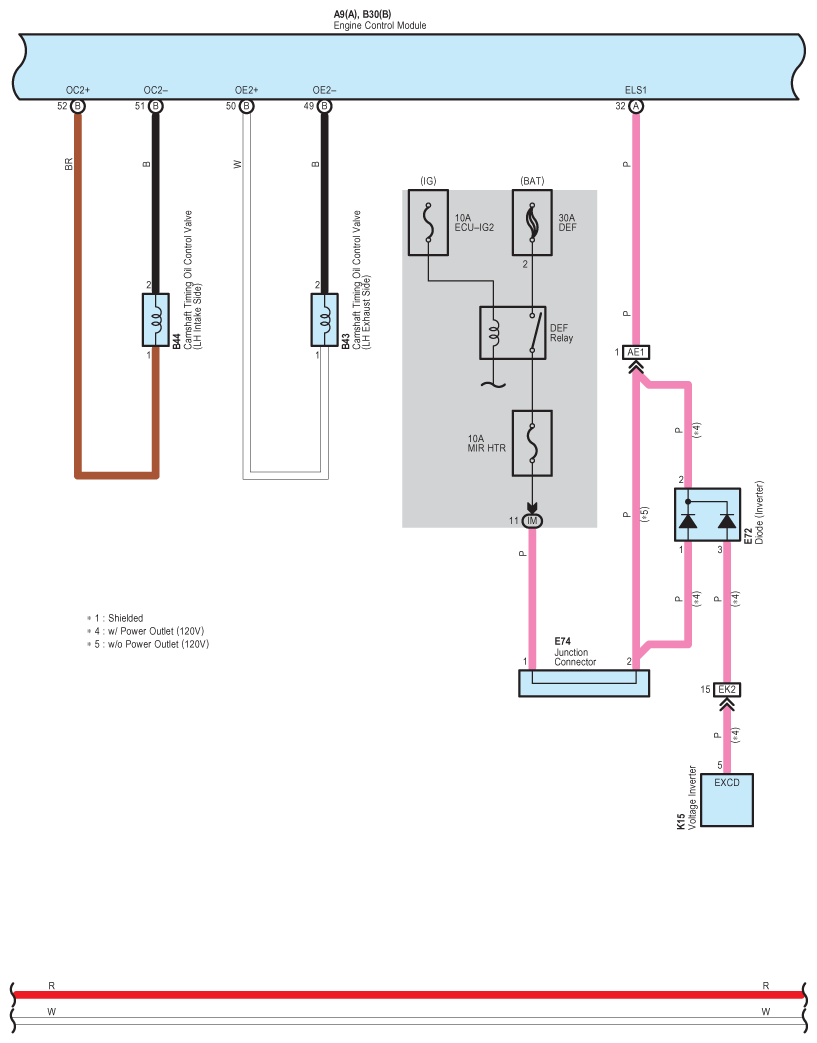

Fig 14: Engine Control (2GR-FE) - Circuit Diagram (14 Of 20)

G07611592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

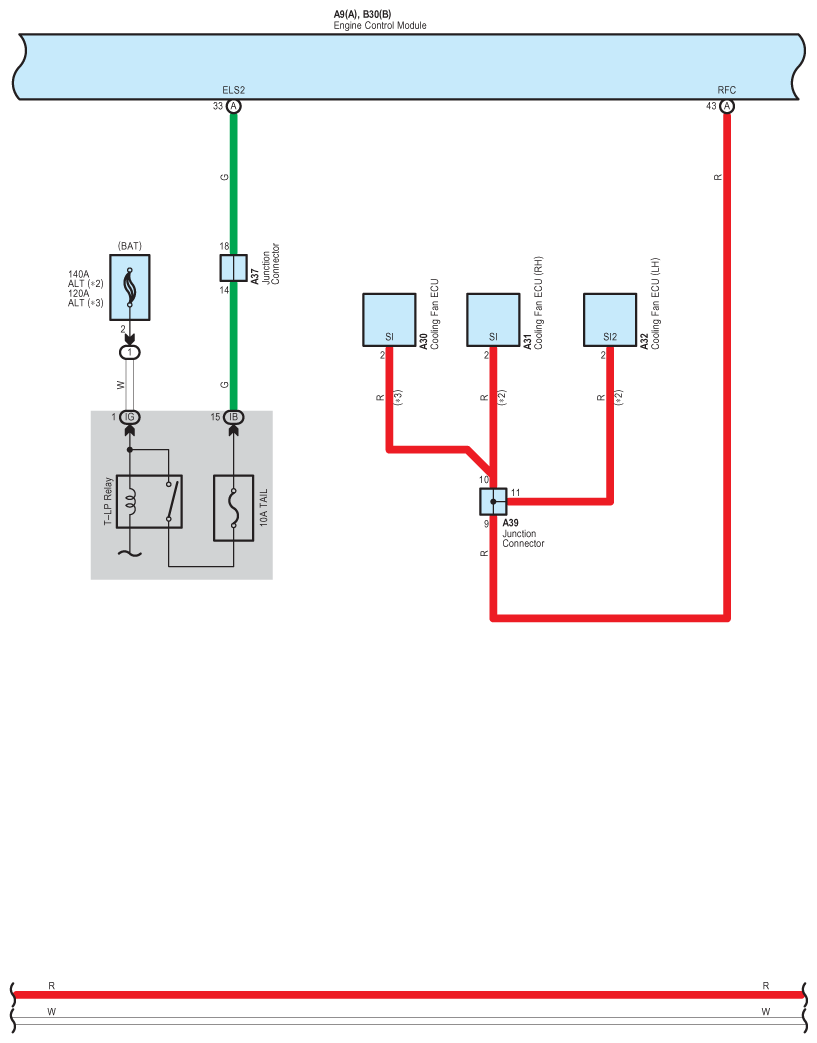

Fig 15: Engine Control (2GR-FE) - Circuit Diagram (15 Of 20)

G07611593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

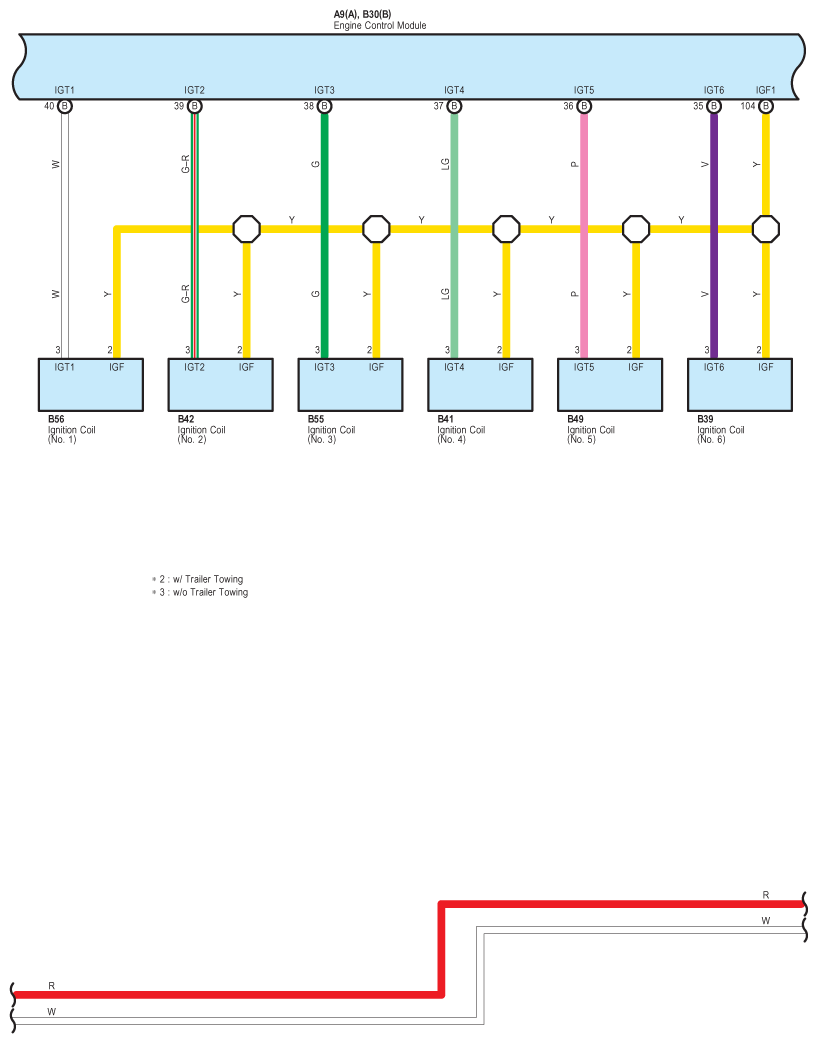

Fig 16: Engine Control (2GR-FE) - Circuit Diagram (16 Of 20)

G07611594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

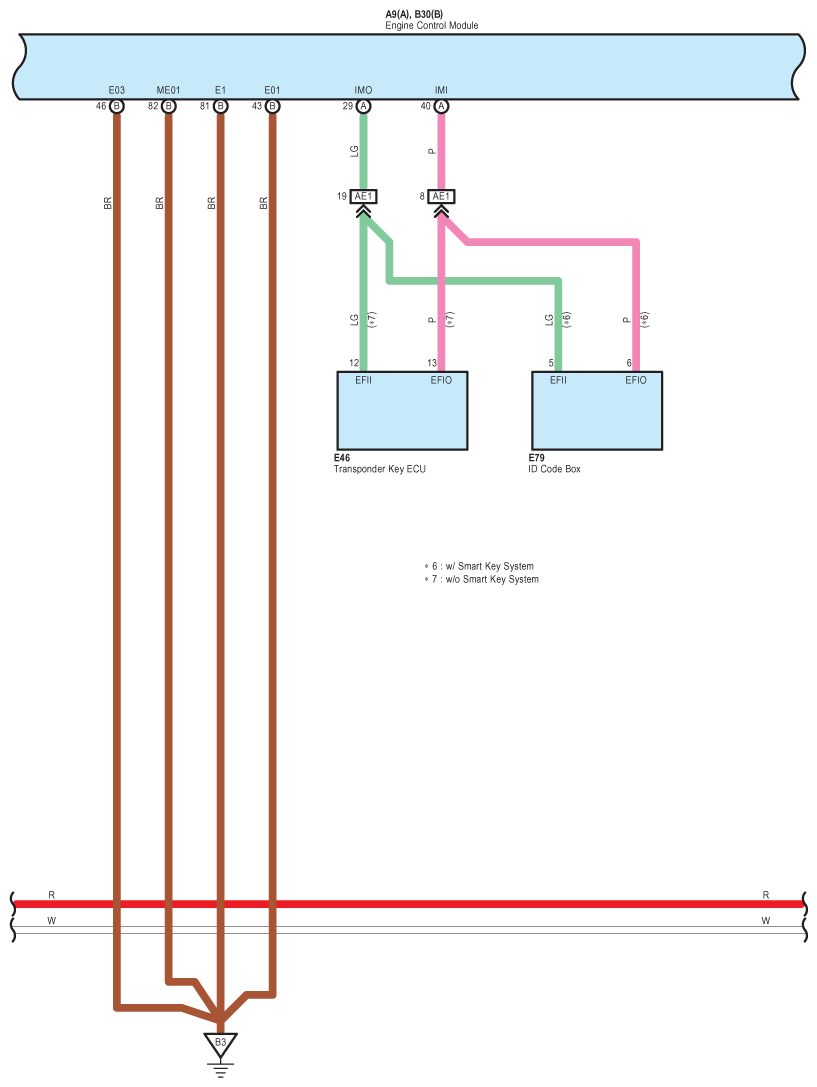

Fig 17: Engine Control (2GR-FE) - Circuit Diagram (17 Of 20)

G07611595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

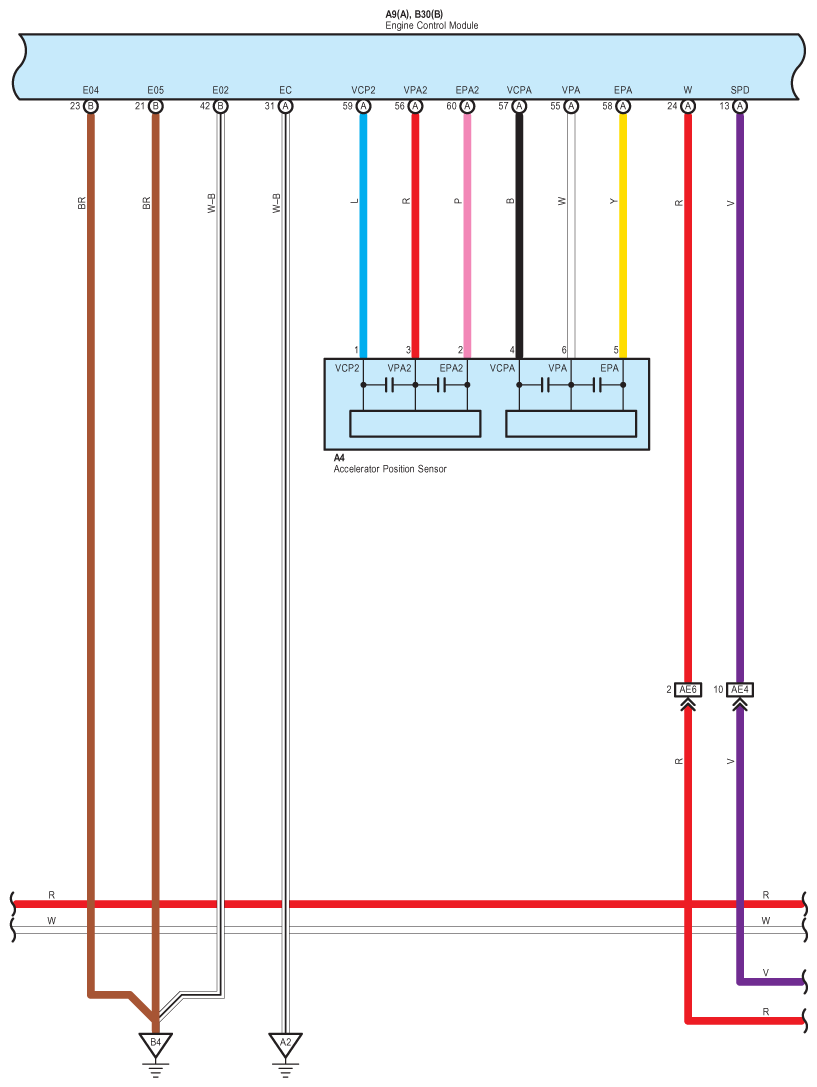

Fig 18: Engine Control (2GR-FE) - Circuit Diagram (18 Of 20)

G07611596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

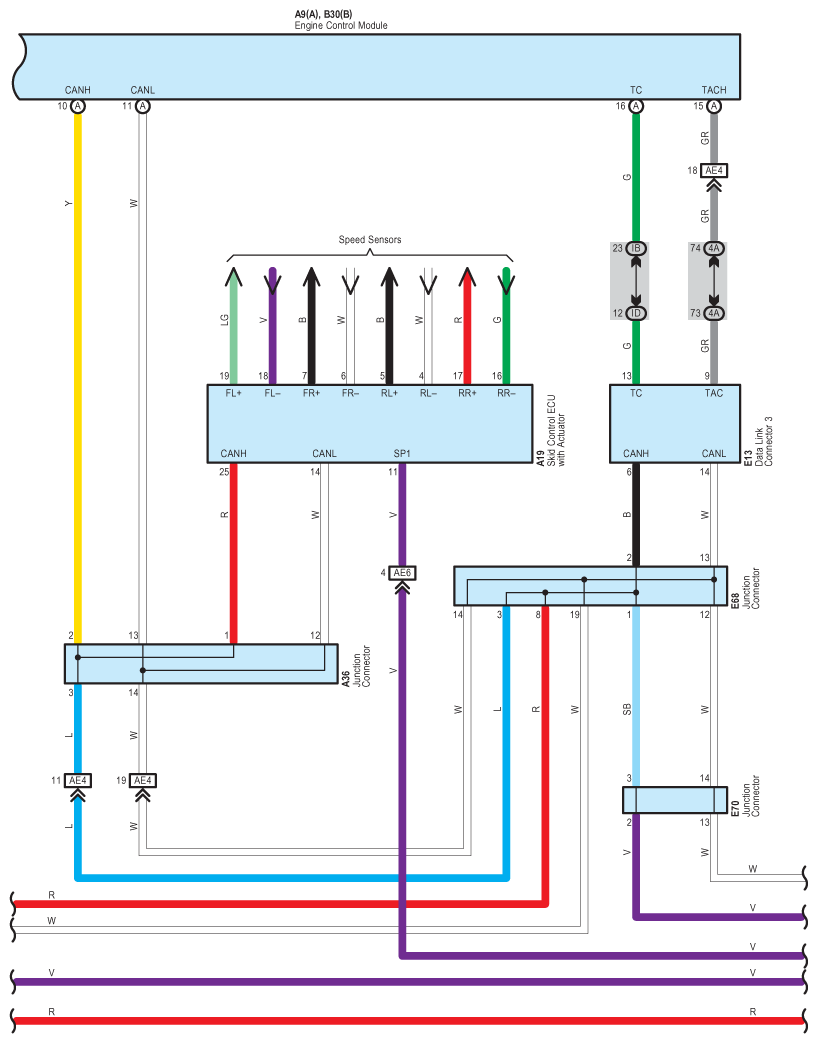

Fig 19: Engine Control (2GR-FE) - Circuit Diagram (19 Of 20)

G07611597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

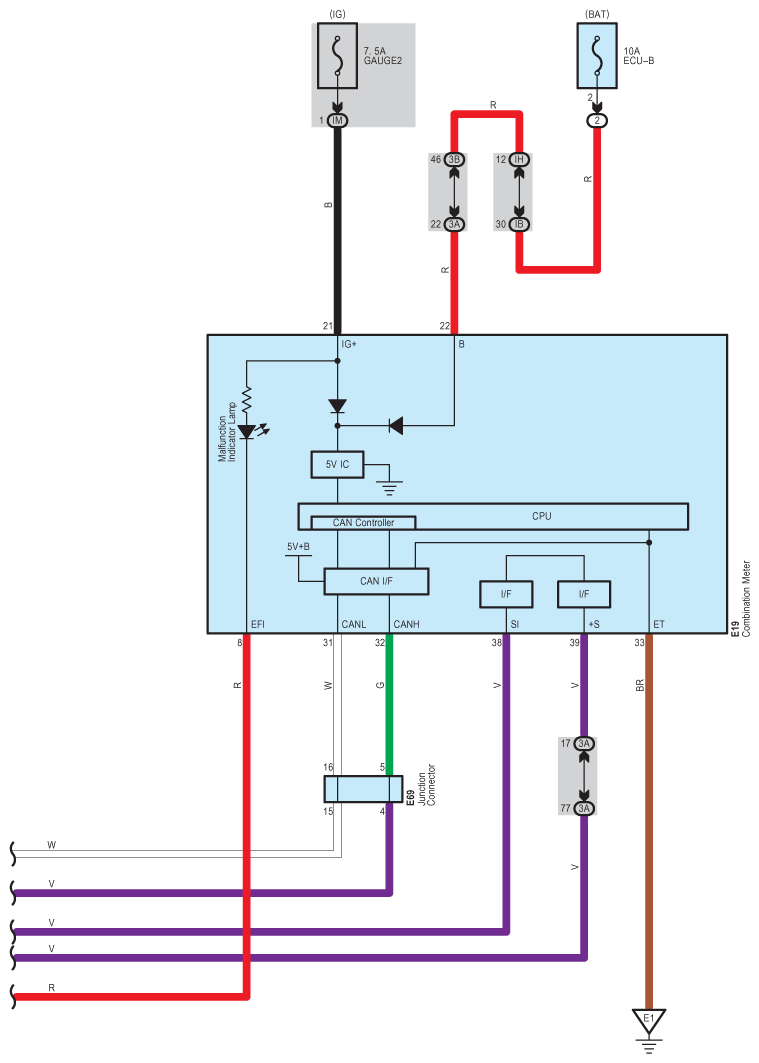

Fig 20: Engine Control (2GR-FE) - Circuit Diagram (20 Of 20)

G07611598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
