Manual Air Conditioning: Notes

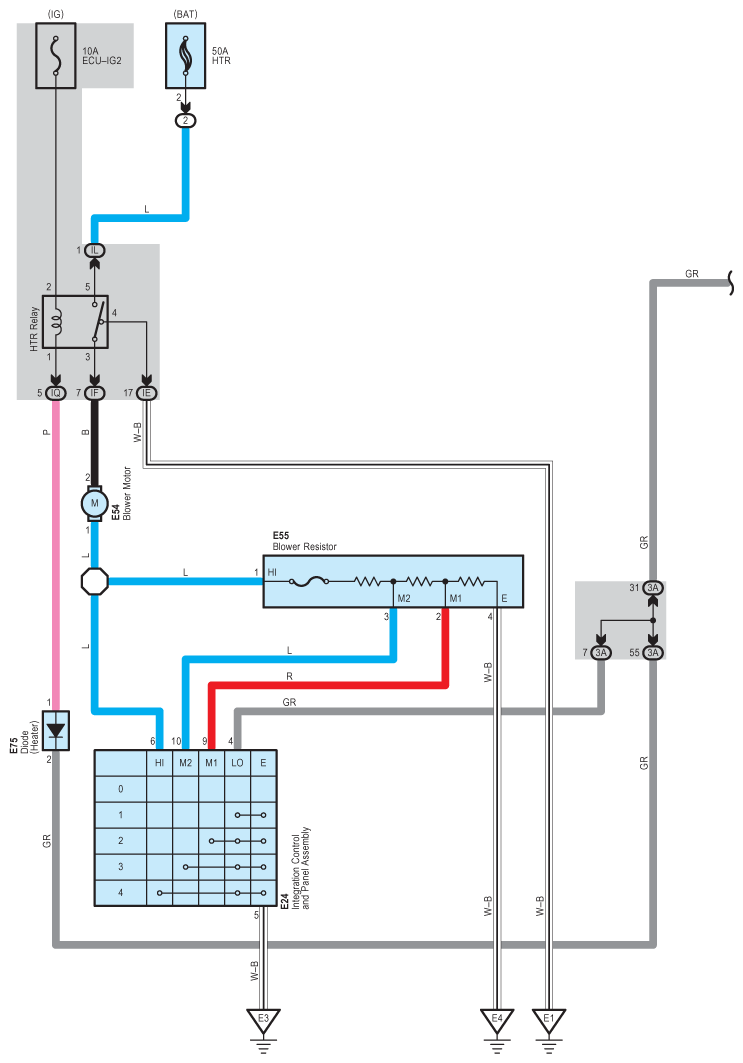

Fig 1: Manual Air Conditioning - Circuit Diagram (1 Of 5)
G07611746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

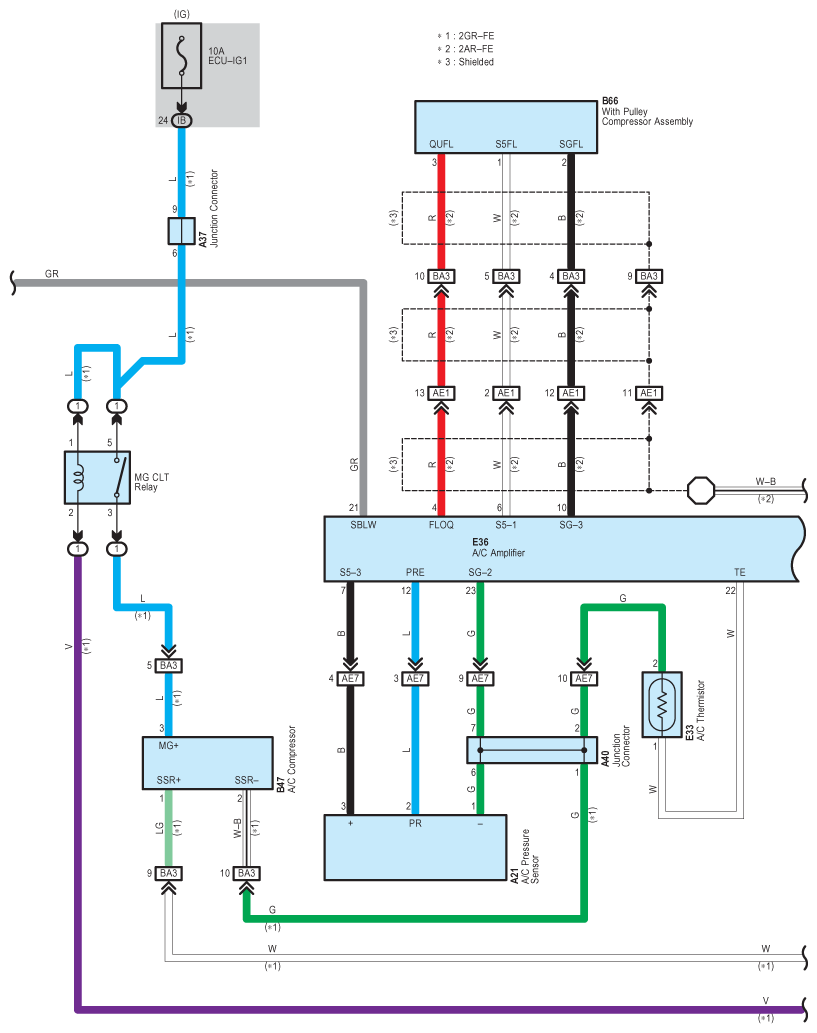

Fig 2: Manual Air Conditioning - Circuit Diagram (2 Of 5)
G07611747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

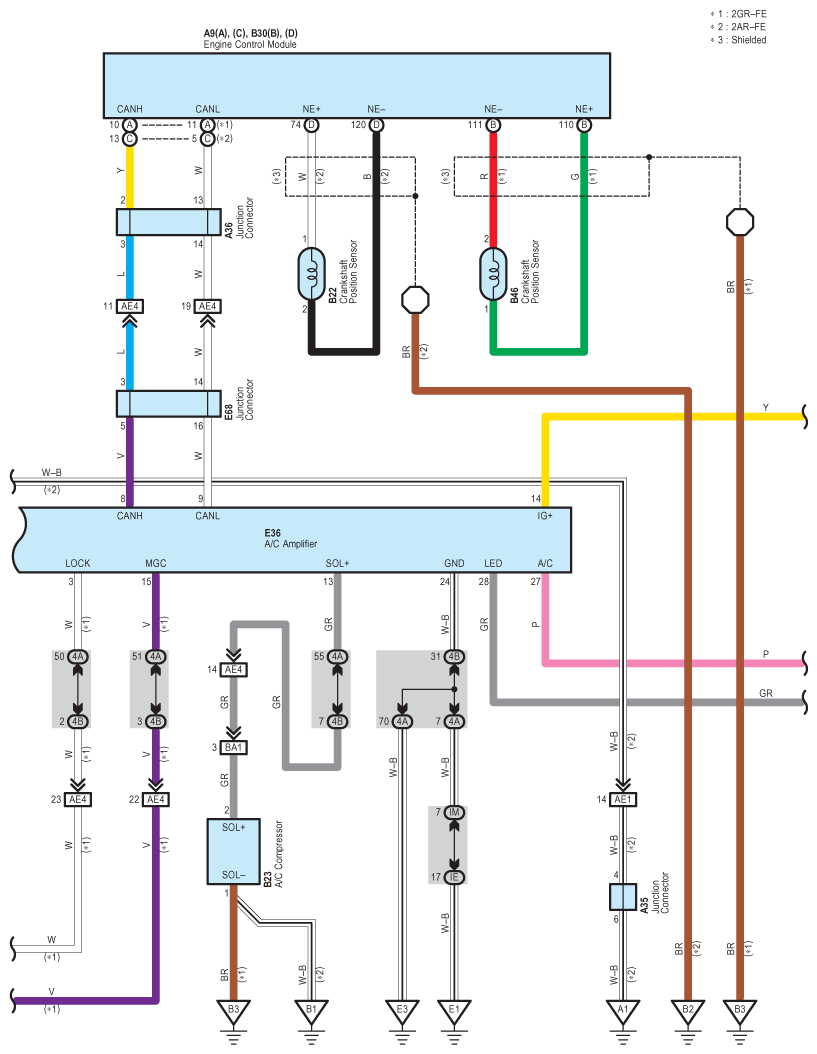

Fig 3: Manual Air Conditioning - Circuit Diagram (3 Of 5)
G07611748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

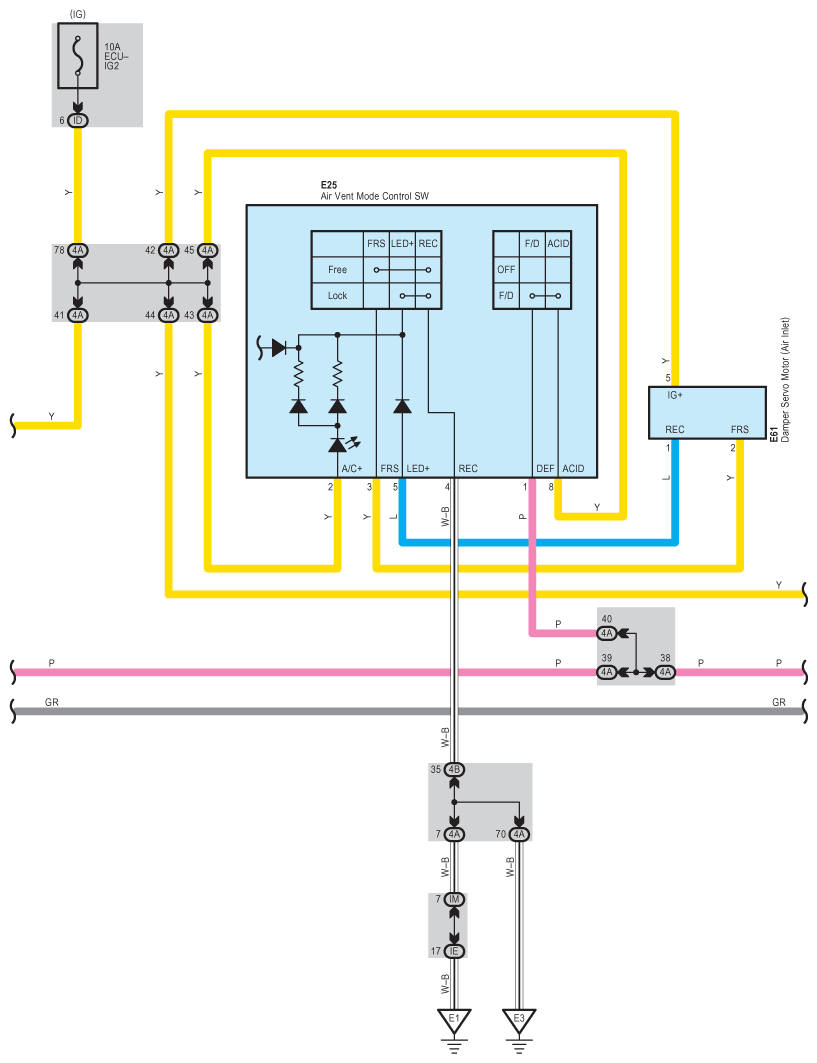

Fig 4: Manual Air Conditioning - Circuit Diagram (4 Of 5)
G07611749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

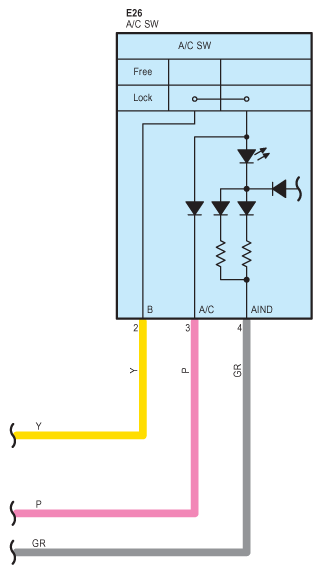

Fig 5: Manual Air Conditioning - Circuit Diagram (5 Of 5)
G07611750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
