Speaker Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

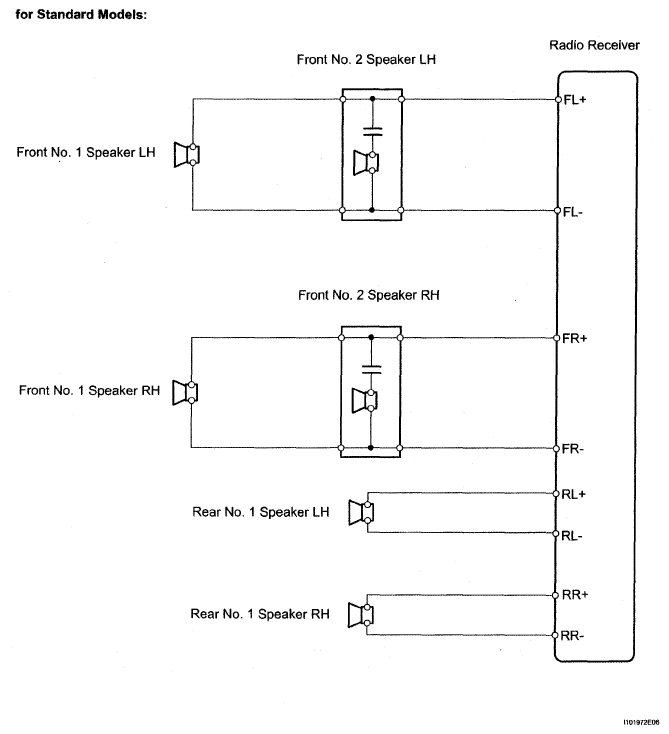

Fig 1: Speaker Wiring Diagram For Standard Models
G05184773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

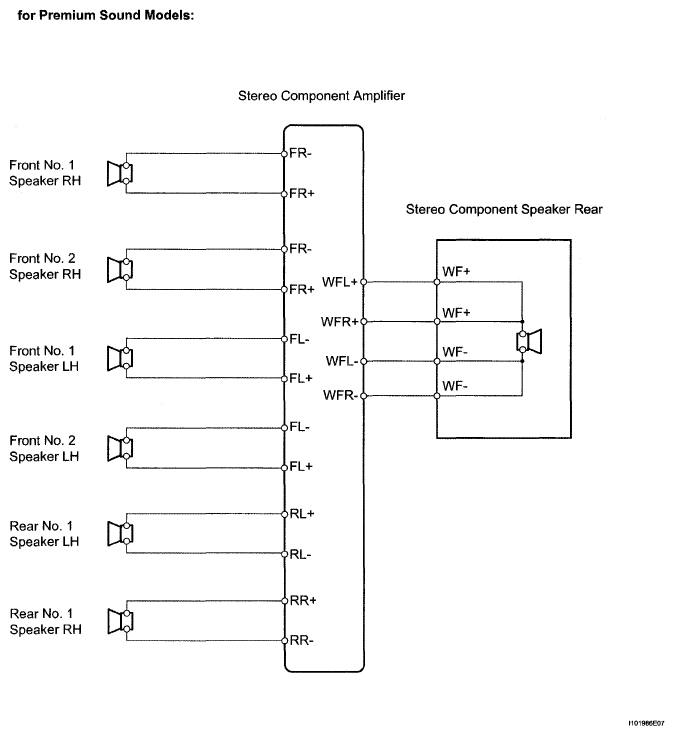

Fig 2: Speaker Wiring Diagram For Premium Sound Models
G05184774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
