Parts Location
WARNING:
This page is about a different variant/trim than selected.

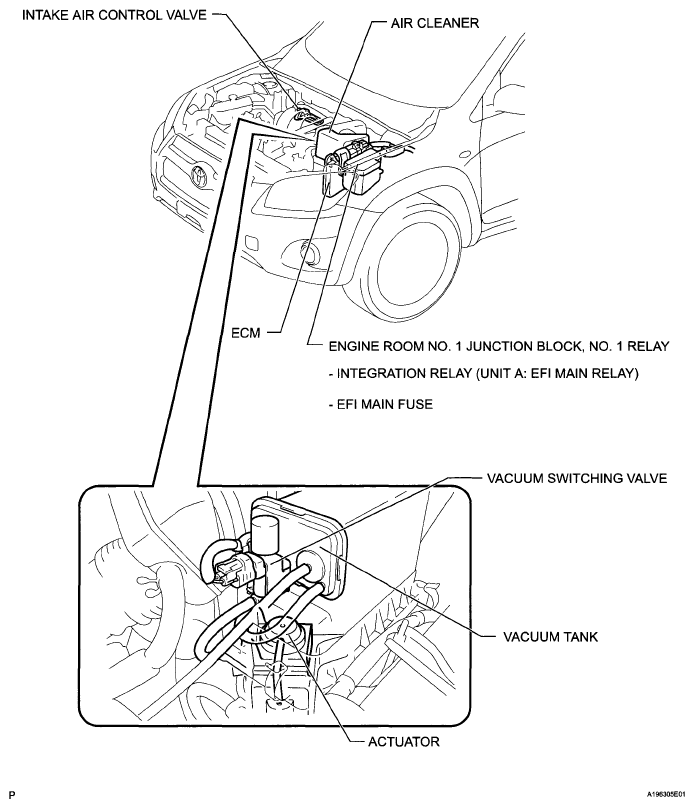

Fig 1: Identifying Intake System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
