Steering Column Assembly: Installation

  1. INSTALL STEERING COLUMN ASSEMBLY
    1. Install the steering column onto the instrument panel reinforcement with the 3 bolts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    2. Connect all the connectors and clamp the wire harnesses onto the steering column bracket.
  2. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
    1. Install the brake pedal support (see REASSEMBLY ).

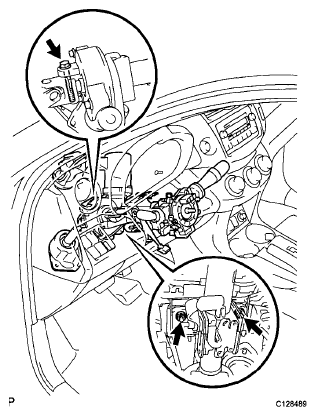

      Fig 1: Installing Brake Pedal Support Bolts
      G06003645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO.2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on steering intermediate shaft and the steering sliding yoke and temporarily install them with bolt B.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    2. Align the matchmarks on the steering sliding yoke and steering gear and install them with bolt A.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

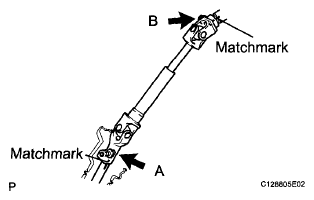

      Fig 2: Aligning Matchmarks On Steering Intermediate Shaft
      G06003664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover plate with the 2 clips.
    2. Install the floor carpet.
  5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL  (See INSTALLATION )
    Fig 3: Locating Column Hole Cover Silencer Sheet Clips
    G05585160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT POWER STEERING ECU
    1. Connect the 2 steering column connectors to the power steering ECU.
    2. Install the power steering motor wire harness and torque sensor wire harness clamps onto the side of the power steering ECU.
    3. Tilt the steering column assembly up and down to make sure that the power steering motor wire harness and torque sensor wire harness do not interfere with any components.
  7. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the instrument panel (see INSTALLATION ).

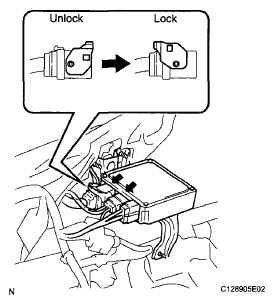

      Fig 4: Locating Power Steering ECU Connector
      G06003666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL COMBINATION SWITCH ASSEMBLY
    1. Install the turn signal switch onto the steering column with the clamp.
  9. INSTALL SPIRAL CABLE SUB-ASSEMBLY
    1. Install the spiral cable onto the turn signal switch.

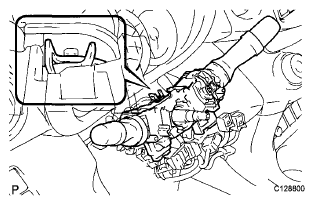

      Fig 5: Locating Turn Signal Switch
      G06003641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect all the connectors to the turn signal switch with spiral cable.
  10. INSTALL STEERING COLUMN COVER
    NOTE: Failure to follow the correct installation procedure may create a gap between the upper and lower steering column covers.

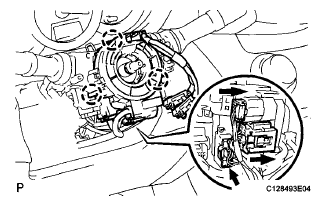

    Fig 6: Installing Spiral Cable Onto Turn Signal Switch
    G06003668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 4 clips, 3 claws, and 2 pins to install the upper steering column cover.

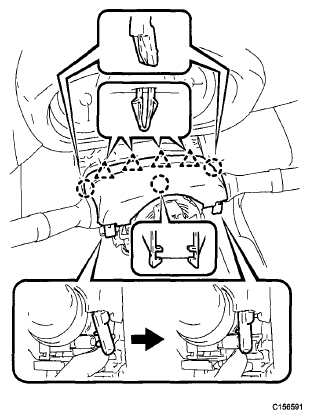

      Fig 7: Identifying Upper Steering Column Cover Clips, Claws And Pins
      G06003669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the lower steering column cover.
      Fig 8: Identifying Lower Steering Column Cover Claws
      G06003670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 claws.

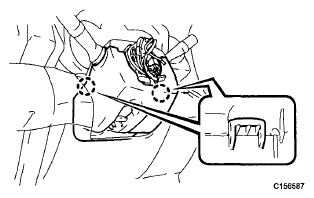

      Fig 9: Identifying Lower Steering Column Cover Claws
      G06003636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the claw.
      Fig 10: Identifying Lower Steering Column Cover Claws
      G06003637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks and install the steering wheel onto the steering column.
    2. Install the nut.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Connect all the connectors to the spiral cable.
  12. INSTALL STEERING PAD  (See INSTALLATION )
  13. POSITION FRONT WHEELS FACING STRAIGHT AHEAD

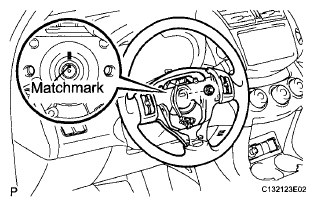

    Fig 11: Installing Steering Wheel Onto Steering Column
    G06003673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (see CHECK MODE PROCEDURE ).
