Steering Lock Motor Drive Power Circuit: Wiring Diagram

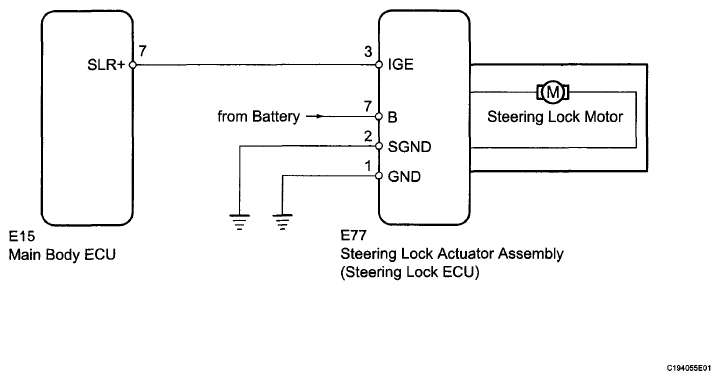

Fig 1: Steering Lock Motor Drive Power - Wiring Diagram
G06003611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
