Unlock Position Sensor Signal Circuit: Wiring Diagram

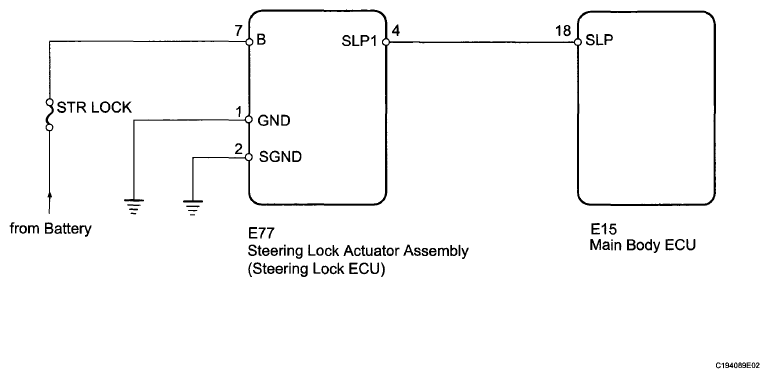

Fig 1: Unlock Position Sensor Signal - Wiring Diagram
G06003614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
