Transfer Assembly: Installation

INSTALL TRANSFER ASSEMBLY
1. Install the transfer to the transaxle with the 6 nuts and 2 bolts.
  Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)
INSTALL REAR ENGINE MOUNTING BRACKET (for 2GR-FE) (See INSPECTION )

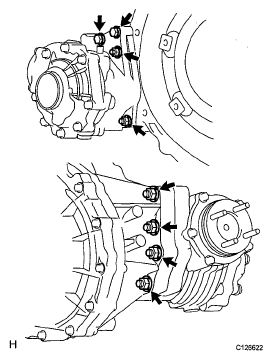

Fig 1: Locating Transfer Assembly Nuts And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ENGINE MOUNTING BRACKET (for 2AR-FE) (See TORQUE CONVERTER AND DRIVE PLATE )
INSTALL ENGINE ASSEMBLY WITH AUTOMATIC TRANSAXLE
1. for 2GR-FE:
  Install the engine with automatic transaxle (see INSTALLATION ).
2. for 2AR-FE:
  Install the engine with automatic transaxle (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
