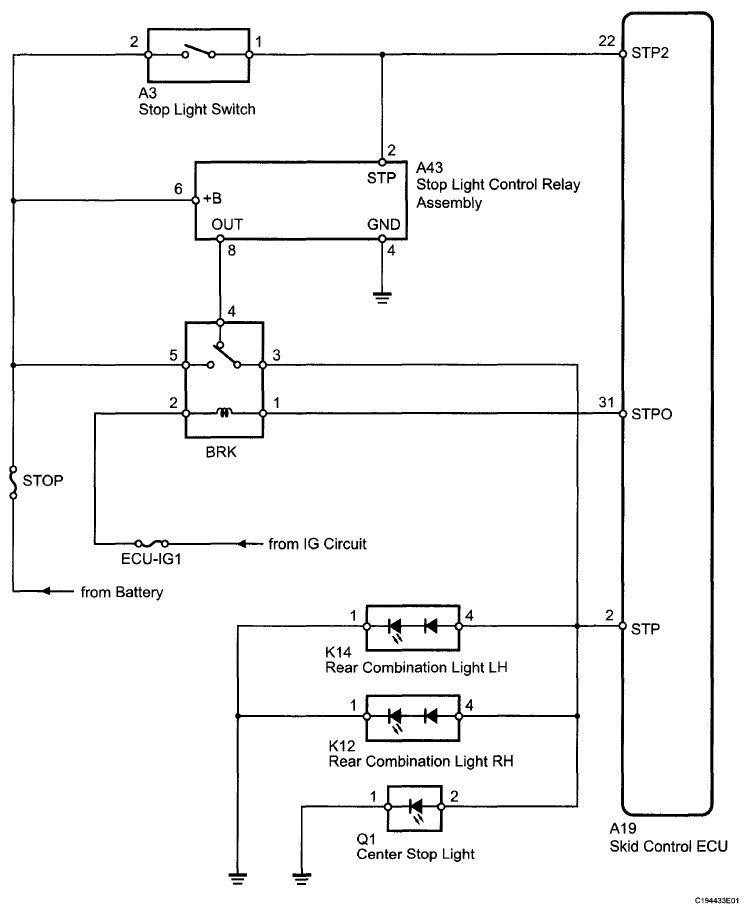

DTC C1425 Open in Stop Light Switch Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
