Camshaft Timing Oil Control Valve Assembly: Components

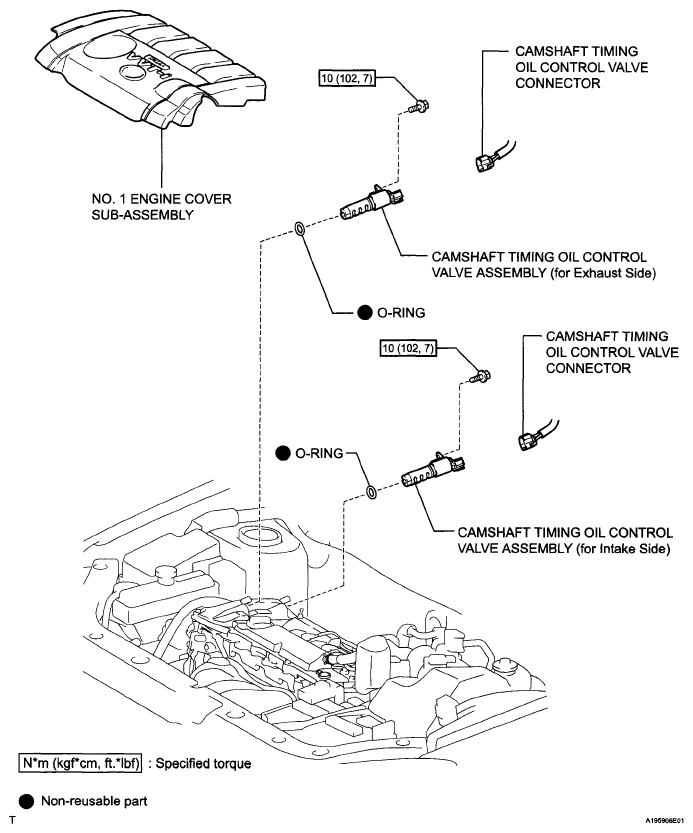

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications
G05997142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
