Fuel Pump Control Circuit: Wiring Diagram

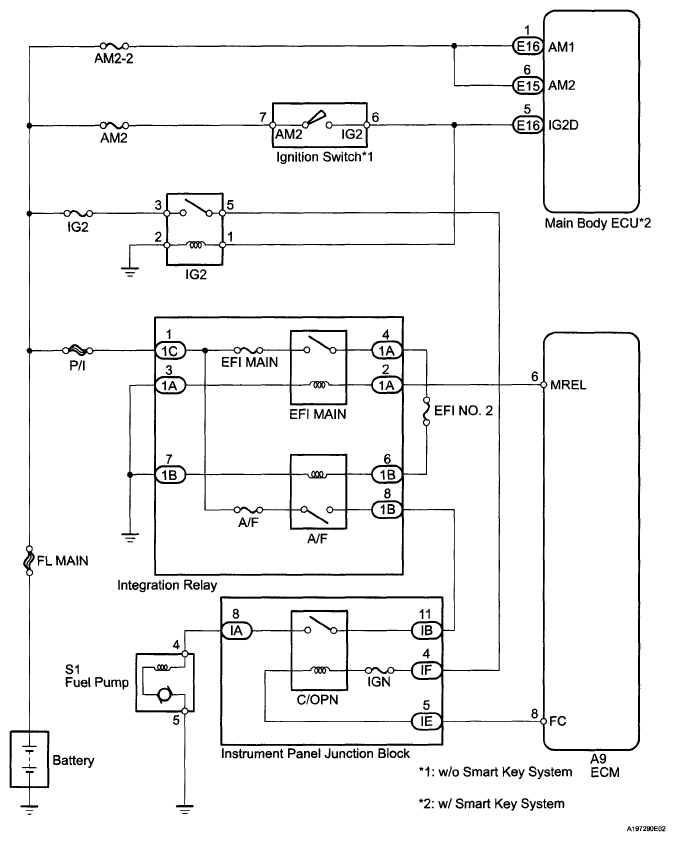

Fig 1: Fuel Pump Control Circuit - Wiring Diagram
G05997117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
