Knock Sensor: Components

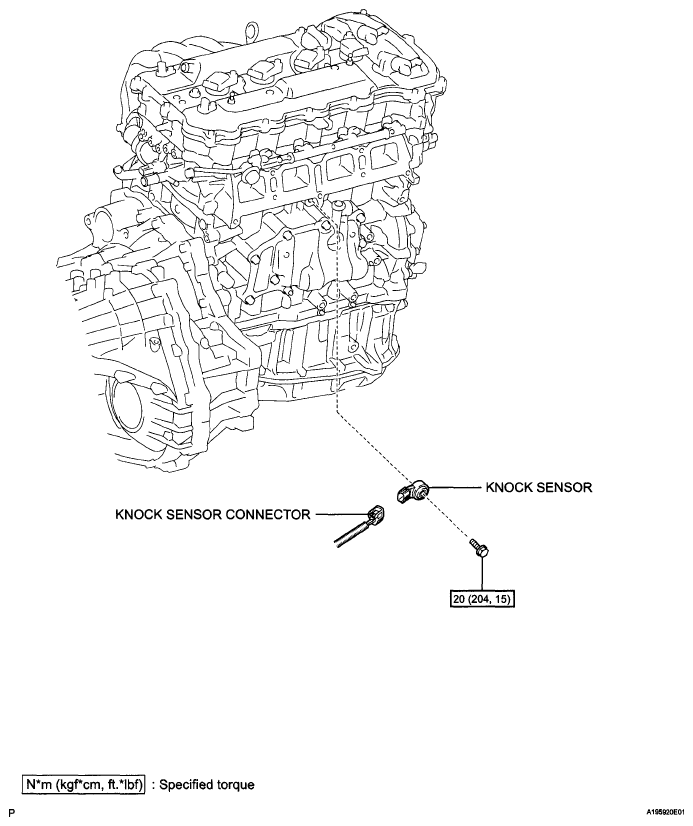

Fig 1: Lnock Sensor Replacement Components With Torque Specifications
G05997206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
