System Diagram

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. DOOR BUS LINES

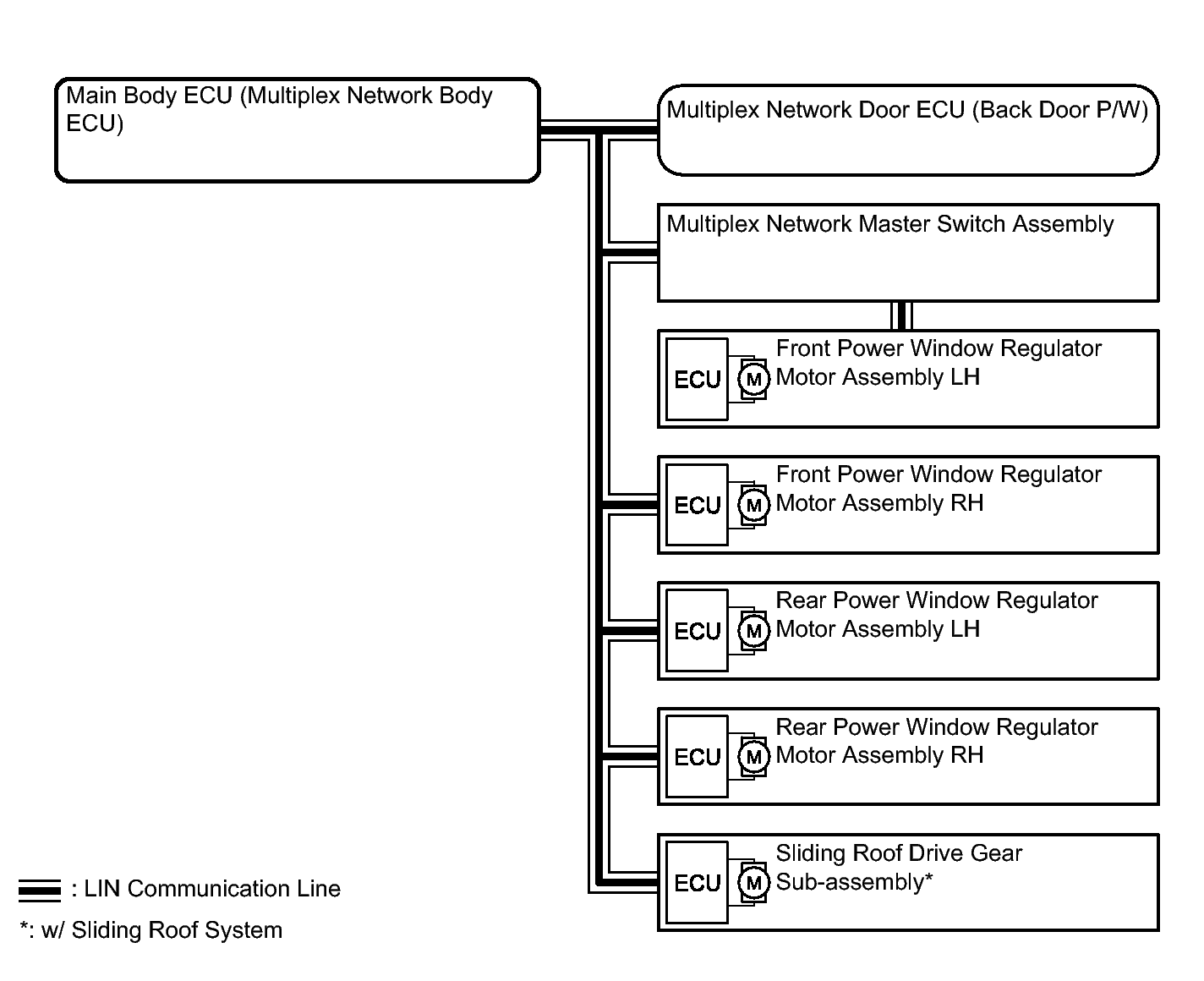

    Fig 1: Identifying Lin Communication System Diagram - Door Bus Lines
    GTY217739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION ECU LINES (w/ Smart Key System)

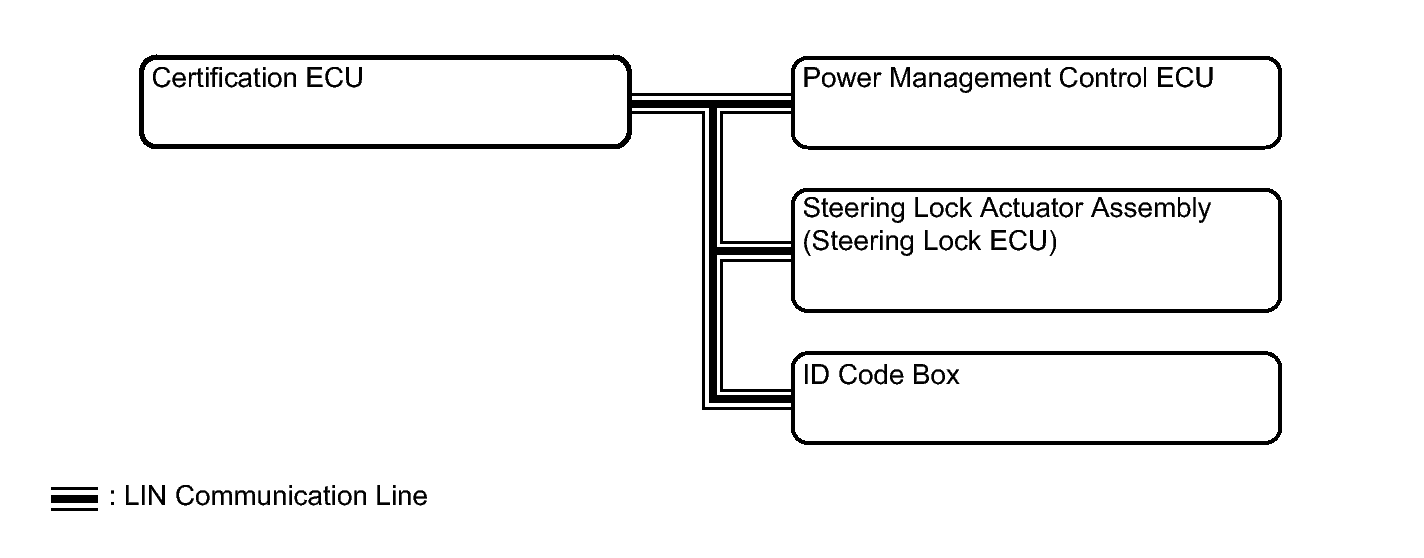

    Fig 2: Identifying Lin Communication System Diagram - Certification ECU Lines (w/ Smart Key System)
    GTY215019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES

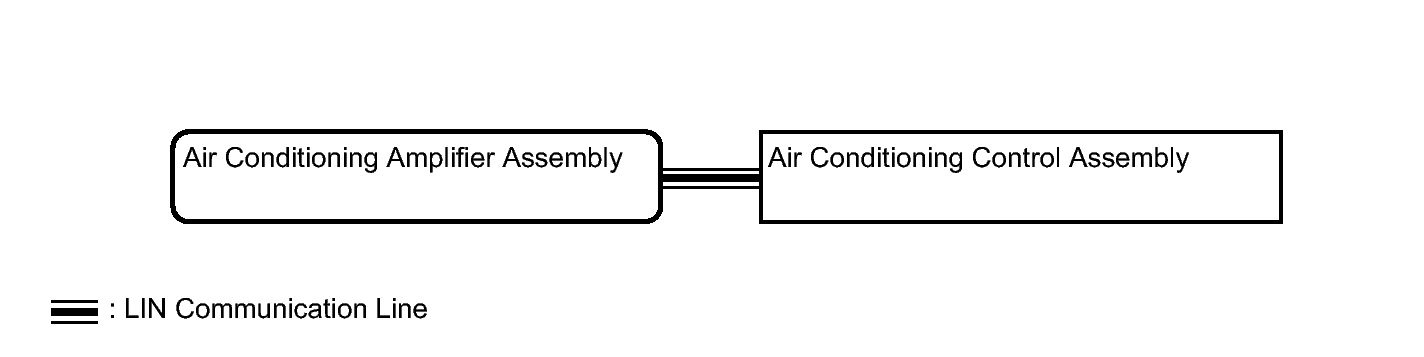

    Fig 3: Identifying Lin Communication System Diagram - Air Conditioning Bus Lines
    GTY225661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SUB-LIN BUS LINES

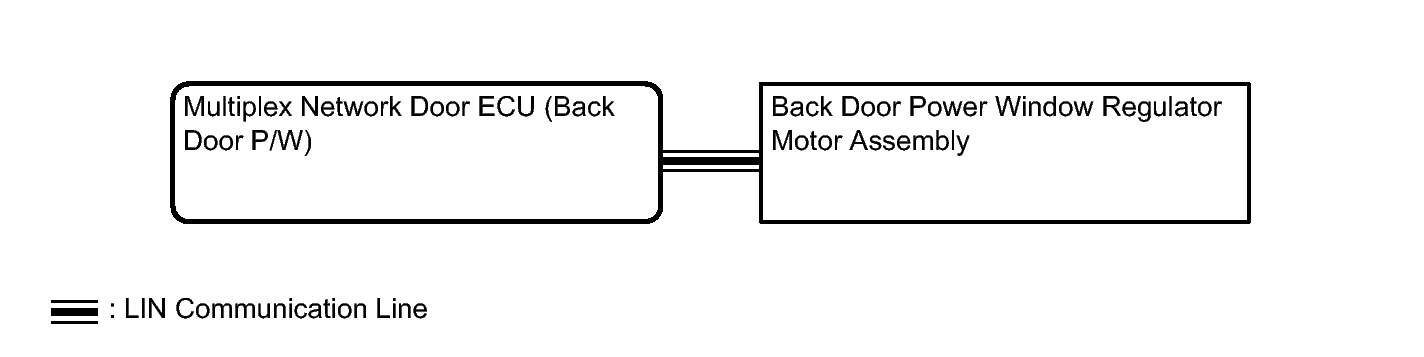

    Fig 4: Identifying Lin Communication System Diagram - Sub-Lin Bus Lines
    GTY213843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DRIVE MONITOR SWITCH BUS LINES (w/ CRAWL Control)

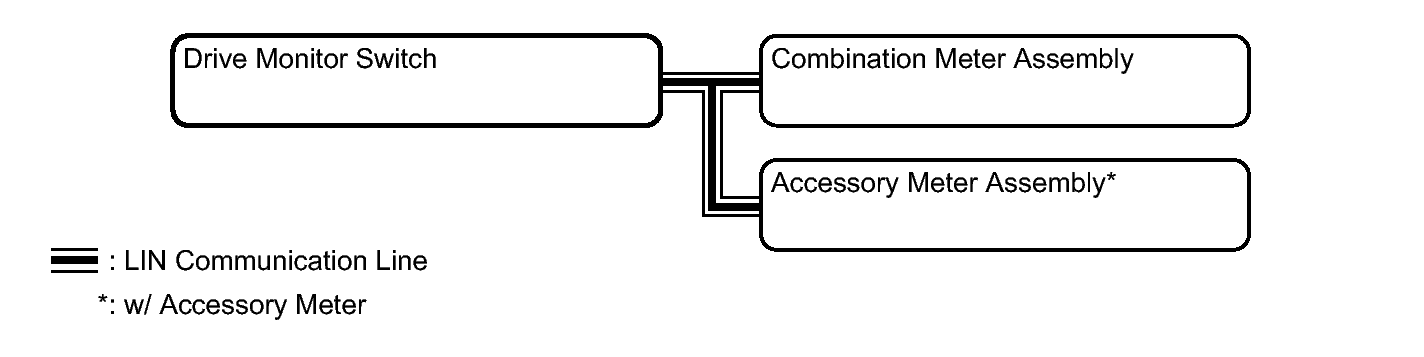

    Fig 5: Identifying Lin Communication System Diagram - Drive Monitor Switch Bus Lines (w/ CRAWL Control)
    GTY232325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
