Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to new 4 O-rings of the oil control valves.
2. Install the O-rings to the 4 oil control valves.

  Fig 1: Identifying O-Rings Of Oil Control Valves
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 oil control valves with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE: Make sure that the O-ring is not cracked or jammed.
4. Connect the 4 oil control valve connectors.
INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See INSTALLATION )
CHECK FOR ENGINE OIL LEAKS
1. Start the engine, and check that there are no oil leaks.

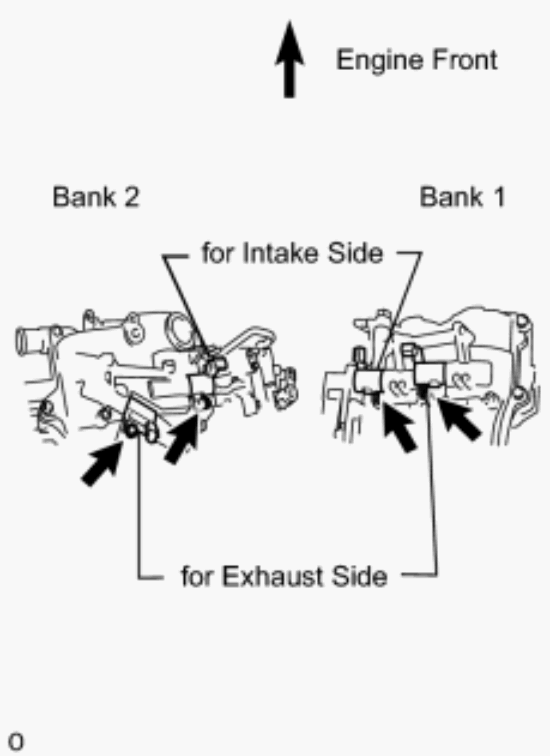

  Fig 2: Locating Oil Control Valves Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
