Cranking Holding Function Circuit: Wiring Diagram

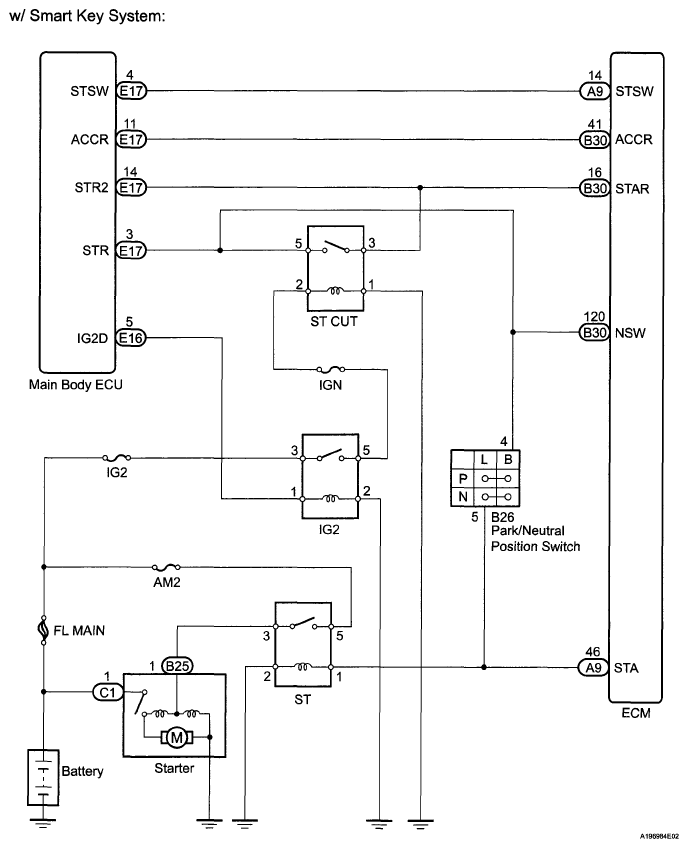

Fig 1: Starter Relay - Wiring Diagram (W/ Smart Key System)
G05997483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
