Fuel Pump Control Circuit: Wiring Diagram

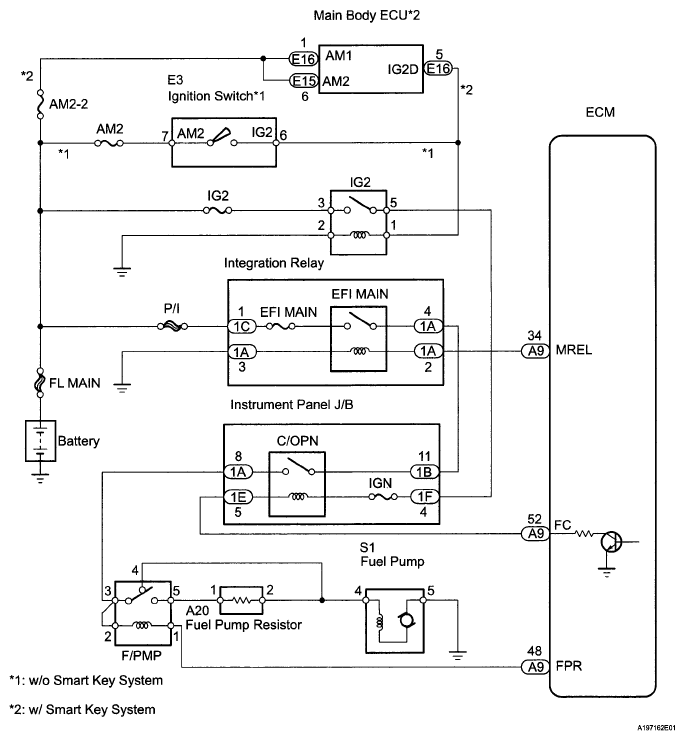

Fig 1: Fuel Pump - Wiring Diagram

G05997377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
