Knock Sensor: Components

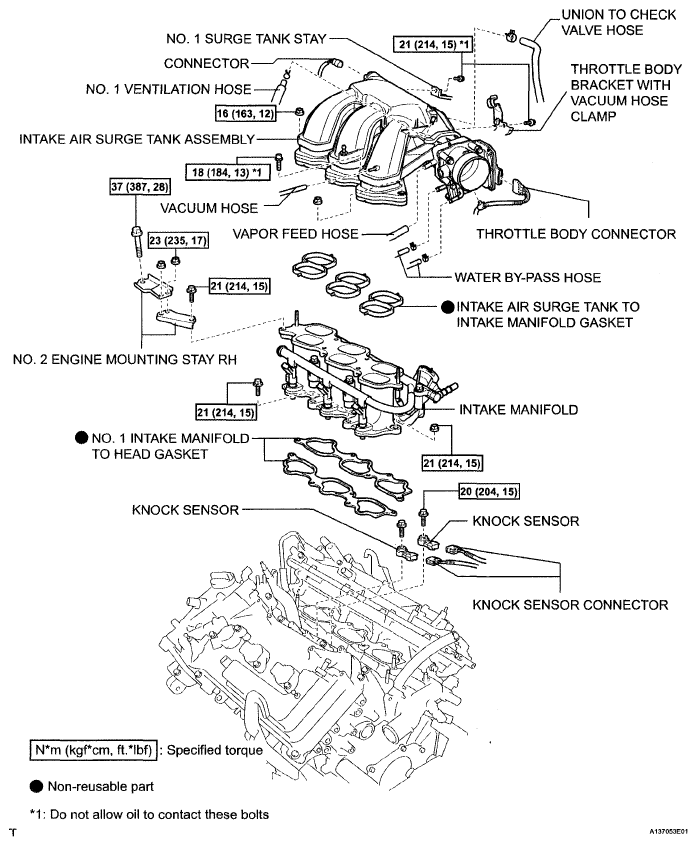

Fig 1: Knock Sensor Replacement Components With Torque Specifications
G05184283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
