MIL Circuit: Wiring Diagram

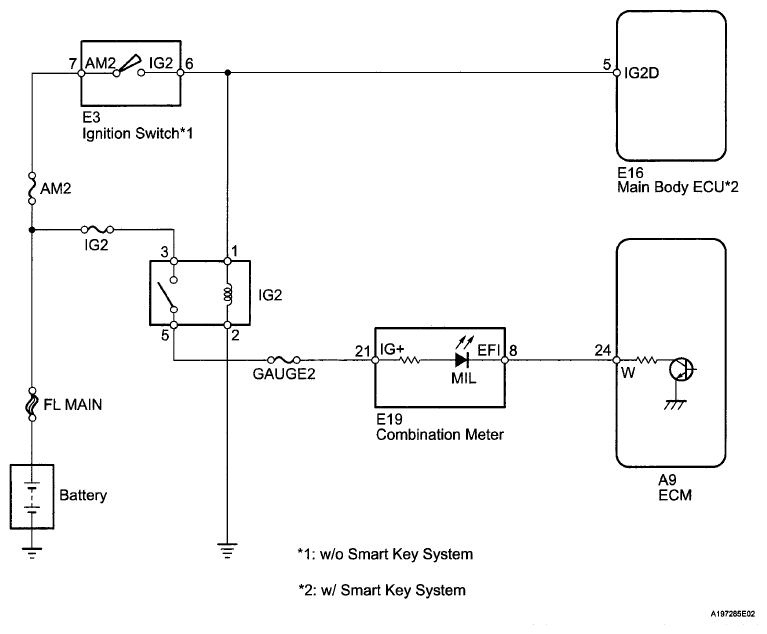

Fig 1: MIL Circuit Diagram

G05997621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
