Inspection Procedure

  1. CHECK MIL
    1. Check that the Malfunction Indicator Lamp (MIL) lights up when turning the ignition switch to ON.

      OK: MIL lights up.

      OK: SYSTEM OK

      NG: Go to next step

  2. CHECK COMMUNICATION BETWEEN TECHSTREAM AND ECM
    1. Connect Techstream to the DLC3.
    2. Turn the ignition switch to ON and turn the tester ON.
    3. Check the communication between the tester and ECM.

      Result

      RESULT CHART

      Result Proceed to
      Communication is possible A
      Communication is not possible B

      A: GO TO MIL CIRCUIT

      B: Go to next step

  3. CHECK MIL (THROTTLE POSITION SENSOR)
    1. Disconnect the B3 throttle body connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the throttle body connector.

      A: REPLACE THROTTLE BODY ASSEMBLY

      B: Go to next step

  4. CHECK MIL (ACCELERATOR PEDAL POSITION SENSOR)
    1. Disconnect the A4 accelerator pedal position sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the accelerator pedal position sensor connector.

      A: REPLACE ACCELERATOR PEDAL POSITION SENSOR

      B: Go to next step

  5. CHECK MIL (VVT SENSOR FOR BANK 1 INTAKE SIDE)
    1. Disconnect the B59 VVT sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor connector.

      A: REPLACE VVT SENSOR (FOR BANK 1 INTAKE SIDE)

      B: Go to next step

  6. CHECK MIL (VVT SENSOR FOR BANK 1 EXHAUST SIDE)
    1. Disconnect the B54 VVT sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor connector.

      A: REPLACE VVT SENSOR (FOR BANK 1 EXHAUST SIDE)

      B: Go to next step

  7. CHECK MIL (VVT SENSOR FOR BANK 2 EXHAUST SIDE)
    1. Disconnect the B40 VVT sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor connector.

      A: REPLACE VVT SENSOR (FOR BANK 2 EXHAUST SIDE)

      B: Go to next step

  8. CHECK MIL (VVT SENSOR FOR BANK 2 INTAKE SIDE)
    1. Disconnect the B45 VVT sensor connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.

      Result

      RESULT CHART

      Result Proceed to
      MIL Illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor connector.

      A: REPLACE VVT SENSOR (FOR BANK 2 INTAKE SIDE)

      B: Go to next step

  9. CHECK MIL (CANISTER PUMP MODULE)
    1. Disconnect the S3 canister pump module connector.
    2. Turn the ignition switch to ON.
    3. Check the MIL.
      Fig 1: Disconnecting S3 Canister Pump Module Connector
      G05183781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the canister pump module connector.

      A: REPLACE CHARCOAL CANISTER ASSEMBLY

      B: Go to next step

  10. CHECK WIRE HARNESS
    1. Disconnect the B3 throttle body connector.
    2. Disconnect the A4 accelerator pedal position sensor connector.
    3. Disconnect the S3 canister pump module connector.
    4. Disconnect the B59 VVT sensor connector.
    5. Disconnect the B45 VVT sensor connector.
    6. Disconnect the B54 VVT sensor connector.
    7. Disconnect the B40 VVT sensor connector.
    8. Disconnect the A9 and B30 ECM connectors.
    9. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      B30-80 (VCTA) - Body ground 10 kΩ or higher
      A9-57 (VCPA) - Body ground 10 kΩ or higher
      A9-59 (VCP2) - Body ground 10 kΩ or higher
      B30-67 (VCV1) - Body ground 10 kΩ or higher
      B30-66 (VCV2) - Body ground 10 kΩ or higher
    10. Reconnect the throttle body connector.
    11. Reconnect the accelerator pedal position sensor connector.
    12. Reconnect the canister pump module connector.
    13. Reconnect the VVT sensor connectors.
    14. Reconnect the ECM connectors.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

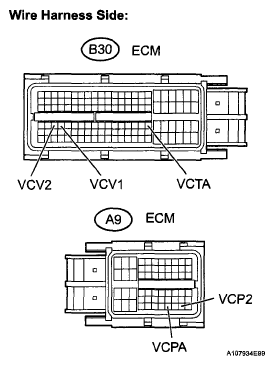

      Fig 2: Identifying A9 And B30 ECM Connector Terminals
      G05997599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: REPLACE ECM
