System Diagram

WARNING: This page is about a different variant/trim than selected.

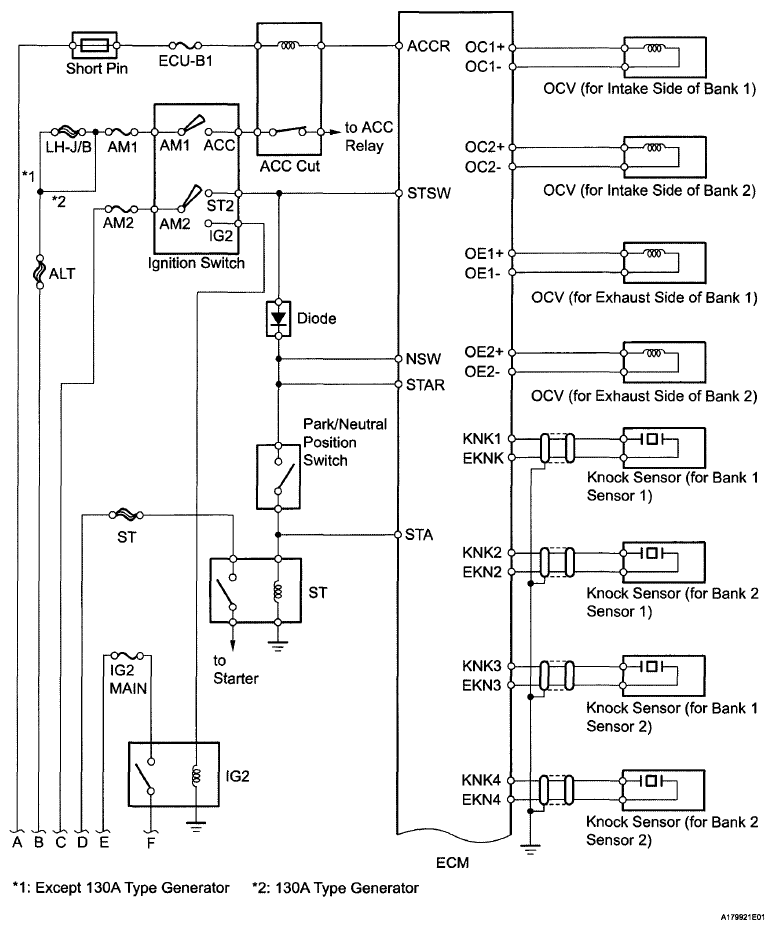

Fig 1: SFI System Diagram (1 Of 6)
G06220506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

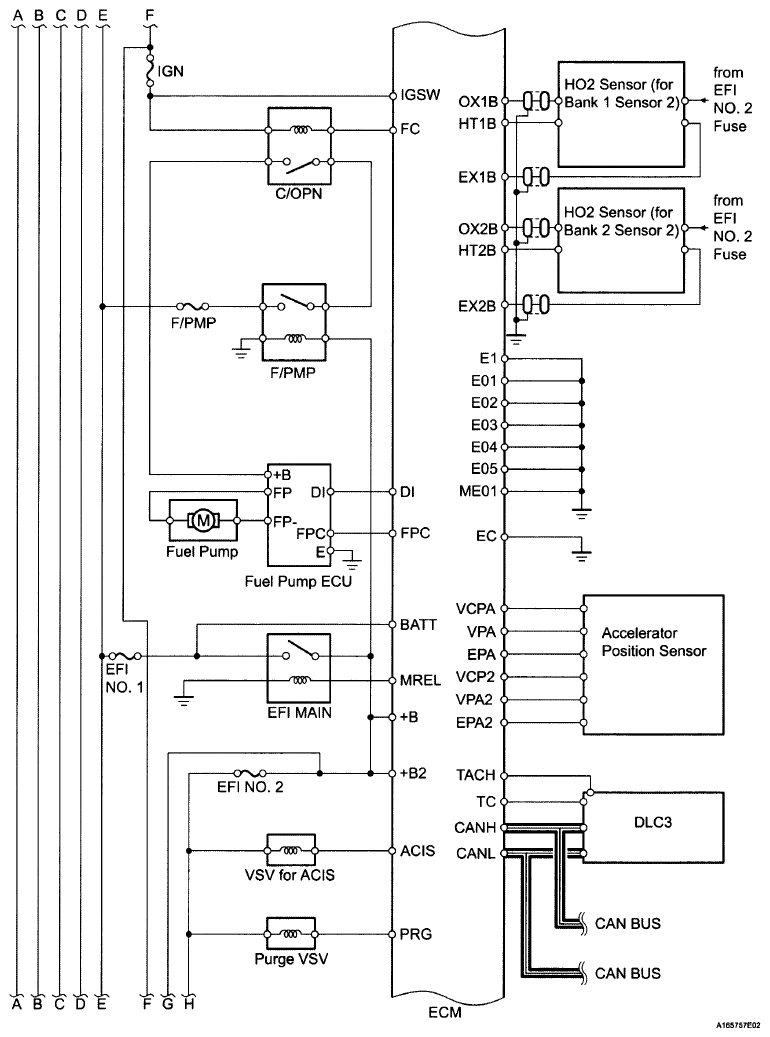

Fig 2: SFI System Diagram (2 Of 6)
G06220507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

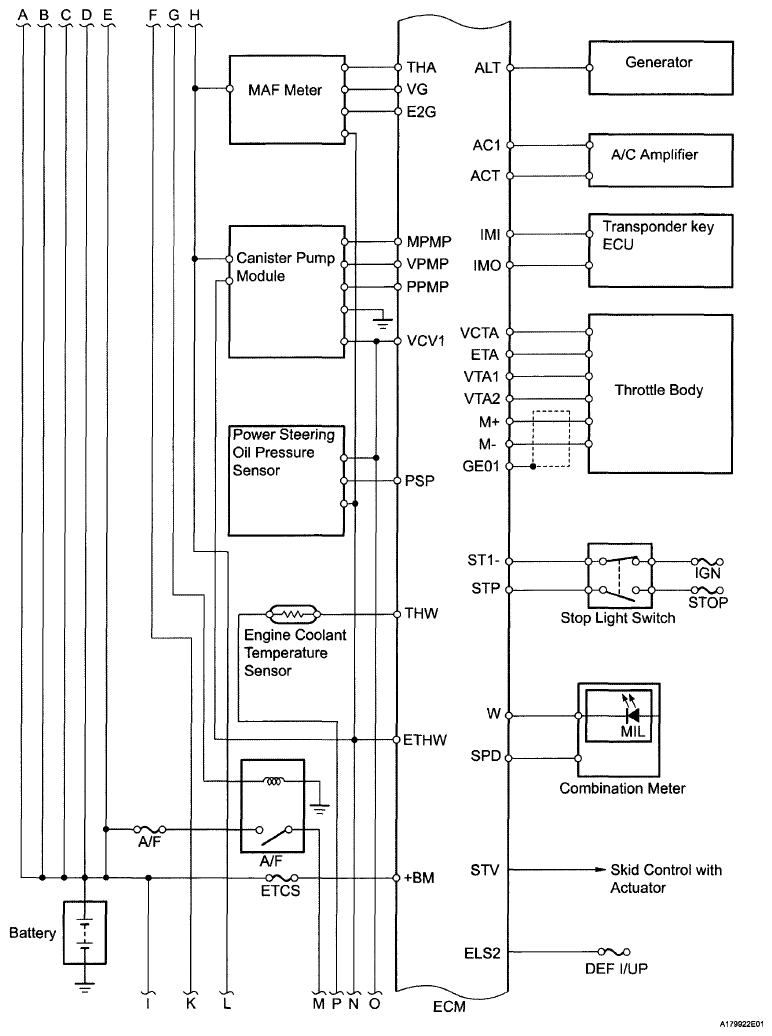

Fig 3: SFI System Diagram (3 Of 6)
G06220508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

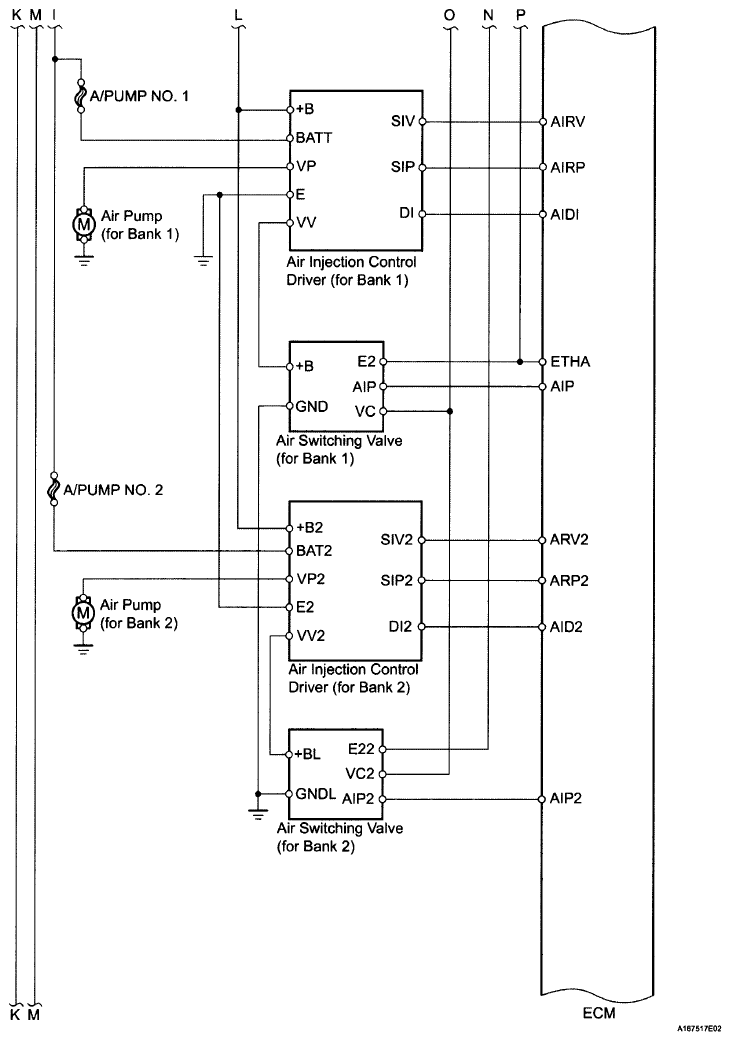

Fig 4: SFI System Diagram (4 Of 6)
G06220509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

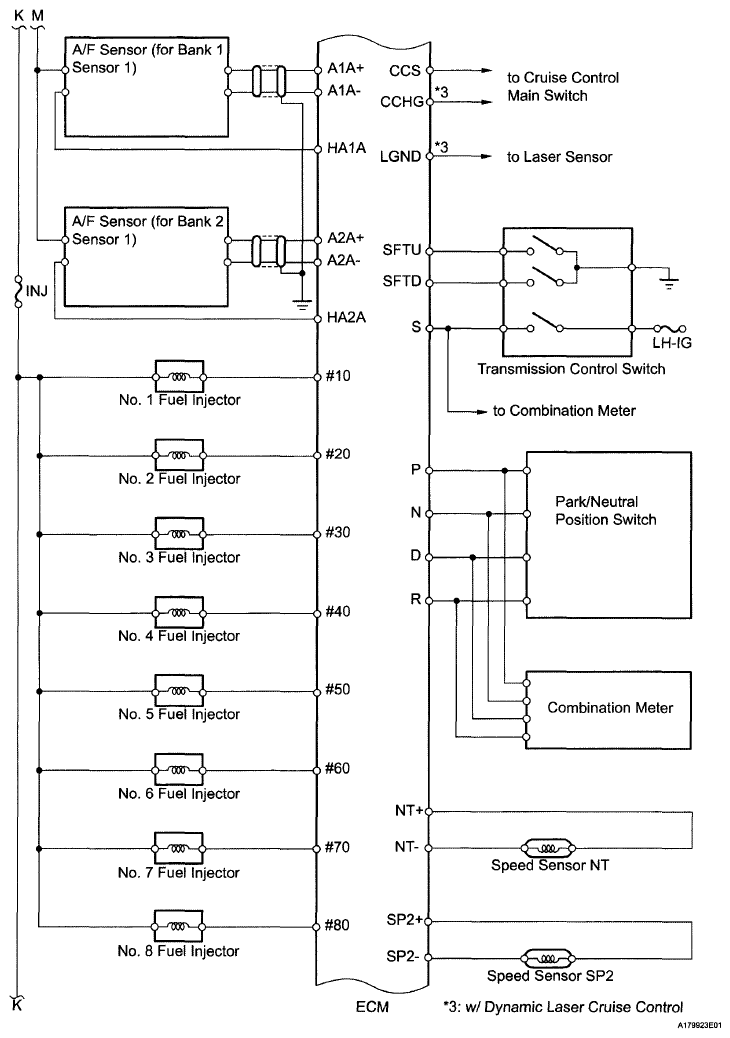

Fig 5: SFI System Diagram (5 Of 6)
G06220510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

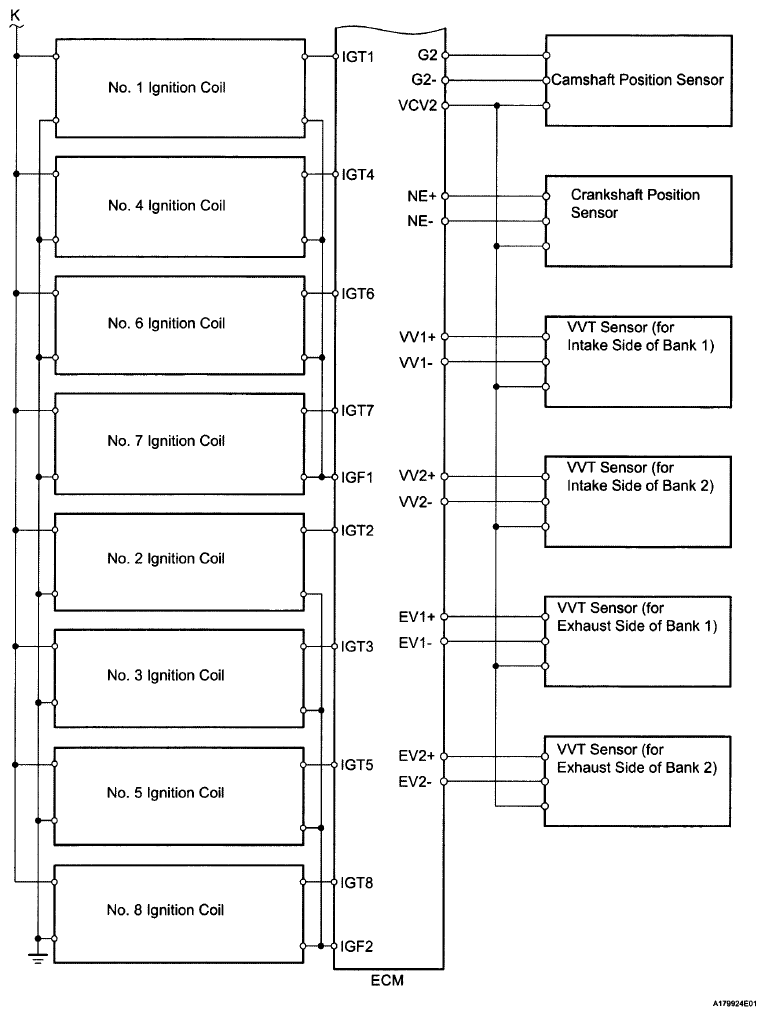

Fig 6: SFI System Diagram (6 Of 6)
G06220511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
