Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Component Amplifier: Wiring Diagram

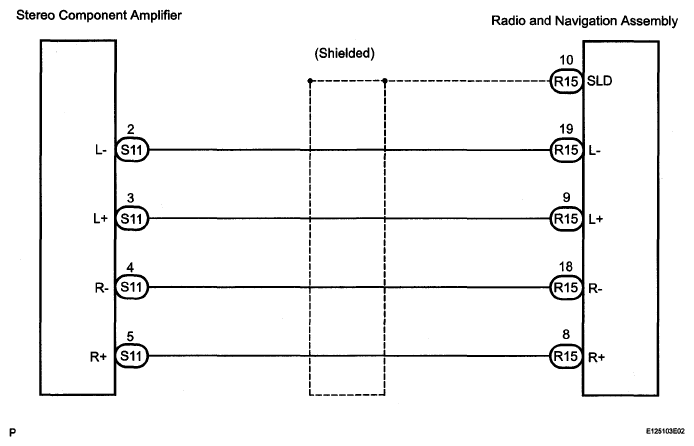

Fig 1: Sound Signal Circuit - Wiring Diagram
G05141413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
