Vehicle Speed Signal Circuit Between Navigation Receiver Assembly And Combination Meter: Wiring Diagram

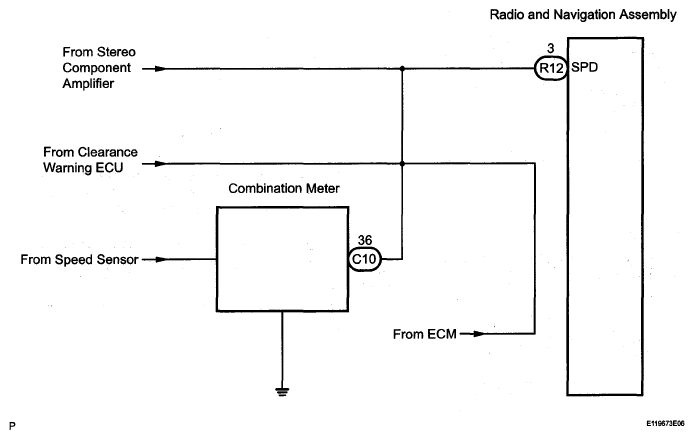

Fig 1: Navigation Receiver Assembly - Wiring Diagram
G05141384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
