Inspection Procedure

NOTE:
  • When replacing the tire pressure warning ECU, read the IDs stored in the old ECU using Techstream and write them down before removal.
  • It is necessary to perform initialization (see INITIALIZATION  ) after registration (see REGISTRATION  ) of the transmitter IDs into the tire pressure warning ECU after the ECU and/or the tire pressure warning valve and transmitter has been replaced.
  1. READ OUTPUT DTC (DTC C2174/74)
    1. Turn the ignition switch off.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch on (IG) and turn the tester on.
    4. Enter the following menus;
      1. Select: Chassis / Tire Pressure Monitor / Trouble Codes/
    5. Read DTCs.

      Result

      RESULT REFERENCE

      Result Proceed to
      DTC C2174/74 is not output A
      DTC C2174/74 is output B
      NOTE: When DTC C2174/74 is output, troubleshoot that DTC first. Then troubleshoot DTCs C2121/21 to C2124/24.

    B: GO TO DTC C2174/74

    A: Go to next step.

  2. CHECK FREQUENCY RECEIVING CONDITION
    1. Check if the vehicle is in conditions such as the ones described below:
      1. Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

        HINT:

        If the vehicle is located in areas described above, the tire pressure warning light may blink for a minute and turn on in a particular area.

      2. Devices using similar radio frequencies are used in the vehicle.

        OK: Facilities, or devices that use similar radio frequencies are not located in the vicinity of the vehicle.

        HINT:

        Radio frequency may be interrupted due to surroundings or devices installed by the user.

    NG: CHECK IF ANY DEVICE IS INSTALLED BY USER

    OK: Go to next step.

  3. IDENTIFY TRANSMITTER CORRESPONDING TO DTC
    1. Set the tire pressure to the appropriate specified values (see TIRE PRESSURE WARNING SYSTEM  ).
    2. Turn the ignition switch OFF.
    3. Connect Techstream to the DLC3.
    4. Turn the ignition switch ON and the tester ON.
    5. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    6. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or-100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire inflation Pressure ID2 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure /637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      *: It may take about 5 to 6 minutes until the values are displayed.
    7. Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm2 , 5.8 psi) within 30 seconds.
    8. Check the DATA LIST.
      NOTE:
      • It may take about 5 to 6 minutes to display the updated tire pressure data.
      • When no "ID Tire Inflation Pressure" data has changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270°. Then rapidly release the tire pressure and recheck it.
      • Record the "ID Tire Inflation Pressure" data transmitter ID that corresponds to each tire.
    9. After confirming that the "ID Tire Inflation Pressure" data for one tire (ID1 to ID4) has changed, repeat this procedure for the other tires. Identify the transmitter that corresponds to the DTC.

      Result

      RESULT REFERENCE

      Condition Proceed to
      All abnormal A
      One or more transmitters are abnormal B
      All normal C

    B:  Go to step  5

    C: END

    A: Go to next step.

  4. CHECK HARNESS AND CONNECTOR (ECU - RECEIVER)
    1. Disconnect the T15 ECU connector.
    2. Disconnect the T16 receiver connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      T15-12 (RDA) - T16-1 (RDA) Always Below 1 Ω
      T15-11 (GND2) - T16-4 (GND) Always Below 1 Ω
      T15-6 (RF5V) - T16-5 (+5V) Always Below 1 Ω
      T15-12 (RDA) - Body ground Always 10 kΩ or higher
      T15-11 (GND2) - Body ground Always 10 kΩ or higher
      T15-6 (RF5V) - Body ground Always 10 kΩ or higher

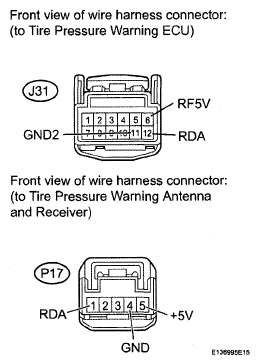

      Fig 1: Identifying J31 And P17 Connector Terminal
      G05159679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  5. CHECK TRANSMITTER ID
    1. Turn the ignition switch OFF.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch ON and the tester ON.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
    6. Check the transmitter ID on the identified transmitter by removing it from the tire and wheel.
      Fig 2: Identifying Tire Pressure Warning Valve And Transmitter
      G05139510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Confirm that the transmitter ID on the transmitter and recorded transmitter ID match.

      Result

      RESULT REFERENCE

      Result Proceed to
      Match A
      Do not match B

    B:  Go to step  7

    A: Go to next step.

  6. REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Replace the tire pressure warning valve and transmitter (see REMOVAL  ).
  7. REGISTRATION OF TRANSMITTER ID
    1. Perform registration (see REGISTRATION  ).
  8. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION  ).
  9. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch OFF.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch ON and turn the tester ON.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure /637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or-100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      • *: It may take about 5 to 6 minutes until the values are displayed.
      • When no "ID Tire Inflation Pressure" has changed, rotate the tire 90 to 270°. Then recheck it.

      Result

      RESULT REFERENCE

      Result Proceed to
      Tire pressure values are not displayed. A
      All tire pressure readings are equal to specified values. B

    B: END

    A: Go to next step.

  10. REPLACE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
    1. Replace the tire pressure warning antenna and receiver (see REMOVAL  ).
  11. CONFIRM TIRE INFLATION PRESSURE (DATA LIST)
    1. Turn the ignition switch OFF.
    2. Connect Techstream to the DLC3.
    3. Turn the ignition switch ON and the tester ON.
    4. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
    5. Check the values by referring to the table below.

      Tire Pressure Monitor

      TIRE PRESSURE RANGE REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ID1 Tire Inflation Pressure ID1 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID2 Tire Inflation Pressure ID2 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID3 Tire Inflation Pressure ID3 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      ID4 Tire Inflation Pressure ID4 tire inflation pressure /
      min.: Absolute pressure / 0 kPa (0 kgf/cm2 , 0 psi), Relative pressure / -100 kPa (-1 kgf/cm2 , -14 psi)
      max.: Absolute pressure / 637.5 kPa (6.5 kgf/cm2 , 92 psi), Relative pressure / 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If 0 kPa (0 kgf/cm2 , 0 psi) is displayed for absolute pressure or -100 kPa (-1 kgf/cm2 , -14 psi) is displayed for relative pressure, data has not been received.*
      HINT:
      • *: It may take about 5 to 6 minutes until the values are displayed.
      • When no "ID Tire Inflation Pressure" has changed, rotate the tire 90 to 270°. Then recheck it.

      Result

      RESULT REFERENCE

      Result Proceed to
      All tire pressure readings are equal to specified values. A
      Tire pressure values are not displayed. B

    B: REPLACE TIRE PRESSURE WARNING ECU  (See REMOVAL  )

    A: END
