Engine Control: Notes

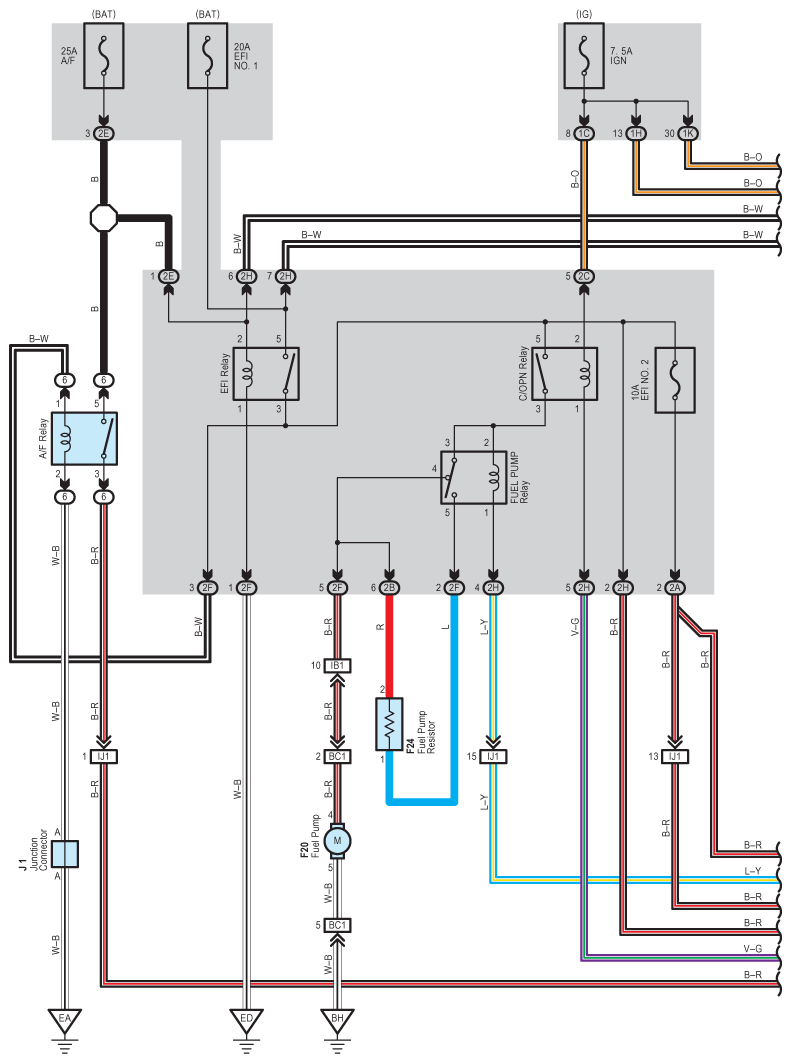

Fig 1: Engine Control - Circuit Diagram (1 Of 10)

G07609354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

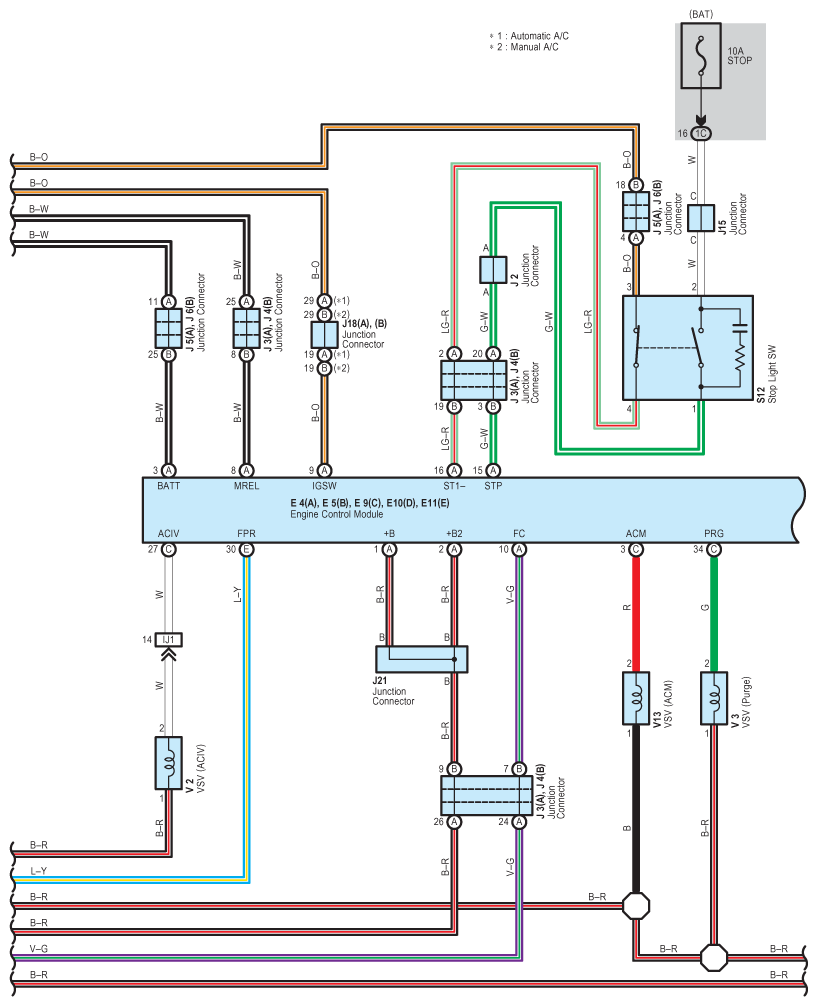

Fig 2: Engine Control - Circuit Diagram (2 Of 10)

G07609355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control - Circuit Diagram (3 Of 10)

G07609356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

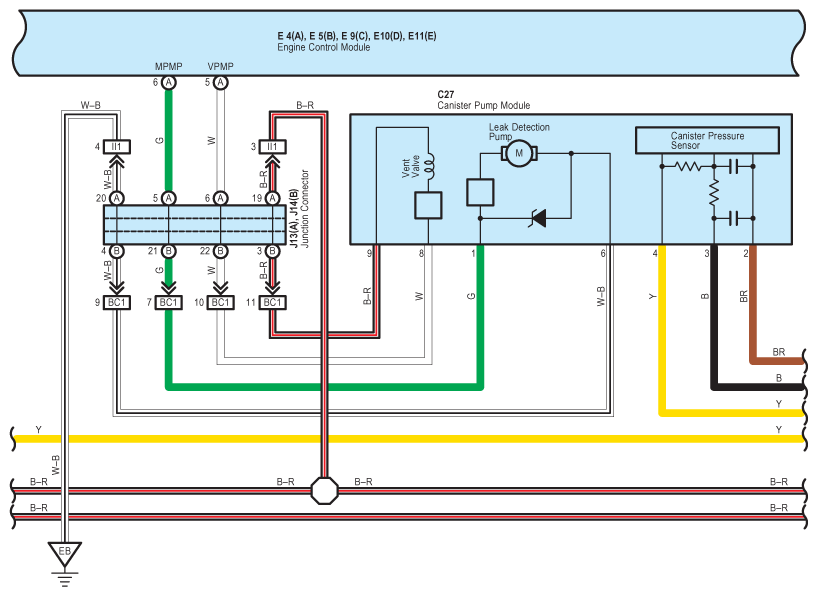

Fig 4: Engine Control - Circuit Diagram (4 Of 10)

G07609357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

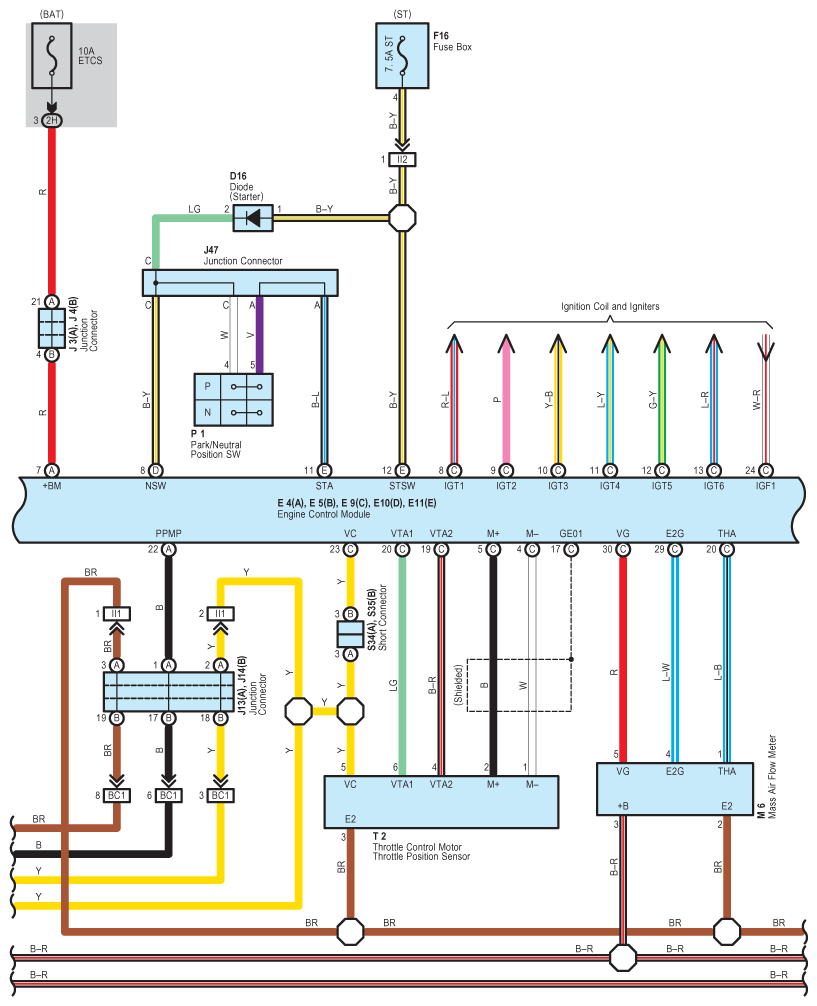

Fig 5: Engine Control - Circuit Diagram (5 Of 10)

G07609358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Control - Circuit Diagram (6 Of 10)

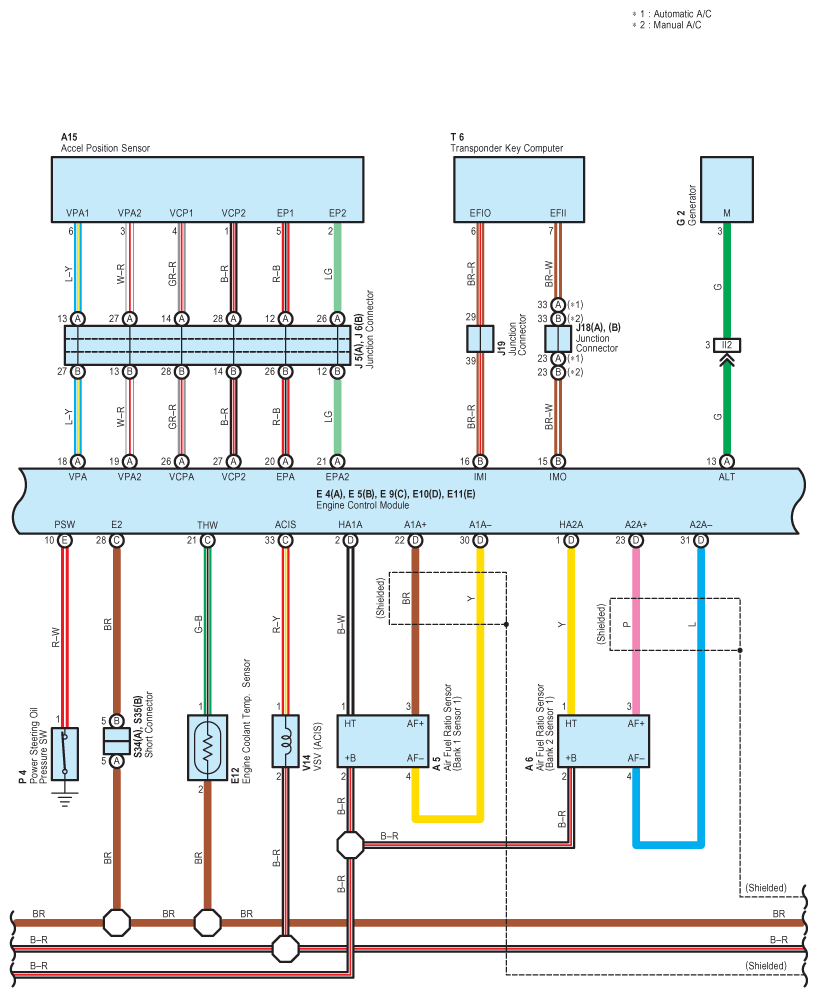

G07609359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

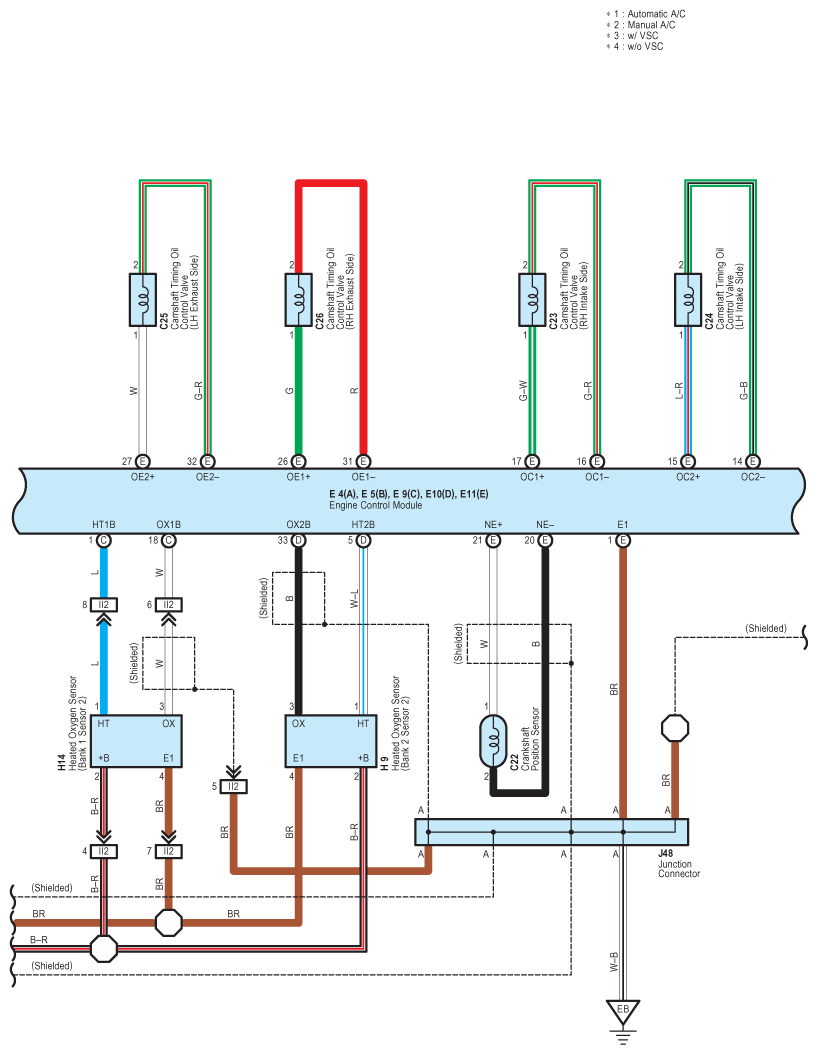

Fig 7: Engine Control - Circuit Diagram (7 Of 10)

G07609360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

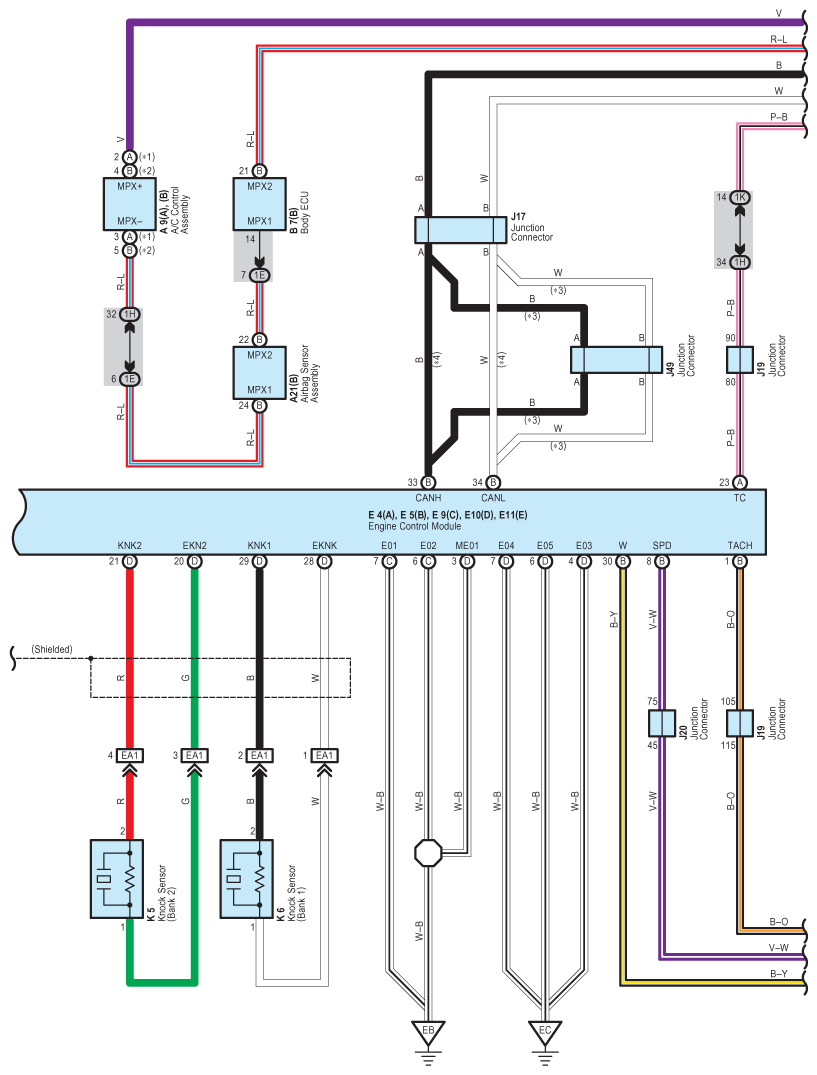

Fig 8: Engine Control - Circuit Diagram (8 Of 10)

G07609361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

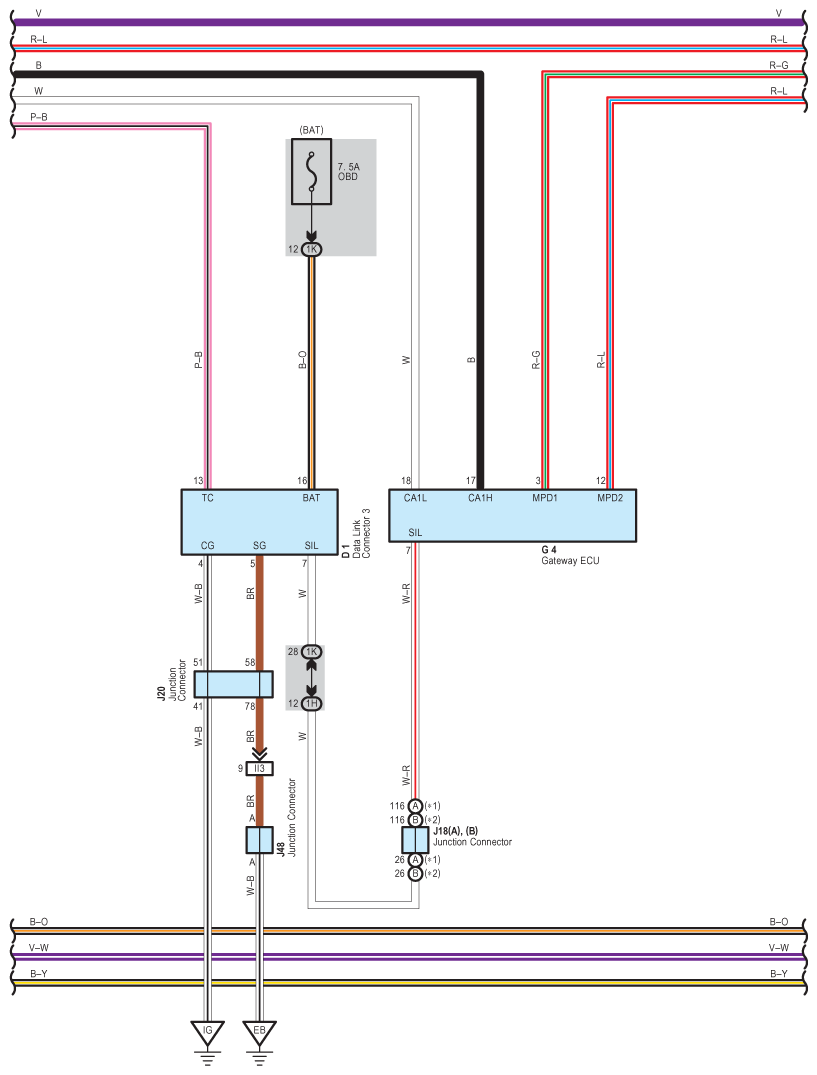

Fig 9: Engine Control - Circuit Diagram (9 Of 10)

G07609362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

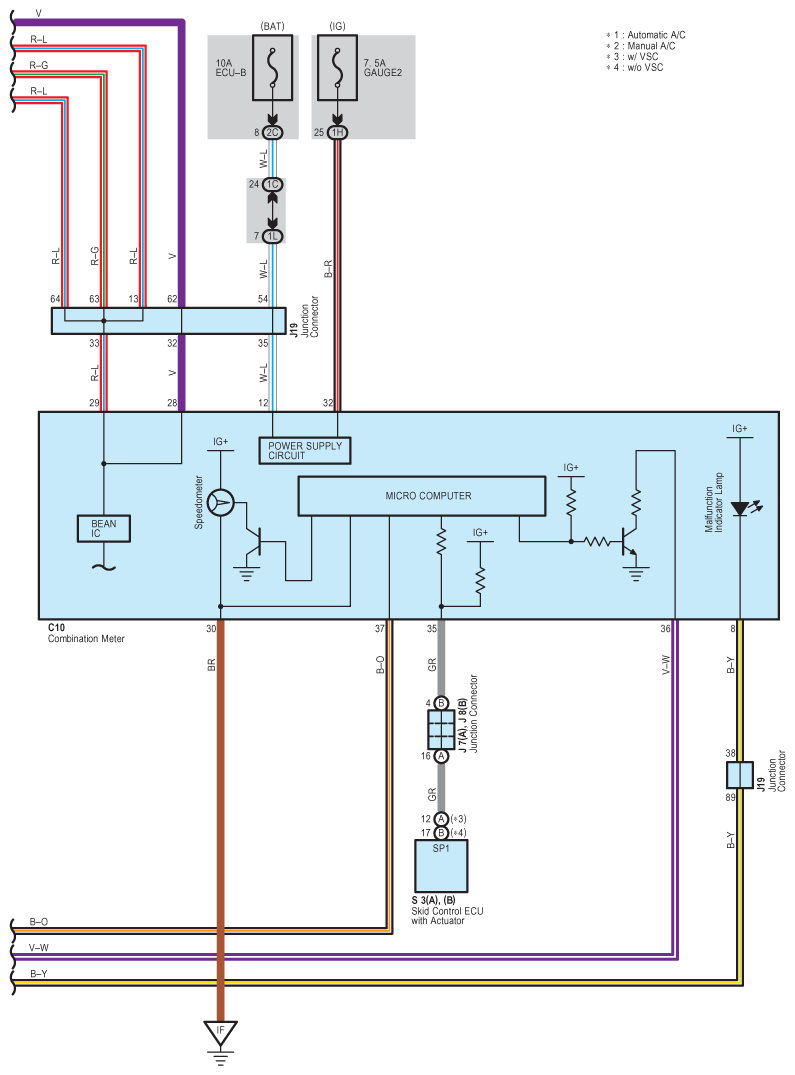

Fig 10: Engine Control - Circuit Diagram (10 Of 10)

G07609363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
