Headlight Beam Level Control: Notes

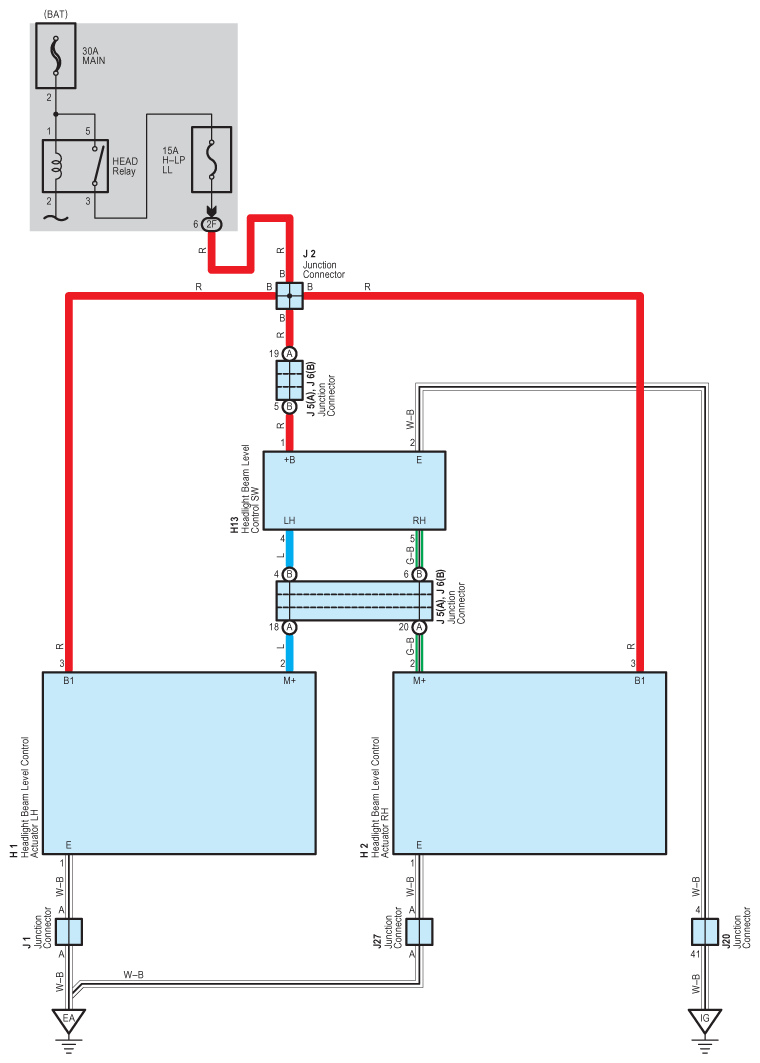

Fig 1: Headlight Beam Level Control - Circuit Diagram
G07609388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
