Vane Pump: Components

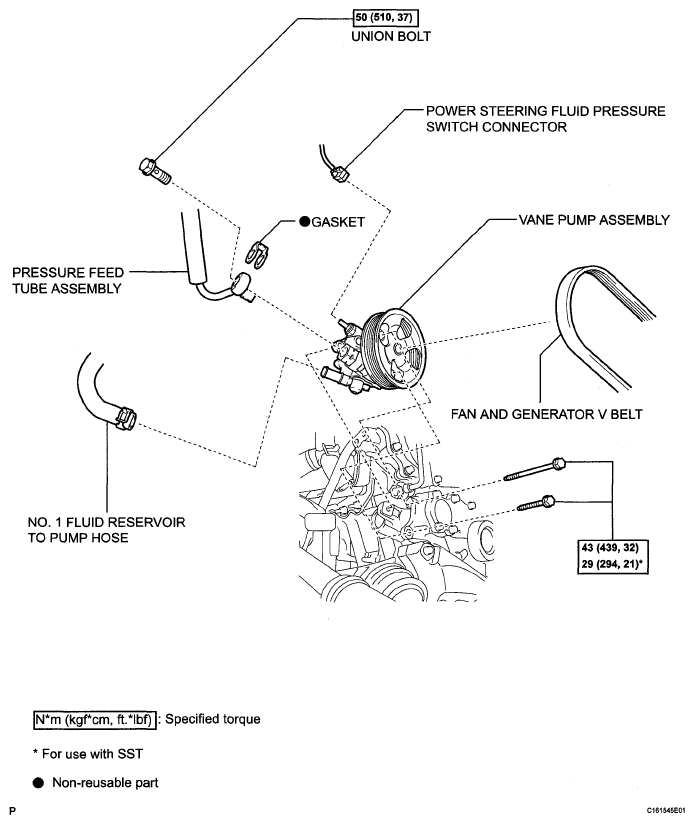

Fig 1: Power Steering Vane Pump With Torque Specification (1 Of 2)
G05140374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

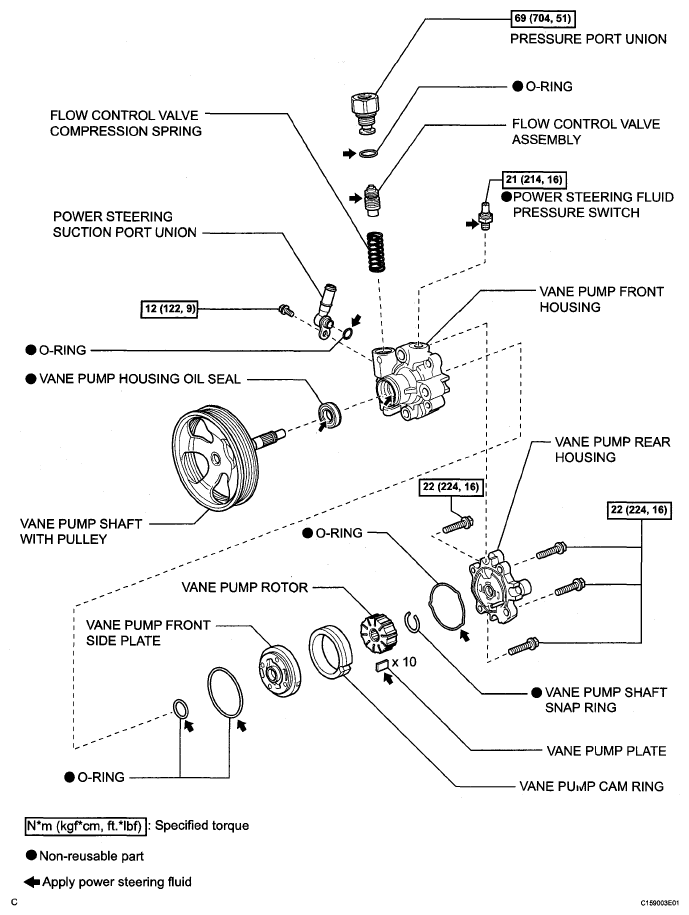

Fig 2: Power Steering Vane Pump With Torque Specification (2 Of 2)
G05140375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
