Power Outlet (12V Front): Notes

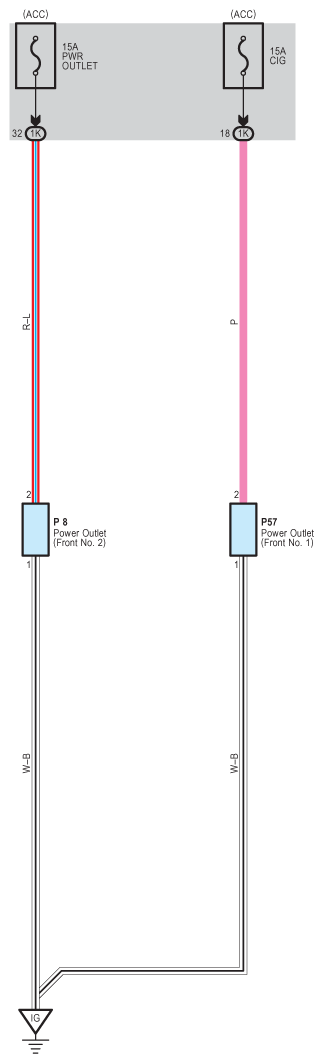

Fig 1: Power Outlet (12V Front) - Circuit Diagram
G07609509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
