Inspection Procedure

  1. CHECK CRANKING
    1. When starting the engine, check whether the starter motor starts.

      OK: Engine is cranking.

    OK: CHECK FOR INTERMITTENT PROBLEMS

    NG: Go to next step.

  2. READ VALUE OF TECHSTREAM (STA SIGNAL)
    1. Connect Techstream to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Turn the tester on.
    4. Select the following menu items: Powertrain / Engine and ECT / Data List / Starter Signal.
    5. Check the result when the ignition switch is turned ON and when the engine is started.

      OK

      RESULT REFERENCE

      Display (STARTER SIG) Condition
      OFF Ignition switch ON
      ON Engine start

    OK:  Go to step  6

    NG: Go to next step.

  3. CHECK ECM (STAR AND STSW VOLTAGE)
    1. Measure the voltage between the terminals of the ECM connector and body ground while cranking the engine.

      Standard voltage

      VOLTAGE SPECIFICATIONS

      Tester Connection Specified Condition
      NSW (E10-8) - Body ground 9 to 14 V
      STSW (E11-12) - Body ground 9 to 14 V
      Fig 1: Identifying E10 And E11 Connector Terminal
      G05675716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Terminal STAR Terminal STSW Proceed to
      9 to 14 V 9 to 14 V A
      0 V 9 to 14 V B
      0 V 0 V C

    B: REPLACE ECM

    C:  Go to step  13

    A: Go to next step.

  4. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the Park/Neutral Position (PNP) switch.
      1. Disconnect the P1 PNP switch connector.
        2. Fig 2: Identifying P1 PNP Switch Connector
        G05136142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Measure the resistance according to the value (s) in the table below.

        Standard resistance

        RESISTANCE SPECIFIED CONDITIONS

        Shift Position Tester Connection Specified Condition
        P 2 - 6, 4 - 5 Below 1 Ω
        R 1 - 2 Below 1 Ω
        N 2 - 9, 4 - 5 Below 1 Ω
        D 2 - 7 Below 1 Ω
        2 2 - 3 Below 1 Ω
        L 2 - 8 Below 1 Ω
      3. Reconnect the PNP switch connector.

    NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    OK: Go to next step.

  5. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - PARK/NEUTRAL POSITION SWITCH)
    1. Disconnect the I15 ignition switch connector.

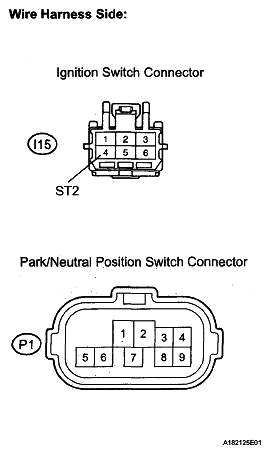

      2. Fig 3: Identifying I15 Ignition Switch Connector
      G05675718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the P1 park/neutral position switch connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (check for open)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      ST2 (I15-4) - P1-4 Below 1 Ω

      Standard resistance (check for short)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      ST2 (I15-4) or P1-4 - Body ground 10 kΩ or higher
    4. Reconnect the ignition switch connector.
    5. Reconnect the park/neutral position switch connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - PARK/NEUTRAL POSITION SWITCH)

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)

  6. INSPECT ST RELAY
    1. Remove the ST relay from the No. 3 relay block.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω
      (Apply battery voltage between terminals 1 and 2)
      Fig 4: Identifying Relay Circuit With Terminal
      G04942983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reinstall the ST relay to the No. 3 relay block.

    NG: REPLACE ST RELAY

    OK: Go to next step.

  7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ST RELAY)
    1. Disconnect the P1 park/neutral position switch connector.

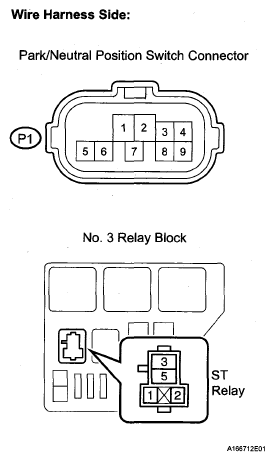

      2. Fig 5: Identifying Park/Neutral Position Switch Connector
      G05136313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the ST relay from the No. 3 relay block.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (check for open)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      P1-5-ST relay terminal (1) Below 1 Ω

      Standard resistance (check for short)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      P1-5 or ST relay terminal (1) - Body ground 10 kΩ or higher
    4. Reconnect the park/neutral position switch connector.
    5. Reinstall the ST relay to the No. 3 relay block.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ST RELAY)

    OK: Go to next step.

  8. CHECK HARNESS AND CONNECTOR (ST RELAY - BODY GROUND)
    1. Remove the ST relay from the No. 3 relay block.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      ST relay terminal (2) - Body ground Below 1 Ω
    3. Reinstall the ST relay to the No. 3 relay block.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - BODY GROUND)

    OK: Go to next step.

    Fig 6: Identifying ST Relay To No. 3 Relay Block
    G05136314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CHECK ST RELAY (POWER SOURCE)
    1. Remove the ST relay from the No. 3 relay block.
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATIONS

      Tester Connection Specified Condition
      ST relay terminal (5) - Body ground 9 to 14 V
    3. Reinstall the ST relay to the No. 3 relay block.

    OK:  Go to step  11

    Fig 7: Identifying ST Relay To No. 3 Relay Block
    G05136314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to next step.

  10. INSPECT FUSIBLE LINK
    1. Remove the fusible link block from the engine room junction block.
      2. Fig 8: Identifying Engine Room Junction Block
      G05136316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      Fusible link Below 1 Ω
    3. Reinstall the fusible link block to the engine room junction block.

    NG: REPLACE FUSIBLE LINK

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER RELAY)

  11. INSPECT STARTER ASSEMBLY
    1. Inspect the starter assembly (See DISASSEMBLY ).

    NG: REPLACE STARTER ASSEMBLY

    OK: Go to next step.

  12. CHECK HARNESS AND CONNECTOR (ST RELAY - STARTER ASSEMBLY)
    1. Remove the ST relay from the No. 3 relay block.
    2. Disconnect the S4 starter connector.

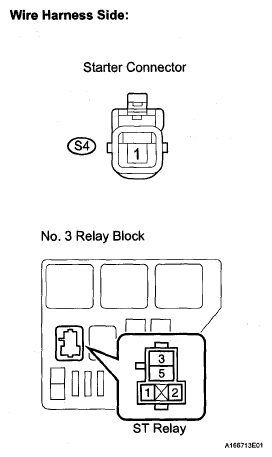

      3. Fig 9: Identifying S4 Starter Connector
      G05136317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (check for open)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      ST relay terminal (3) - S4-1 Below 1 Ω

      Standard resistance (check for short)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      ST relay terminal (3) or S4-1 - Body ground 10 kΩ or higher
    4. Reconnect the starter connector.
    5. Reinstall the ST relay to the No. 3 relay block.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - STARTER ASSEMBLY)

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER ASSEMBLY)

  13. INSPECT FUSE (ST FUSE)
    1. Remove the ST fuse from the fuse box.
      2. Fig 10: Identifying ST Fuse Of Fuse Box
      G05136318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      1 - 2 Below 1 Ω
    3. Reinstall the ST fuse.

    NG: REPLACE FUSE (ST FUSE)

    OK: Go to next step.

  14. INSPECT IGNITION SWITCH ASSEMBLY
    1. Disconnect the I15 ignition switch connector.
      2. Fig 11: Identifying I15 Ignition Switch Connector
      G05136143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Switch Condition Tester Connection Specified Condition
      LOCK All terminals 10 kΩ or higher
      ACC 1 - 3 Below 1 Ω
      ON 1 - 2, 1 - 3, 2 - 3, 5 - 6 Below 1 Ω
      START 4 - 5, 4 - 6, 5 - 6, 1 - 2 Below 1 Ω
    3. Reconnect the ignition switch connector.

    NG: REPLACE IGNITION SWITCH ASSEMBLY

    OK: Go to next step.

  15. CHECK HARNESS AND CONNECTOR (ECM - IGNITION SWITCH ASSEMBLY)
    1. Disconnect the E11 ECM connector.
    2. Disconnect the I15 ignition switch connector.

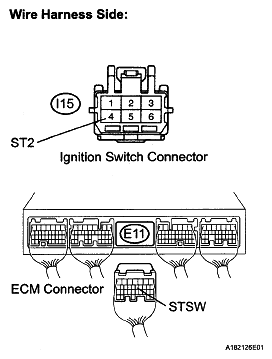

      3. Fig 12: Identifying I15 Ignition Switch Connector
      G05675727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (check for open)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      STSW (E11-12) - ST2 (I15-4) Below 1 Ω

      Standard resistance (check for short)

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      STSW (E11-12) or ST2 (I15-4) - Body ground 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the ignition switch connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - IGNITION SWITCH ASSEMBLY)

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - BATTERY)
