Inspection Procedure

WARNING: This page is about a different car, the 2009 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STEREO COMPONENT AMPLIFIER

Disconnect the stereo component amplifier connectors.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
E102-6 (GND) - Body ground	Always	Below 1 Ω
E102-7 (GND2) - Body ground	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard Voltage

VOLTAGE SPECIFICATION

Tester Connection	Condition	Specified Condition
E101-1 (+B) - E102-6 (GND)	Always	11 to 14 V
E101-5 (+B2) - E102-6 (GND)	Always	11 to 14 V
E100-12 (ACC) - E102-6 (GND)	Ignition switch ACC	11 to 14 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

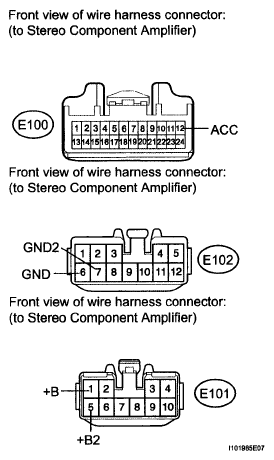

Fig 1: Identifying Stereo Component Amplifier Connector Terminals

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
