Active Control Engine Mount System: Wiring Diagram

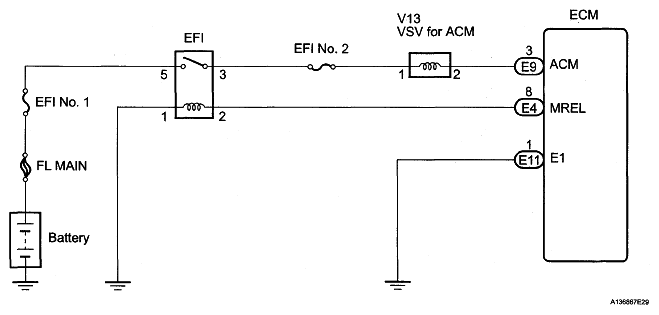

Fig 1: VSV, ACM And ECM - Wiring Diagram
G05675639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
