Engine Oil Cooler: Components

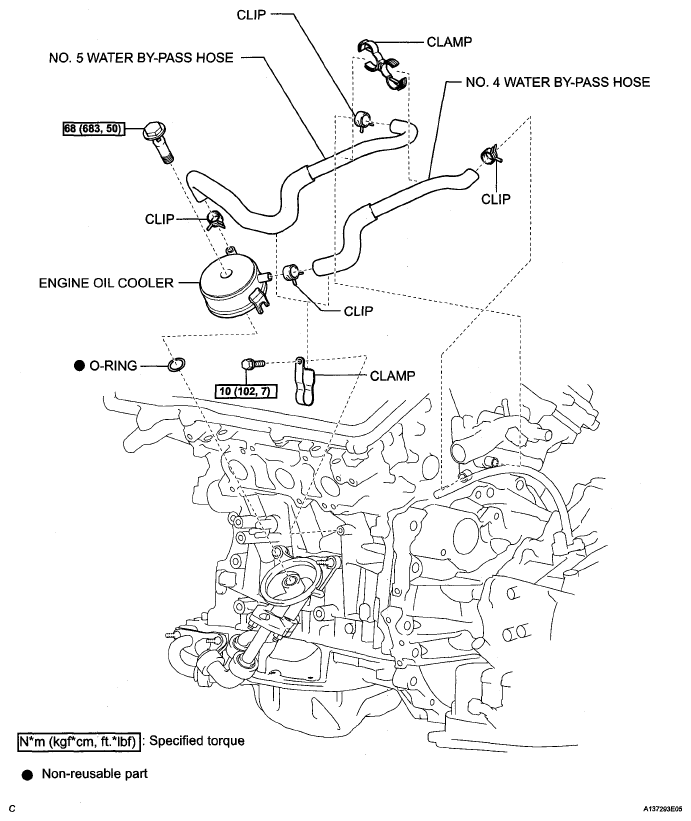

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications
G05139997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
