DTC U0073/94 Control Module Communication Bus OFF: DTC U0100/65 Lost Communication with ECM/PCM: DTC U0123/62 Lost Communication with Yaw Rate Sensor Module: DTC U0124/95 Lost Communication with Lateral Acceleration Sensor Module: DTC U0126/63 Lost Communication with Steering Angle Sensor Module: Wiring Diagram

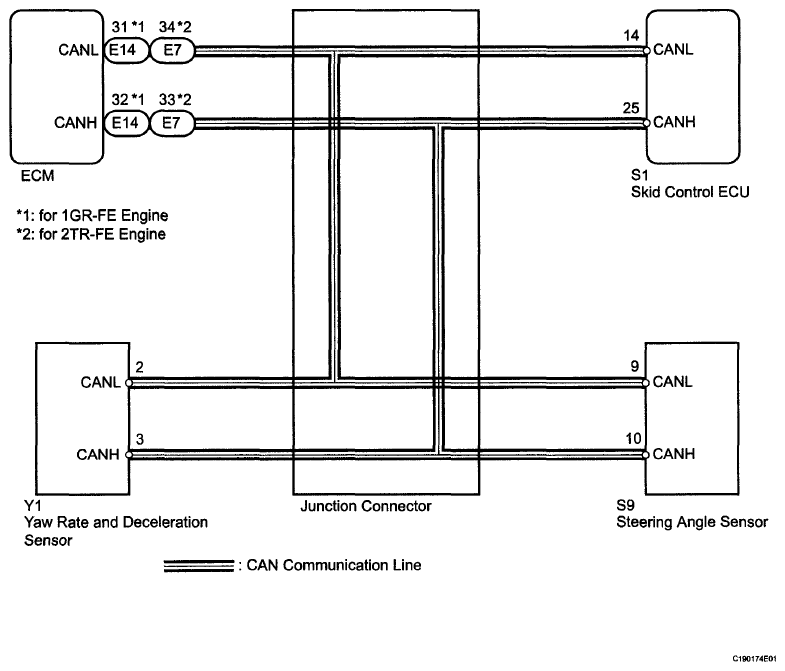

Fig 1: Steering Angle Sensor And Junction Connector - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
