Engine Control System (1GR-FE): ECM: Installation

INSTALL ECM BRACKET
1. Install the ECM bracket with the 2 screws.
  Torque: 3.0 N*m (32 kgf*cm, 28 in.*lbf)

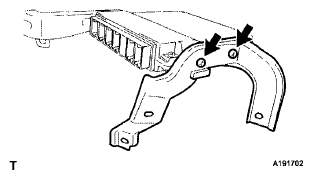

  Fig 1: Locating ECM Bracket With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket with the 2 screws.
  Torque: 3.0 N*m (32 kgf*cm, 28 in.*lbf)

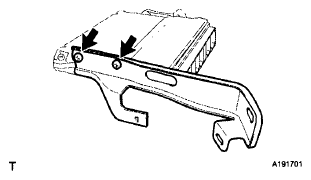

  Fig 2: Locating No. 2 ECM Bracket With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 JUNCTION BLOCK
1. Engage the claw and install the No. 2 junction block.
2. Install the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

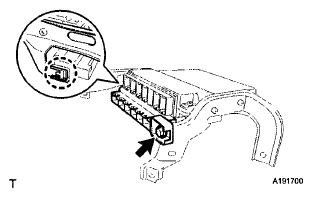

  Fig 3: Locating No. 2 Junction Block Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM
1. Install the ECM with the nut and 2 bolts
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

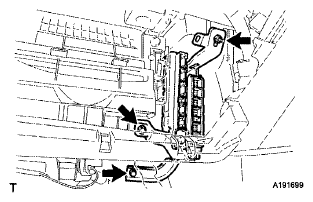

  Fig 4: Locating ECM With Nut And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 6 No. 2 junction block connectors, 6 ECM connectors and wire harness clamp.
INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH (See INSTALLATION )
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )

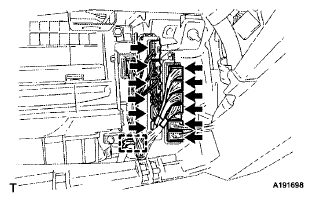

Fig 5: Locating ECM Connectors And Wire Harness Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
