Monitor Result
Detailed information on Checking Monitor Status (See
CHECKING MONITOR STATUS
).

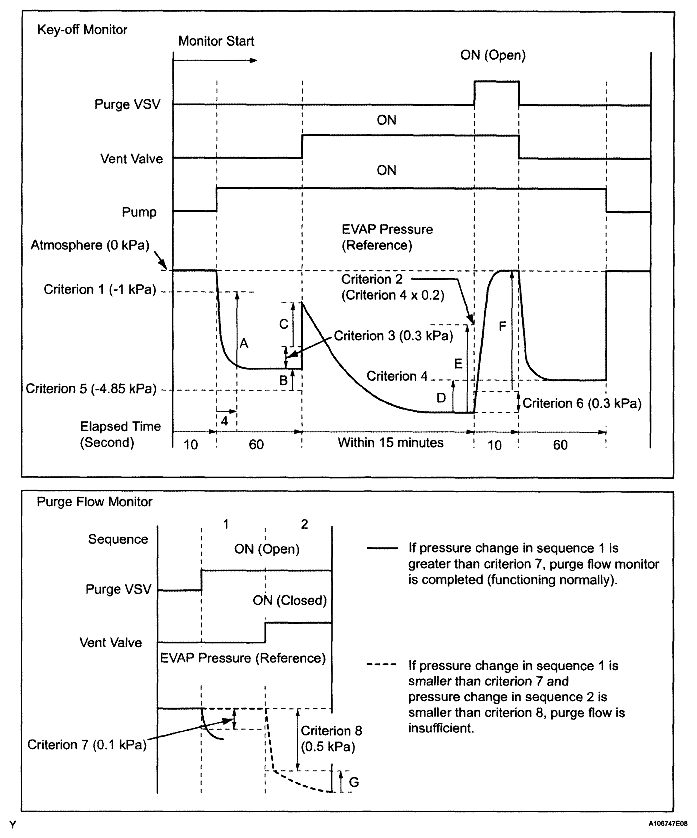

Fig 1: Key-Off Monitor Graph
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
