Fuel Tank: Components

Fig 1: Fuel Pump Replacement Components (1 Of 2) With Torque Specifications
G06088531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

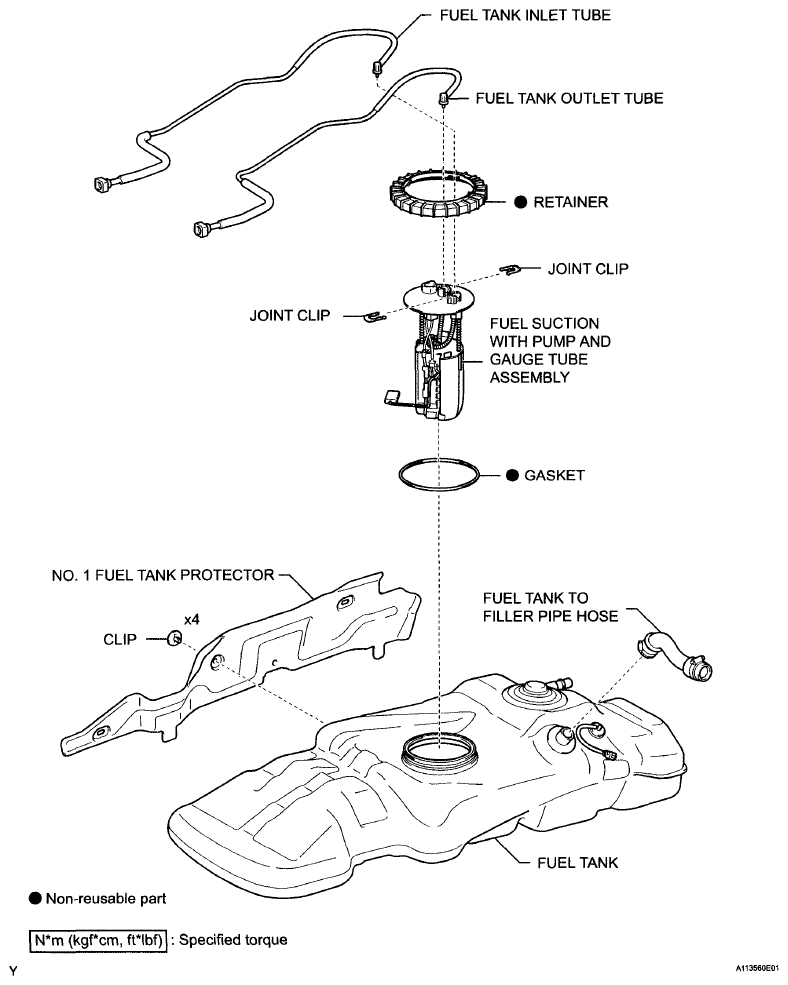

Fig 2: Identifying Fuel Tank Components (2 Of 2)
G06088545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
