Freeze Frame Data
- DESCRIPTION
Freeze frame data records the engine conditions (fuel system, calculated load, engine coolant temperature, fuel trim, engine speed, vehicle speed, etc.) when a malfunction is detected. When troubleshooting, it can help determine if the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was Lean or Rich, and other data from the time the malfunction occurred.
HINT:
If it is impossible to duplicate the problem even though a DTC is detected, confirm the freeze frame data.

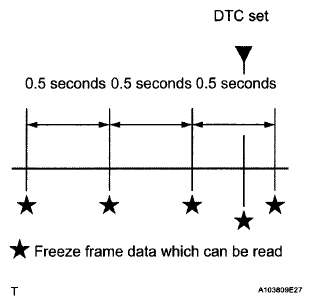

The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the Techstream, 5 separate sets of freeze frame data can be checked.
- 3 data sets before the DTC was set.
- 1 data set when the DTC was set.
- 1 data set after the DTC was set.
These data sets can be used to simulate the condition of the vehicle around the time of the occurrence of the malfunction. The data may assist in identifying the cause of the malfunction, and in judging whether it was temporary or not.
- LIST OF FREEZE FRAME DATA DIAGNOSTIC NOTE
LABEL (Tester Display) Measurement Item Diagnostic Note Vehicle Speed Vehicle speed Speed indicated on speedometer Engine Speed Engine speed - Calculate Load Calculated load Calculated load by ECM Vehicle Load Vehicle load - MAF Mass air flow volume If approximately 0.0 g/sec: - Mass air flow meter power source circuit open or short
- VG circuit open or short
If 160.0 g/sec. or more:- E2G circuit open
Atmosphere Pressure Atmosphere pressure - Coolant Temp Engine coolant temperature If value -40°C (-40°F), sensor circuit open
If value 140°C (284°F) or more, sensor circuit shortedIntake Air Intake air temperature If value -40°C (-40°F), sensor circuit open
If value 140°C (284°F) or more, sensor circuit shortedEngine Run Time Accumulated engine running time - Initial Engine Coolant Temp Initial engine coolant temperature - Initial Intake Air Temp Initial intake air temperature - Battery Voltage Battery voltage - Accel Sens. No. 1 Volt % Absolute Accelerator Pedal Position (APP) No. 1 - Accel Sens. No. 2 Volt % Absolute APP No. 2 - Throttle Sensor Volt % Throttle sensor positioning - Throttl Sensor #2 Volt % Absolute throttle sensor positioning #2 - Throttle Sensor Position Throttle position - Throttle Motor DUTY Throttle actuator duty - Injector (Port) Injection period of No. 1 cylinder - Injection Volum (Cylinder 1) Injection volume - Fuel Pump/Speed Status Fuel pump/speed status - Vacuum Pump Key-off EVAP system leak detection pump status Refer to EVAP SYSTEM EVAP (Purge) VSV EVAP purge VSV duty ratio - Evap Purge Flow Ratio of evaporative purge flow to intake air volume - Purge Density Learn Value Learning value of purge density - EVAP System Vent Value Key-off EVAP system vent valve status - EVAP Purge VSV EVAP Purge VSV - Target Air-Fuel Ratio Ratio compared to stoichiometric level - AF Lambda B1S1 Fuel trim at A/F sensor - AF Lambda B2S1 Fuel trim at A/F sensor - AFS Voltage B1S1 A/F sensor output voltage Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor AFS Voltage B2S1 A/F sensor output voltage Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor AFS Current B1S1 A/F sensor current - AFS Current B2S1 A/F sensor current - O2S B1S2 Heated oxygen sensor output voltage Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor O2S B2S2 Heated oxygen sensor output voltage Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor O2S Impedance B1S2 Sub heated oxygen sensor impedance (bank 1 sensor 2) - O2S Impedance B2S2 Sub heated oxygen sensor impedance (bank 2 sensor 2) - Short FT #1 Short-term fuel trim Short-term fuel compensation used to maintain air-fuel ratio at stoichiometric air-fuel ratio Long FT #1 Long-term fuel trim Overall fuel compensation carried out in long-term to compensate a continual deviation of short-term fuel trim from central valve Total FT #1 Total fuel trim (bank 1) - Short FT #2 Short-term fuel trim Short-term fuel compensation used to maintain air-fuel ratio at stoichiometric air-fuel ratio Long FT #2 Long-term fuel trim Overall fuel compensation carried out in long-term to compensate a continual deviation of short-term fuel trim from central valve Total FT #2 Total fuel trim (bank 2) - Fuel System Status #1 Fuel system status (bank 1) - OL (Open Loop): Has not yet satisfied conditions to go closed loop
- CL (Closed Loop): Using heated oxygen sensor as feedback for fuel control
- OLDrive: Open loop due to driving conditions (fuel enrichment)
- OLFault: Open loop due to detected system fault
- CLFault: Closed loop but heated oxygen sensor, which used for fuel control, malfunctioning
Fuel System Status #2 Fuel system status (bank 2) - OL (Open Loop): Has not yet satisfied conditions to go closed loop
- CL (Closed Loop): Using heated oxygen sensor as feedback for fuel control
- OLDrive: Open loop due to driving conditions (fuel enrichment)
- OLFault: Open loop due to detected system fault
- CLFault: Closed loop but heated oxygen sensor, which used for fuel control, malfunctioning
Air pump pressure (absolute) Air pump pressure (absolute) - Air Pump 2 Pressure (Absolute) Air pump 2 pressure (absolute) - Air Pump Pulsation Pressure Air pump pulsation pressure - Air Pump 2 Pulsation Pressure Air pump 2 pulsation pressure - Secondary Air Control VSV Secondary air injection system status - 2nd Air System Status Second air system status - Al Test Secondary air injection system operation prohibit - IGN Advance Ignition advance - Knock Feedback Value Feedback value of knocking - Knock Correct Learn Value Correction learning value of knocking - ACIS VSV VSV for Acoustic Control Induction System (ACIS) - VVT Control Status #1 VVT control status - VVT Control Status #2 VVT control status - Catalyst Temp B1S1 Estimated catalyst temperature (bank 1 sensor 1) - Catalyst Temp B2S1 Estimated catalyst temperature (bank 2 sensor 1) - Catalyst Temp B1S2 Estimated catalyst temperature (bank 1 sensor 2) - Catalyst Temp B2S2 Estimated catalyst temperature (bank 2 sensor 2) - Starter Signal Starter switch signal - Starter Control Starter switch status - Power Steering Signal Record Power steering switch status - Starter Relay Starter relay status - Power Steer. Sig. Record Power steering signal (history) - ACC Relay ACC relay status - Neutral Position SW Signal Park/Neutral position (PNP) switch signal - Stop Light Switch Stop light switch - A/C Signal A/C signal - Closed Throttle Position SW Closed throttle position switch - Fuel Cut Condition Fuel cut condition - Electrical Load Signal Electrical load signal - Time after DTC Cleared Cumulative time after DTC cleared - Distance from DTC Cleared Accumulated distance from DTC cleared - Warmup Cycle Cleared DTC Warm-up cycle after DTC cleared - TC and TE1 TC and CG (TE1) terminals of DLC3 - Ignition Trig. Count Ignition counter - Cylinder #1 Misfire Count Cylinder #1 misfire Only displayed during idling Cylinder #2 Misfire Count Cylinder #2 misfire Only displayed during idling Cylinder #3 Misfire Count Cylinder #3 misfire Only displayed during idling Cylinder #4 Misfire Count Cylinder #4 misfire Only displayed during idling Cylinder #5 Misfire Count Cylinder #5 misfire Only displayed during idling Cylinder #6 Misfire Count Cylinder #6 misfire Only displayed during idling All Cylinders Misfire Count All cylinders misfire Only displayed during idling Misfire RPM Engine speed when misfire occurred - Misfire Load Engine load when misfire occurred - Misfire Margin Margin to detect engine misfire - Catalyst OT MF F/C Catalyst over temperature Misfire prevention fuel cut - Cat OT MF F/C History Catalyst over temperature Misfire prevention fuel cut history: - Cat OT MF F/C Cylinder#1 Display of fuel cut operation in No. 1 cylinder (if certain level of misfire malfunction is detected) - Cat OT MF F/C Cylinder#2 Display of fuel cut operation in No. 2 cylinder (if certain level of misfire malfunction is detected) - Cat OT MF F/C Cylinder#3 Display of fuel cut operation in No. 3 cylinder (if certain level of misfire malfunction is detected) - Cat OT MF F/C Cylinder#4 Display of fuel cut operation in No. 4 cylinder (if certain level of misfire malfunction is detected) - Cat OT MF F/C Cylinder#5 Display of fuel cut operation in No. 5 cylinder (if certain level of misfire malfunction is detected) - Cat OT MF F/C Cylinder#6 Display of fuel cut operation in No. 6 cylinder (if certain level of misfire malfunction is detected) - ACT VSV A/C cut status for Active Test - Idle Fuel Cut Fuel cut idle ON: when throttle valve fully closed and engine speed over 3500 rpm FC TAU Fuel cut during very light load Fuel cut being performed under very light load to prevent engine combustion from becoming incomplete SPD (NT) Input shaft speed Data is displayed in increments of 50 rpm. SPD (SP2) Output shaft speed -
