DTC C0273/13 Open in ABS Motor Relay Circuit; DTC C1251/51 Open in Pump Motor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

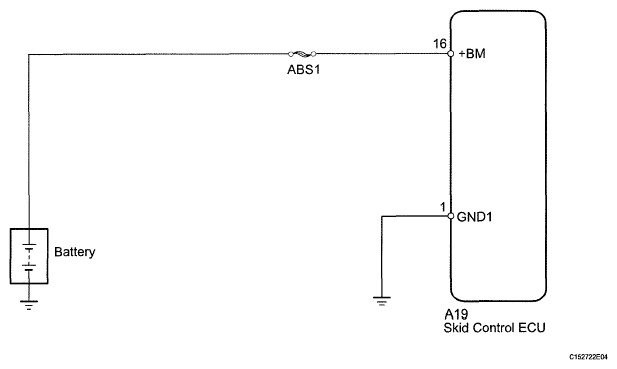

Fig 1: Skid Control ECU And Battery Diagram
