DTC C0278/11 Open or Short Circuit in ABS Solenoid Relay Circuit: Wiring Diagram
WARNING:
This page is about a different car, the 2009 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

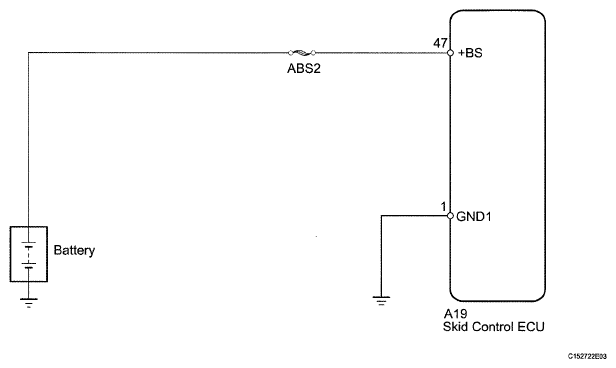

Fig 1: Skid Control ECU And Battery Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
