DTC C1439/66 Steering Angle Sensor Initialization Imcomplete; DTC C1445/66 Vehicle Driven with Steering Angle Sensor not Initialized: Wiring Diagram

WARNING: This page is about a different car, the 2009 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

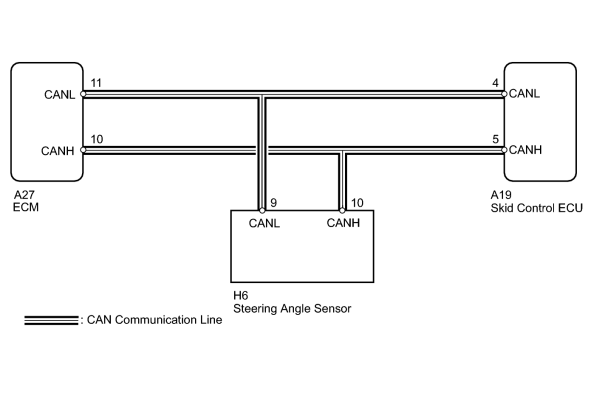

Fig 1: Skid Control ECU And Steering Angle Sensor - Wiring Diagram

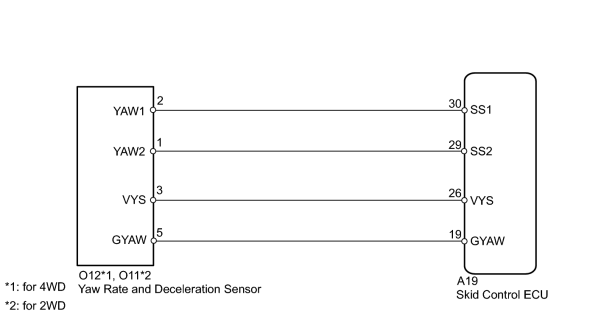

Fig 2: Skid Control ECU And Yaw Rate & Deceleration Sensor - Wiring Diagram
