Knock Sensor, Intake Manifold: Components

WARNING: This page is about a different car, the 2009 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

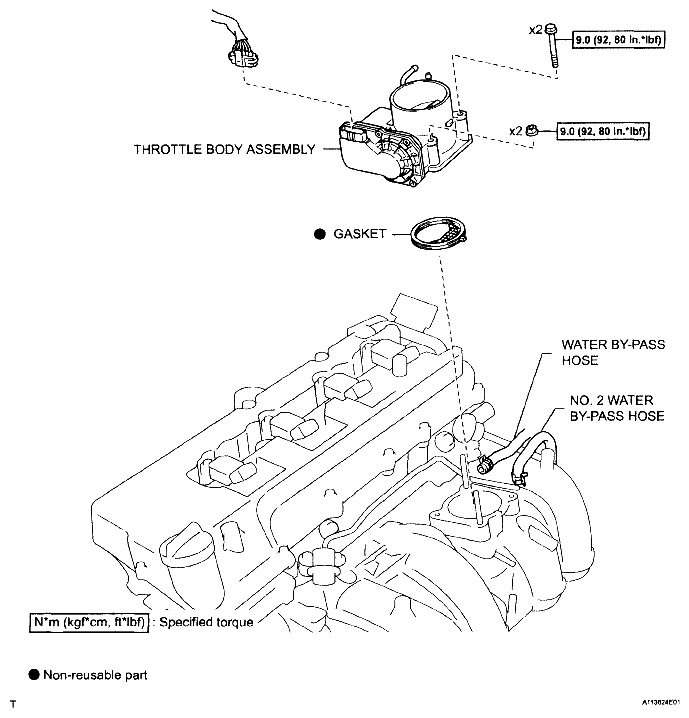

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

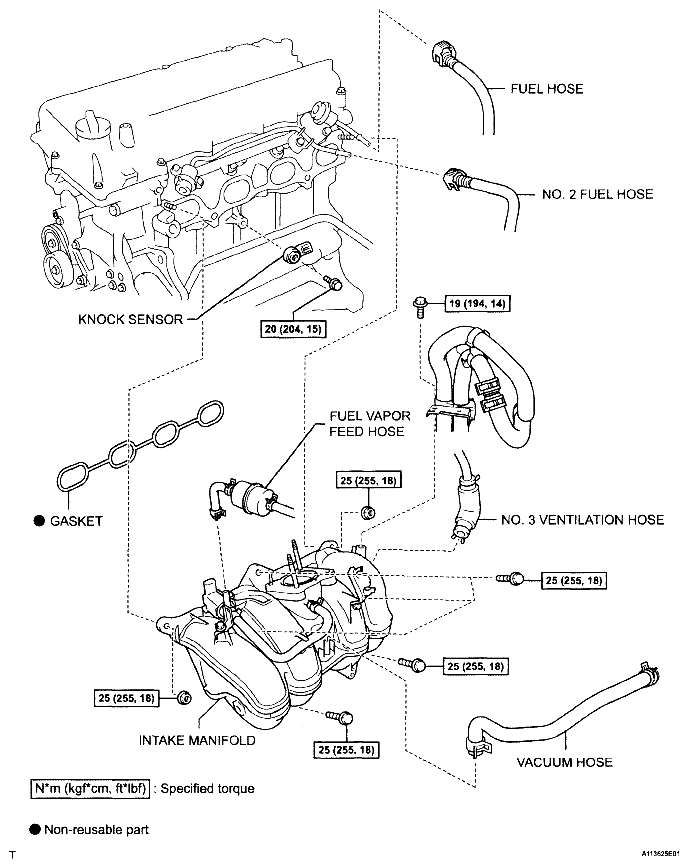

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 3)

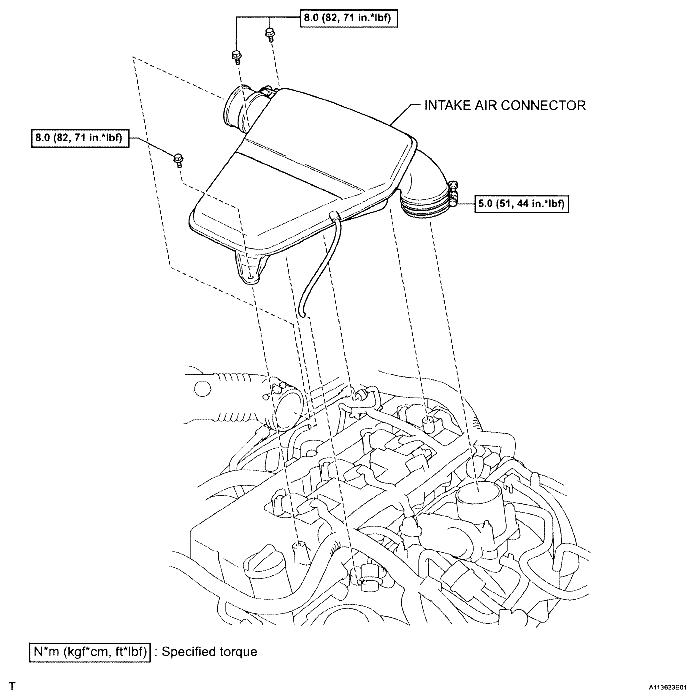

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 3)
