Knock Sensor, Intake Manifold: Installation

WARNING: This page is about a different car, the 2009 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL KNOCK CONTROL SENSOR
    1. Install the knock control sensor with the bolt.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      NOTE: Make sure that the knock sensor is at the correct angle when installing.
    2. Connect the knock control sensor connector.
      Fig 1: Identifying Knock Control Sensor Bolt Angle
      G05198437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE MANIFOLD
    1. Install a new gasket onto the intake manifold.
    2. Install the intake manifold with the 5 bolts and 2 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      Fig 2: Locating Bolts, Nuts And Intake Manifold
      G05198434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the engine wire harness to the relay block.
    4. Install the nut shown in the illustration.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Connect the 3 connectors.

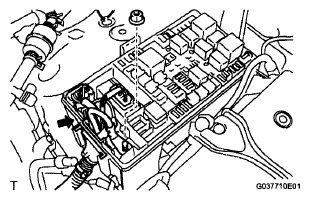

      Fig 3: Identifying Relay Block And Nut
      G06080706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the harness clamp bracket with the bolt.

      Torque: 8.2 N*m (84 kgf*cm, 73 in.*lbf)

    7. Engage the wire harness clamp.
    8. Connect the compressor magnetic clutch connector. (w/AIR CONDITIONING)
    9. Engage the engine wire harness clamp.
    10. Connect the VSV connector.
      Fig 4: Locating Bolt And Harness Clamp Bracket
      G05198432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the ventilation hose No. 3.
      Fig 5: Locating Ventilation Hose No. 3
      G05198431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Connect the water by-pass hose No. 2.
      Fig 6: Locating Water By-Pass Hose No. 2
      G05198430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Install the clamp bracket with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 in.*lbf)

      Fig 7: Locating Bolt And Clamp Bracket
      G05198429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Connect the vacuum hose.
      Fig 8: Locating Vacuum Hose
      G05198428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    15. Connect the fuel vapor feed hose to the VSV.
  3. CONNECT FUEL HOSE  (See INSTALLATION )
  4. CONNECT FUEL HOSE NO.2  (See INSTALLATION )
  5. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY  (See INSTALLATION  )
  6. INSTALL INTAKE AIR CONNECTOR  (See INSTALLATION  )
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    Fig 9: Locating Fuel Vapor Feed Hose
    G05198427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

  8. ADD ENGINE COOLANT  (See COOLANT )
  9. CHECK FOR ENGINE COOLANT LEAKAGE  (See ON-VEHICLE INSPECTION )
  10. CHECK FOR FUEL LEAKAGE
  11. INSTALL ENGINE UNDER COVER SUB-ASSEMBLY NO.1 (for 4WD and Pre-Runner)
