DTC P0100 Mass or Volume Air Flow Circuit; DTC P0102 Mass or Volume Air Flow Circuit Low Input; DTC P0103 Mass or Volume Air Flow Circuit High Input: Description

WARNING: This page is about a different car, the 2009 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

The Mass Air Flow (MAF) meter is a sensor that measures the amount of air flowing through the throttle valve.

The ECM uses this information to determine the fuel injection time and to provide appropriate air-fuel ratio. Inside the MAF meter, there is a heated platinum wire which is exposed to the flow of intake air. By applying a specific electrical current to the wire, the ECM heats it to a given temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to these components in the MAF meter. The voltage level is proportional to the airflow through the sensor, and the ECM uses it to calculate the intake air volume.

The circuit is constructed so that the platinum hot wire and the temperature sensor provide a bridge circuit, and the power transistor is controlled so that the potentials of A and B remain equal to maintain the predetermined temperature.

HINT:

When any of these DTCs are set, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is calculated by the ECM, according to the engine RPM and throttle valve position. Fail-safe mode continues until a pass condition is detected.

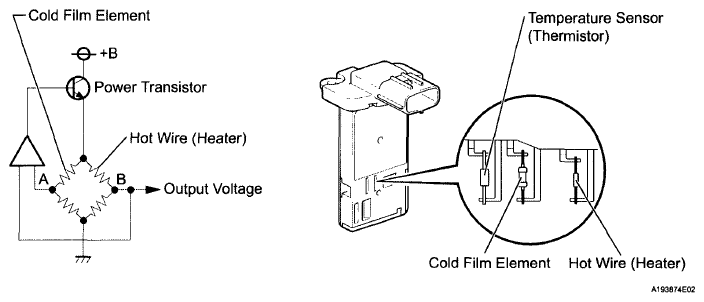

Fig 1: Mass Air Flow (MAF) Meter Circuit Diagram
G06080319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITIONS CHART

DTC No. DTC Detection Conditions Trouble Areas
P0100 Mass Air Flow (MAF) meter voltage less than 0.2 V, or more than 4.9 V for 3 seconds
  • Open or short in MAF meter circuit
  • MAF meter
  • ECM
P0102 Mass Air Flow (MAF) meter voltage less than 0.2 V for 3 seconds
  • Open or short in MAF meter circuit
  • MAF meter
  • ECM
P0103 Mass Air Flow (MAF) meter more than 4.9 V for 3 seconds
  • Open or short in MAF meter circuit
  • MAF meter
  • ECM

HINT:

When any of these DTCs are set, check the air-flow rate by selecting the following menu items on the Techstream: Powertrain/Engine and ECT/Data List/All Data/MAF.

MALFUNCTIONS CHART

Mass Air Flow Rate (g/sec) Malfunctions
Approximately 0.0
  • Open in Mass Air Flow (MAF) meter power source circuit
  • Open or short in VG circuit
271.0 or more
  • Open in EVG circuit
